86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	JK86HSN

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	US$200~US$320
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Model Number:	Nema 34 Closed Loop Stepper Motor Kits	Phase:	2
Current:	6.0A	Holding Torque:	4.6N.m - 13N.m
Resistance:	0.27Ω - 0.44Ω	Inductance:	2mH - 3.8mH
Detent Torque:	1.2kg.cm - 3.6kg.cm	Warranty:	12 Months
Number Of Leads:	4	Key Words:	3axis 4axis Stepper Motor Kits
High Light:	3 axis Cnc Closed Loop Motor , 86HSN Closed Loop Stepper Motor , Nema 34 3 axis cnc kit

86HSN 4.6N.m 12N.m 6A Software Adapter Board Closed Loop Stepper Motor 3axis Cnc Kit

The function of the stepper motor. Closed-loop stepper motor combines the advantages of stepper and servo motor technology. They run more smoothly, have lower resonance than stepper motors, provide position feedback and control, have short settling times, and show no step loss.

Electrical Specification of NEMA 34 closed loop stepper motor:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia
	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm²
JK86HSN45	1.8	78	6	0.27	2	4.6	4	1.2	1400
JK86HSN65	1.8	100	6	0.27	2.2	6.8	4	1.9	2200
JK86HSN85	1.8	115	6	0.36	3.8	8.5	4	2.4	2700
JK86HSN120	1.8	155	6	0.44	3.8	12.5	4	3.6	4000
Above only for representative products, products of special request can be made according to the customer request.

Nema34 Servo Motor Features:

Low heat (static, the current is almost zero, no heat).
Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the traditional stepping motor troubled low-frequency resonance has a very good resistance).
pplicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine /placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.
Large torque output in some cases can simplify the complexity of the machine.

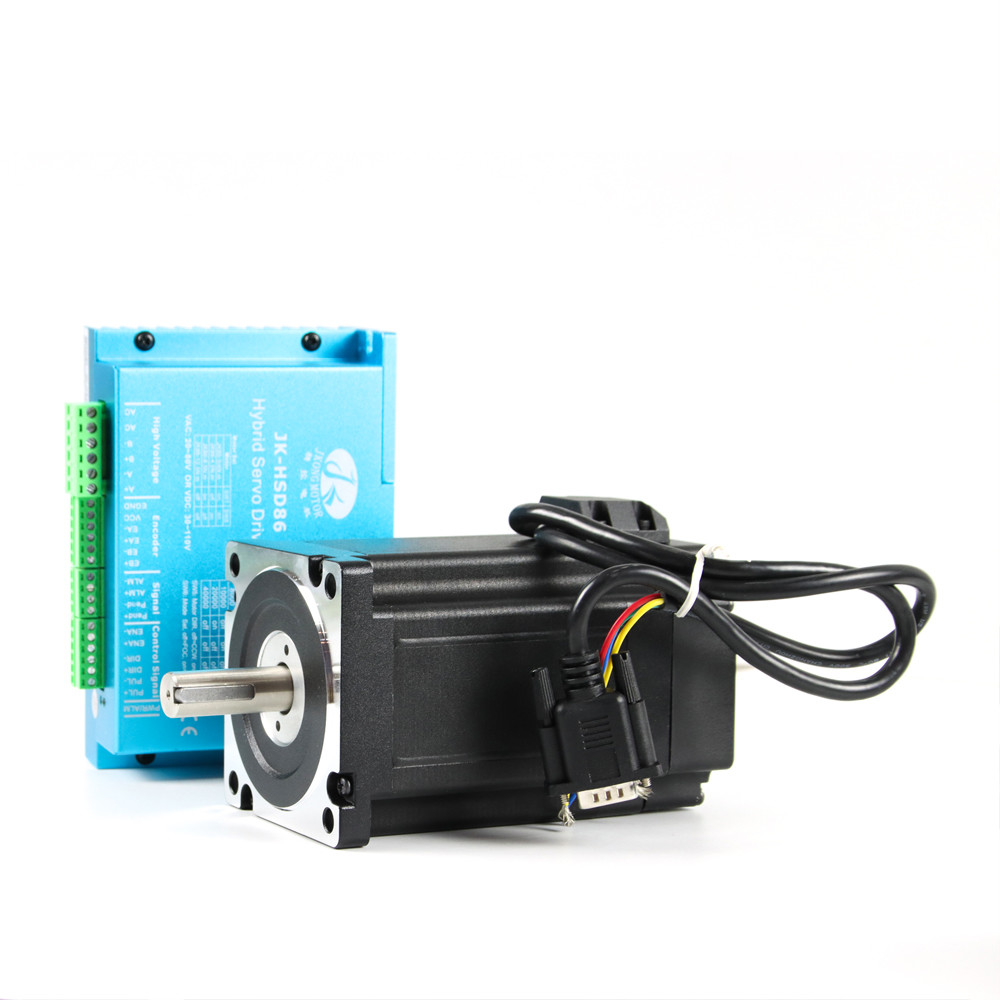

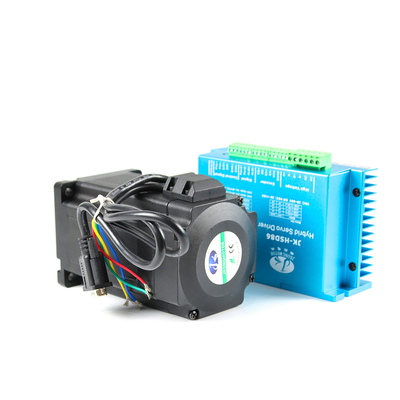

closed loop Stepper motor Driver: JK-HSD86

Parameter	Min	Typical	Max	Unit
Input Voltage (JK-HSD86)	20	36 48	50	VDC
Input Voltage (JK-HSD86C)	24	36 48	80	VDC
Input Voltage (SC8680C)	24VAC	60AC	80VAC 100VDC	VVDC
Output Current	0.1	-	10(Peak)	A
Pulse Input Frequency	0	-	200	kHz
Logic Signal Current	7	10	16	mA
Isolation Resistance	500	-	-	MΩ

Nema34 Servo Motor Driver Parameters:

Features
Input voltage	24~80VAC/24~110VDC
Output current	2.4~7.2A (PEAK)
Pulse frequency	0~100KHz
MicroSteps	16 MicroSteps
Using environment	-5~50℃,avoiddust,high teperatureand corrosive gas
Storage environment	-20~+80℃,avoid direct sunlight

Suitable Power Supply Parameters:

Power Supply Model	Input voltage	Ouput voltage	Power	Weight	Size
S-300-48	AC110V/220V	DC48V	300W	0.7kg	21511550mm
S-1000-48	AC110V/220V	DC48V	1000W	1.5kg	24524565mm
S-360-60	AC110V/220V	DC60V	360W	0.7kg	21511550mm
S-1200-60	AC110V/220V	DC60V	1200W	1.5kg	24524565mm

Power Supply Features:

This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.

You may receive:

1. 3Pcs Nema 34 Closed Loop Stepper Motor + 3Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
2. 3Pcs Nema 34 Closed Loop Stepper Motor + 1Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts

No.	Output Voltage	Motor Quantity	Supply Quantity	Driver	Other
1	48V	3pcs closed loop motor	3pcs ——300W	3pcs —— JK-HSD86	board + cable + usb
2	48V	3pcs closed loop motor	1pcs ——1000W	3pcs —— JK-HSD86
3	60V	3pcs closed loop motor	3pcs ——360W	3pcs —— JK-HSD86
4	60V	3pcs closed loop motor	1pcs ——1200W	3pcs —— JK-HSD86

closed loop stepper motor Drawing:

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit 1

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit 2

Product Details :

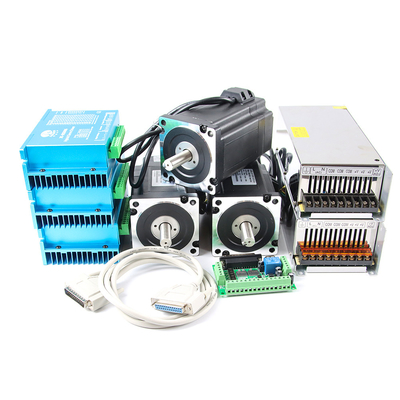

One set includes stepper motor and stepper driver with board + cable + USB with power supply

Warranty:

We offer one year warranty.
Within the warranty period, if your item has any problems when you use it, please send us an e-mail with photos or video to show the problem.
The replacement of the products for free are considerable due to it's own defects during warranty period.

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit 3

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit 4

86HSN 4.6N.M 6A Software Adapter Closed Loop Stepper Motor 3 Axis Cnc Kit 5
