80mm Round 0.28Nm 2500rpm 24v Bldc Brushless Electric Motor

80mm Round 0.28Nm 2500rpm 24v Bldc Brushless Electric Motor

  • 80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor
  • 80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor
  • 80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor
80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK80BLS01-16IE
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$49~US$55
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Nema: 80mm Round Bldc Motor Holding Torque: 0.28N.m
Motor Length: 91.5mm Number Of Phase: 3phase
Number Of Poles: 8 Rated Voltage: 24v
Rated Speed: 2500rpm Rated Power: 60w
Degree Of Protection: IP30
High Light:

2500rpm brushless electric motor

,

80mm permanent magnet brushless dc motor

,

24v permanent magnet brushless dc motor

80mm round 0.28N.m 2500rpm option with controller integrated bldc motors



An integrated low-speed and large-torque permanent magnet brushless DC torque motor, belonging to the technical field of low-voltage, low-speed and large-torque industrial motor applications. It includes position detection magnetic rings, support bearings, motor stators, motor rotors, hollow motor shafts, planetary gears, Outer ring gear, central sun gear.



It is characterized in that the central sun gear of the reducer is press-fitted and connected with the hollow motor shaft, and the central sun gear is directly driven to drive the planetary gear and the outer ring gear to perform proportional reduction and increase torque operation; The motor and the reducer are connected by a support bearing, and the reducer and the motor are made into an integrated machine; the hall signal board, the annular aluminum plate, and the position detection magnetic ring form the motor position signal acquisition part.



1.Production description:

Brand Name: Jkongmtor  Product Name:

    Bldc motor with

     integrated driver

Model Name:      JK80BLS01-16IE       Number of Poles:   4
Resistance/ Phase: 0.68ohms  Nominal Voltage: 24V
Speed: 2500 rpm Current: 0.8A
Rated Torque: 0.28N.m Rated Speed:  1950 rpm
Output Power: 60w Torque Constant:   0.09N.m/A
Back EMF constant: 9.6v/krpm Insulation Class: B
Size: 80x80mm Body Length:    91.5mm





  Model
Specification Unit JK80BLS01 JK80BLS02 JK80BLS03 JK80BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4
Rated Current Amps 3 5.5 8 10.5
Rated Power W 110 220 330 440
Peak Torque N.m 1.05 2.1 3.15 4.2
Peak Current Amps 9 16.5 24 31.5
Back E.M.F V/Krpm 13.5 13.3 13.1 13
Torque Constant N.m/A 0.13 0.127 0.126 0.124
Rotor Inertia g.c㎡ 210 420 630 840
Body Length mm 78 98 118 138
Weight Kg 1.4 2 2.6 3.2
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity 85% or under 85% RH(non condensing)
Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
Altitude 1000m or under 1000m



2.Product photos:

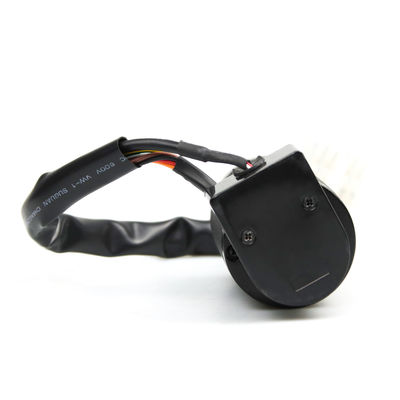

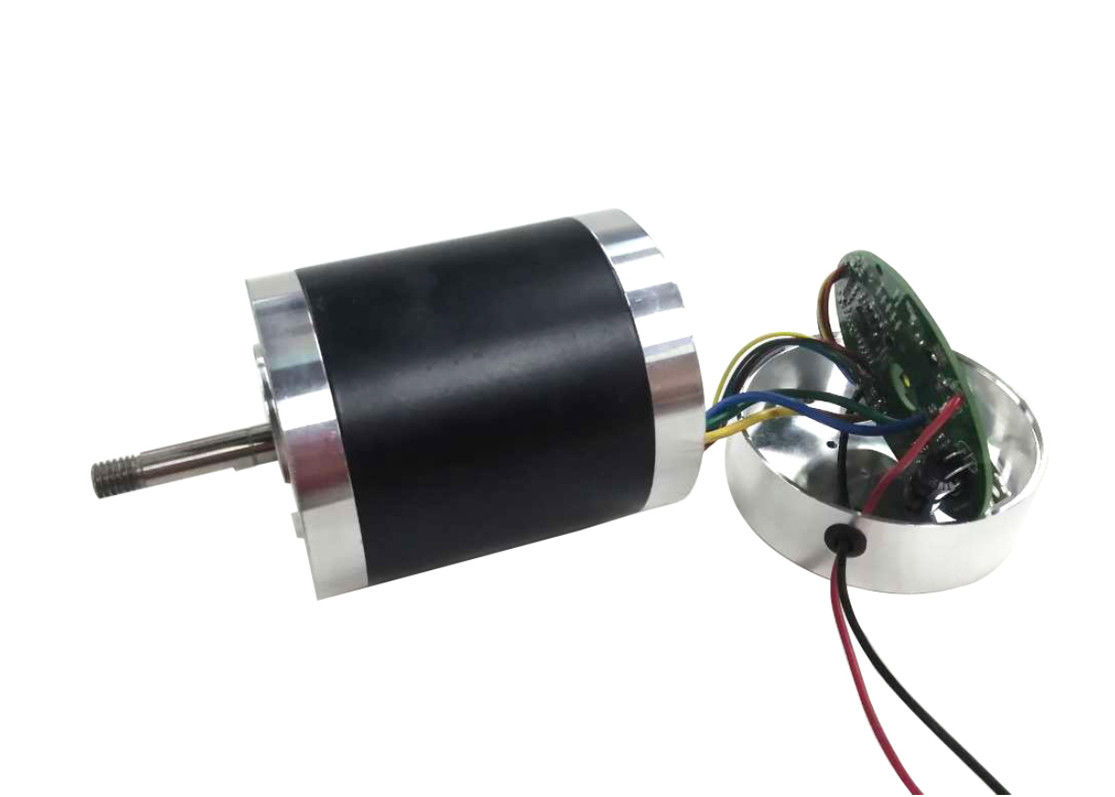

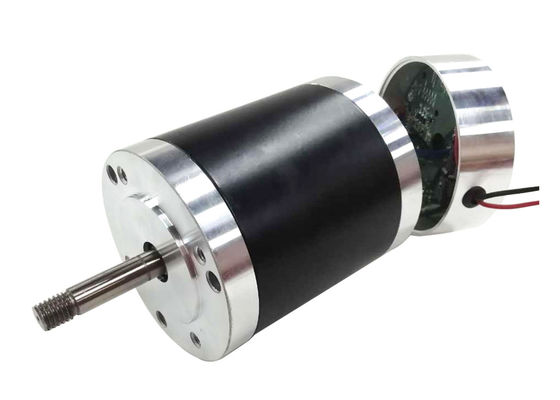

80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor 0

80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor 1



80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor 2

80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor 3

80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor 4

80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor 5

80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor 6

80mm Round 0.28Nm 2500rpm  24v Bldc Brushless Electric Motor 7

Applications Of brushless dc motor:
Our products are widely used in

  • 3d printers
  • CNC routers
  • Engraving Machines
  • Stage lighting control
  • Security surveillance
  • Video equipment
  • Laserworkstation
  • Carving machine
  • Office automation
  • Smart toy
  • Digital controlled machinery
  • Medical instrument
  • Other automatic equipment
