| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK110BLS100 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$118~US$158 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Nema: | 110mm Bldc Motor | Holding Torque: | 5N.m |
|---|---|---|---|
| Motor Length: | 180mm | Number Of Phase: | 3phase |
| Number Of Poles: | 8 | Rated Voltage: | 310v |
| Rated Speed: | 3000rpm | Rated Power: | 1570w |
| Matching Driver: | JKBLD2200 | Degree Of Protection: | IP30 |
| High Light: | 310v 1500 watt bldc motor,110mm automation bldc 1500w motor,8 Poles 1500 watt bldc motor |
||

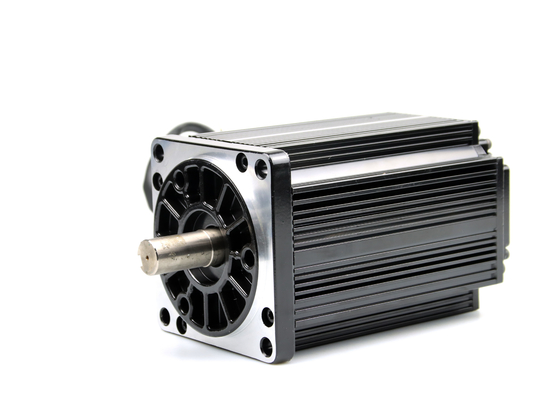

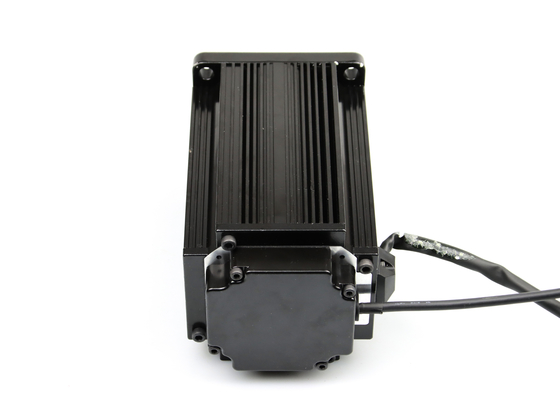

High power 1.5KW 5N.m 3000rpm 110mm BLDC motor Industrial automation BLDC motor
1.Specification of brushless dc motor:
Product Name: Brushless DC Motor
Model No.: JK110BLS100
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 310v / or customized 60v/ 110v/ 220v
Rated Speed: 3000rpm /or customized from 2000rpm ~ 10000rpm
Rated Torque: 5N.m
Rated Current: 5.6A
Rated Power: 1.57KW
Usage: This motor is used for Industrial automation, dust collecting systems. This motor is matched with Brushless DC driver JKBLD2200 and external display board BL01.
motores paso a pas

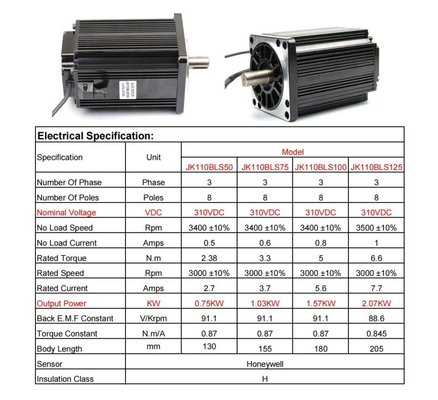

3.Electrical Specification of 86mm bldc motor:
| Model | ||
| Specification | Unit | JK110BLS100 |
| Number Of Phase | Phase | 3 |
| Number Of Poles | Poles | 8 |
| Rated Voltage | VDC | 310 |
| Rated Speed | Rpm | 3000 |
| Rated Torque | N.m | 5 |
| No Load Current | Amps | 0.8 |
| No Load Speed | Rpm | 3400 |
| Output Power | W | 1570 |
| Back E.M.F | V/Krpm | 91.1 |
| Torque Constant | N.m/A | 0.87 |
| Insulation Class | B | |

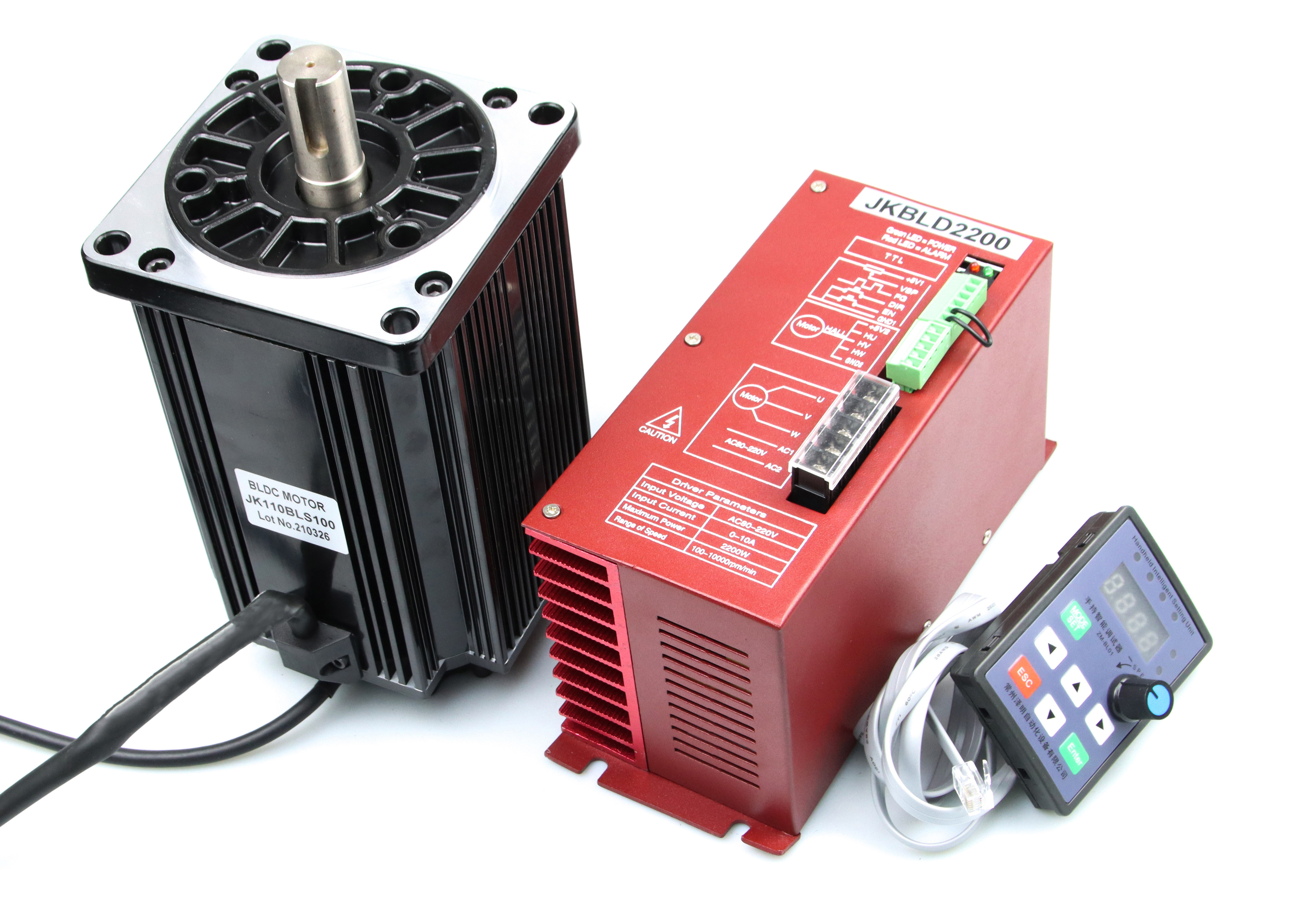

4.The matching bldc Driver: JKBLD2200
5.Dimensions of dc brushed motor: (Unit=mm)
6.Produce equipment:
7.Production Process:
8.Customized of brushless electric motor 220w:
Advantages of round bldc motor 3000rpm:
Speed Stability
Hall-effect sensors built in the BLDC motor detect the change in polarity from an N pole to an S pole as the rotor is spinning. Based on the time between state changes, the rotor's speed is determined. This information is then fed to the drive circuit to adjust the speed of the switching sequence.
High Speed Operation
Brushed and brushless DC systems provide flat torque over a wide speed range while AC motors often lose torque as speed increases.
