| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK86BLS98 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $48 - 70 / Pieces | 1 Piece/Pieces (Min. Order) |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 30000PCS/MONTH |
| Torque: | 2.1N.m | Speed: | 3000rpm |
|---|---|---|---|
| Rated Current: | 18A | Output Power: | 660W |
| Voltage: | 48V -310V | Rotor Inertia: | 2400g.cm2 |
| Matched With: | Bldc Driver JKBLD750 | Match With: | Worm Gearbox RV50 |
| High Light: | battery operated brushless DC Motor,2400g.cm2 brushless DC Motor,1.4Nm brushless dc electric motor |
||
Product Description:

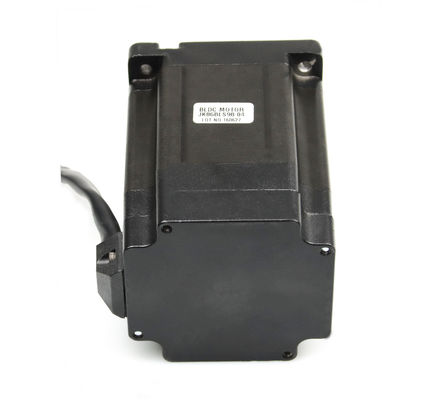

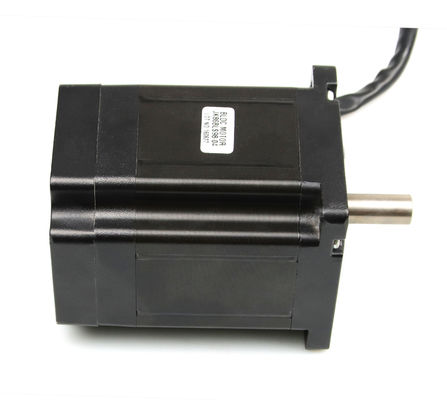

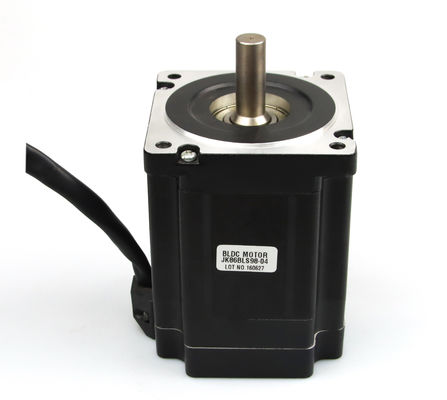

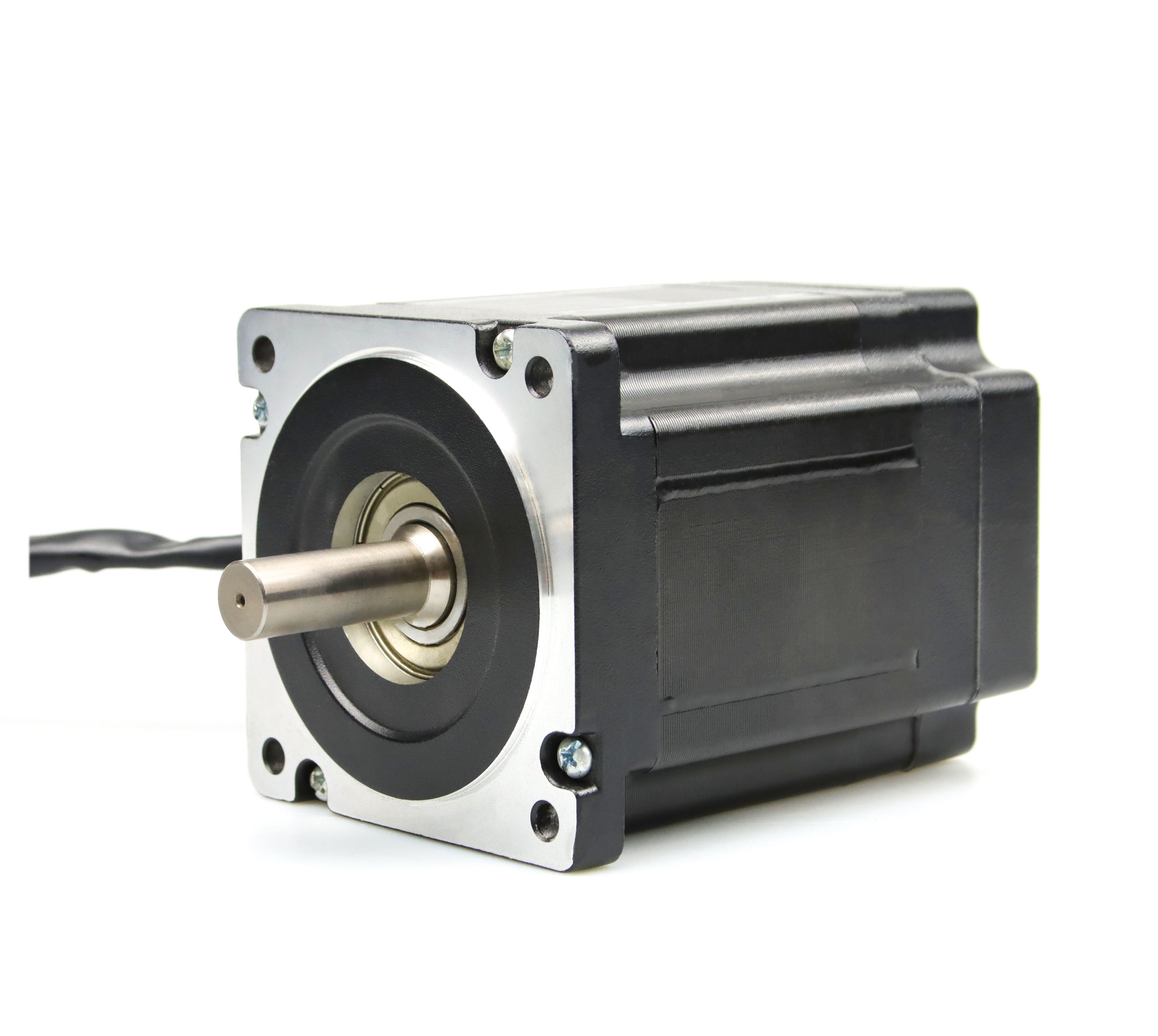

Product Name: Brushless DC Motor
Model No.: JK86BLS98
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 48v /60v /72v /110v
Rated Speed: 3000rpm /or customized from 2000rpm ~ 10000rpm
Rated Torque: 1.4N.m
Rated Current: 11.5A
Rated Power: 440W
Motor Length: 111.5mmUsage: Industrial automation.
It can be used with bldc driver JKBLD750 and Worm gearbox RV50.
| 基本性能/General Specification | |
| 项目(Item) | 性能(Specification) |
| 绕组连接方式 Winding type | 星型连接 Star |
| 霍尔分布角度 Hall effect angle | 120度电角度 120 degree electrical angle |
| 转轴跳动 Shaft run out | 0.025mm |
| 径向间隙 Radial play | 0.02mm＠450g |
| 轴向间隙 End play | 0.08mm＠450g |
| 径向最大承受力 Max.radial force | 220N ＠20mm form the flange |
| 轴向最大承受力 Max.axial force | 60N |
| 绝缘等级 Insulation class | Class B |
| 介电强度 Dielectric strength | 500VDC for one minute |
| 绝缘电阻 Insulation resistance | 100MΩ Min.,500VDC |
Specification of 3000RPM high speed DC motor:
| 电机规格/Electrical Specification: | ||||||
| 规格 | 单位 | 型号/Model | ||||
| Specification | Unit | JK86BLS58 | JK86BLS71 | JK86BLS84 | JK86BLS98 | JK86BLS125 |
| 相数 Number Of Phase | Phase | 3 | ||||
| 极数 Number Of Poles | Poles | 8 | ||||
| 额定电压 Rated Voltage | VDC | 48 | ||||
| 额定转速 Rated Speed | Rpm | 3000 | ||||
| 额定转矩 Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 |
| 额定电流 Rated Current | Amps | 3 | 6.3 | 9 | 11.5 | 18 |
| 额定功率 Rated Power | W | 110 | 220 | 330 | 440 | 660 |
| 峰值扭矩 Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 |
| 峰值电流 Peak Current | Amps | 9 | 19 | 27 | 35 | 54 |
| 反电势系数 Back E.M.F | V/Krpm | 13.7 | 13 | 13.5 | 13.7 | 13.5 |
| 转矩常数 Torque Constant | N.m/A | 0.13 | 0.12 | 0.13 | 0.13 | 0.13 |
| 转动惯量 Rotor Inertia | g.c㎡ | 400 | 800 | 1200 | 1600 | 2400 |
| 机身长度 Body Length | mm | 71 | 84.5 | 98 | 111.5 | 138.5 |
| 重量 Weight | Kg | 1.5 | 1.9 | 2.3 | 2.7 | 4 |
| 传感器 Sensor | 霍尔/Honeywell | |||||
| 绝缘等级 Insulation Class | B | |||||
| 防护等级 Degree of Protection | IP30 | |||||
| 存储温度 Storage Temperature | -25～+70℃ | |||||
| 工作温度 Operating Temperature | -15～+50℃ | |||||
| 工作湿度 Working Humidity | 85% RH或以下(无结露) | |||||
| 工作环境 Working Environment | 户外(无阳光直射),无腐蚀气体,无易燃气体,无油雾,无尘埃 | |||||
| 海拔高度 Altitude | 1000米或以下 | |||||
