80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans

80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans

80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans
video
80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK80BLS01-16IE
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$49~US$55
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Nema: 80mm Round Bldc Motor Holding Torque: 0.28N.m
Motor Length: 91.5mm Number Of Phase: 3phase
Number Of Poles: 8 Rated Voltage: 24v
Rated Speed: 2500rpm Rated Power: 60w
Matching Driver: JKBLD120 Degree Of Protection: IP30
Usage: Electrical Fans MOQ: 10pcs
Highlight:

Electrical fans 24v bldc motor

,

80mm 24v bldc motor

,

Electrical fans bldc servo motor

80mm 24v 2500rpm 60w bldc brushless DC motor with bulit-in driver controller



1.Production description:



Product Name: Brushless DC Motor
Model No.: JK80BLS01-16IE
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 24v / or customized 36v/ 48v/ 60v/ 72v/ 110v
Rated Speed: 2500rpm /or customized from 2000rpm ~ 10000rpm
Rated Torque: 0.28N.m
Rated Current: 0.8A
Rated Power: 60W

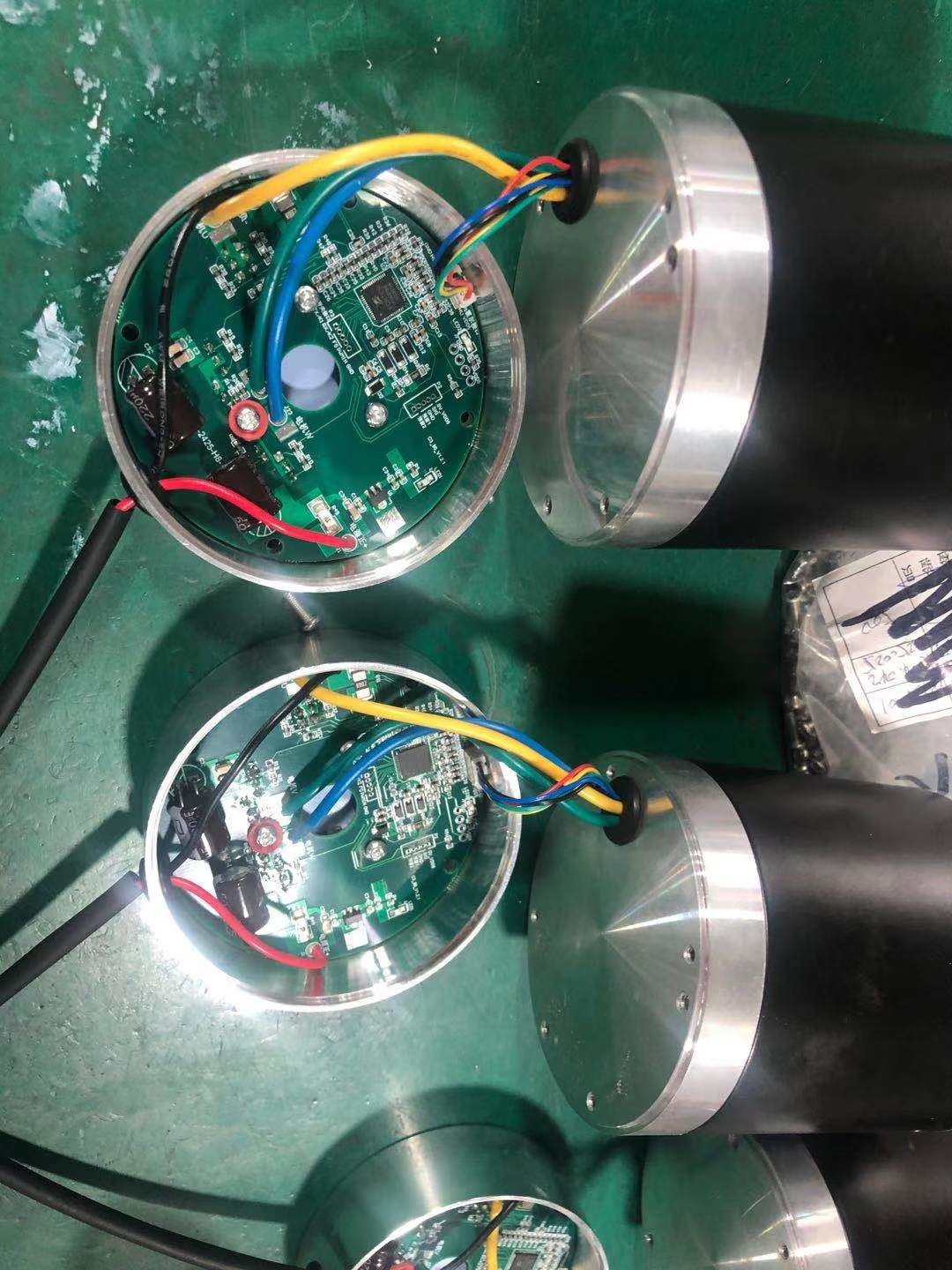

Driver type: Built-in

Usage: This motor is used for fans.





Brand Name: Jkongmtor  Product Name:

    Bldc motor with

     integrated driver
Model Name:          JK80BLS01-16IE       Number of Poles:   4
Resistance/ Phase: 0.68ohms  Nominal Voltage: 24V
Speed: 2500 rpm Current: 0.8A
Rated Torque: 0.28N.m Rated Speed:  1950 rpm
Output Power: 60w Torque Constant:   0.09N.m/A
Back EMF constant: 9.6v/krpm Insulation Class: B
Size: 80x80mm Body Length:    91.5mm



2.Product photos:

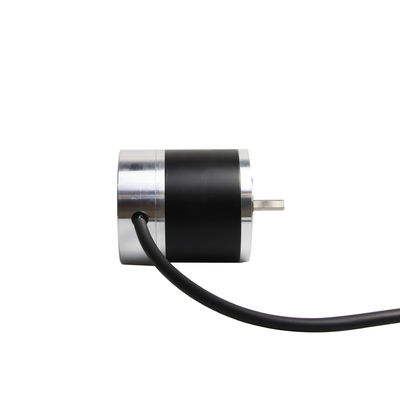

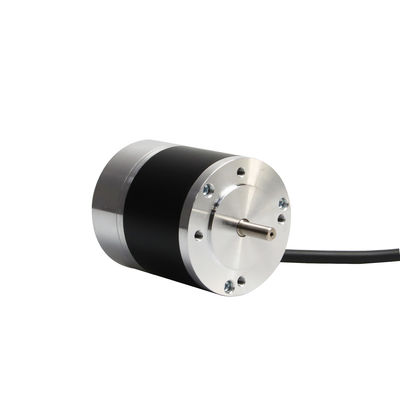

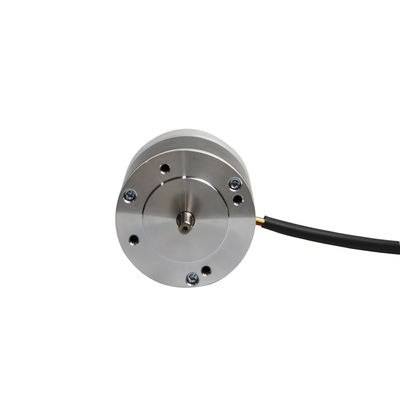

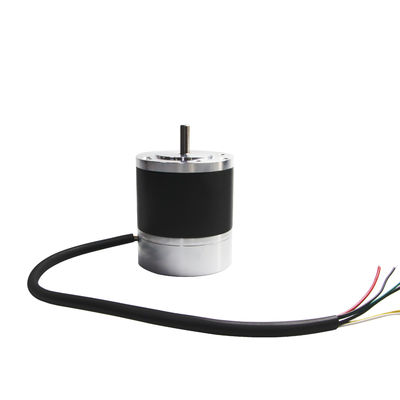

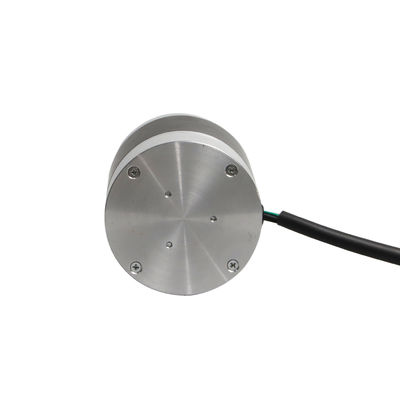

80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans 0

80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans 1



80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans 2

80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans 3

80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans 4

80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans 5

80mm 2500rpm 60w 24v Bldc Motor For Electrical Fans 6
