| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK86BLS71-X023B |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $35 - 45 / Pieces | 1 Piece/Pieces (Min. Order) |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 30000PCS/MONTH |
| Name: | Brushless DC Motor | Used For: | Industrial Kitchen Equipments, Kebab Grill Machine, Automatic Rotating Machine, BBQ Multifunctional Oven. |
|---|---|---|---|
| Torque: | 0.7N.m | Speed: | 3000rpm |
| Rated Current: | 1.5A | Output Power: | 220KW |
| Voltage: | 310V | Body Length: | 84.5mm |
| Matched With: | Hall Sensor, Encoder, Gearbox | Matched Driver: | JKBLD300 |
| High Light: | Rotating Grill 48v bldc motor,3000rpm 48 volt brushless dc motor,CE 48v bldc motor controller |
||

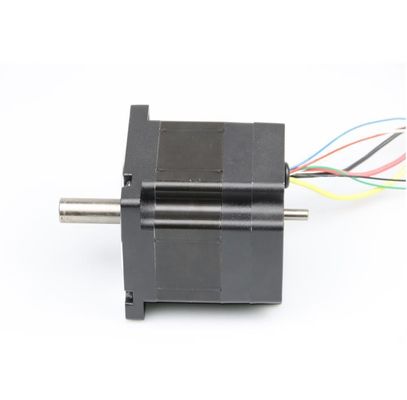

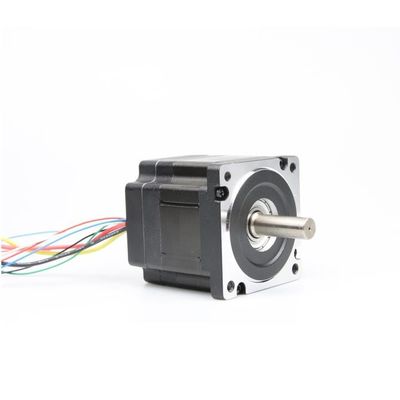

Product Name: Brushless DC Motor
Model No.: JK86BLS71-X023B
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 48v / or customized 36v/ 60v/ 72v/ 110v
Rated Speed: 3000rpm /or customized from 2000rpm ~ 10000rpm
Rated Torque: 0.7N.m
Rated Current: 1.5A
Rated Power: 220W
Usage: This motor is used for Industrial Kitchen Equipments, Kebab Grill Machine, Automatic Rotating Machine, BBQ Multifunctional oven.
This motor is matched with Brushless DC driver JKBLD300.
The price is just for your reference, Pls contact me for latest price.
| 86mm Square BLDC Motor | ||||||
| General Specification | ||||||
| Item | Specification | |||||
| Winding type | Star | |||||
| Hall effect angle | 120 degree electrical angle | |||||
| Shaft run out | 0.025mm | |||||
| Radial play | 0.02mm＠450g | |||||
| End play | 0.08mm＠450g | |||||
| Max.radial force | 220N ＠20mm form the flange | |||||
| Max.axial force | 60N | |||||
| Insulation class | Class B | |||||
| Dielectric strength | 500VDC for one minute | |||||
| Insulation resistance | 100MΩ Min.,500VDC | |||||
| Electrical Specification: | ||||||
| Specification | Unit | Model No. | Model No. | Model No. | Model No. | Model No. |
| JK86BLS58 | JK86BLS71 | JK86BLS84 | JK86BLS98 | JK86BLS125 | ||
| Number Of Phase | Phase | 3 | 3 | 3 | 3 | 3 |
| Number Of Poles | Poles | 8 | 8 | 8 | 8 | 8 |
| Rated Voltage | VDC | 48 | 48 | 48 | 48 | 48 |
| Rated Speed | Rpm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 |
| Rated Current | Amps | 3 | 6.3 | 9 | 11.5 | 18 |
| Rated Power | W | 110 | 220 | 330 | 440 | 660 |
| Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 |
| Peak Current | Amps | 9 | 19 | 27 | 35 | 54 |
| Back E.M.F | V/Krpm | 13.7 | 13 | 13.5 | 13.7 | 13.5 |
| Torque Constant | N.m/A | 0.13 | 0.12 | 0.13 | 0.13 | 0.13 |
| Rotor Inertia | g.c㎡ | 400 | 800 | 1200 | 1600 | 2400 |
| Body Length | mm | 71 | 84.5 | 98 | 111.5 | 138.5 |
| Weight | Kg | 1.5 | 1.9 | 2.3 | 2.7 | 4 |
| Sensor | Honeywell | |||||
| Insulation Class: B | ||||||
| Degree of Protection: IP30 | ||||||
| Storage Temperature: -25～+70℃ | ||||||
| Operating Temperature: -15～+50℃ | ||||||
