|Place of Origin:||Jiangsu, China (Mainland)|
|Minimum Order Quantity:||1 Pcs - 3Pcs|
|Price:||US $35 - 45 / Pieces | 1 Piece/Pieces (Min. Order)|
|Packaging Details:||with export carton . big quantity with pallet|
|Delivery Time:||For samples , 7-15 days / For batch , 15-25days|
|Payment Terms:||T/T , paypal , Western Union, L/C|
|Name:||Brushless DC Motor||Used For:||Industrial Kitchen Equipments, Kebab Grill Machine, Automatic Rotating Machine, BBQ Multifunctional Oven.|
|Rated Current:||1.5A||Output Power:||220KW|
|Matched With:||Hall Sensor, Encoder, Gearbox||Matched Driver:||JKBLD300|
310V brushless DC motor,
Barbecue brushless DC motor,
220w encoder brushless motor

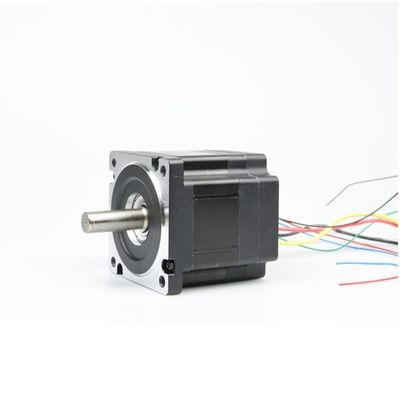

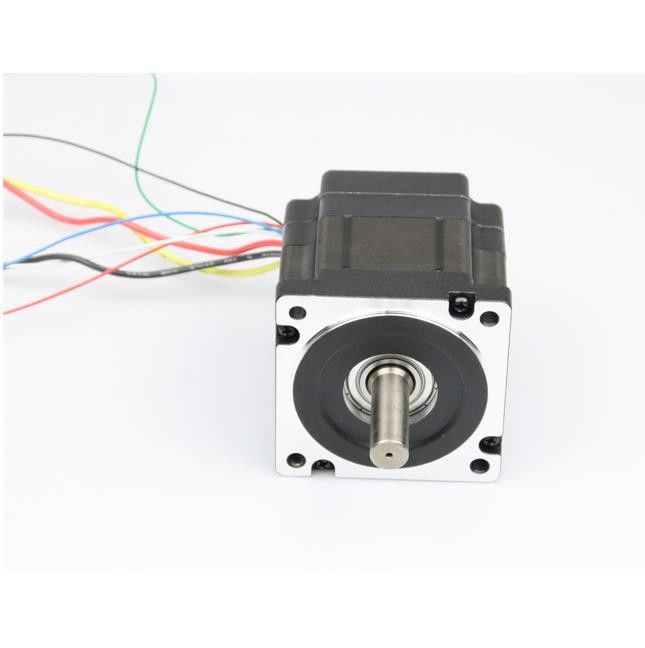

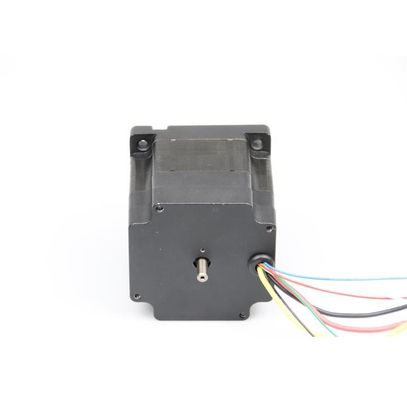

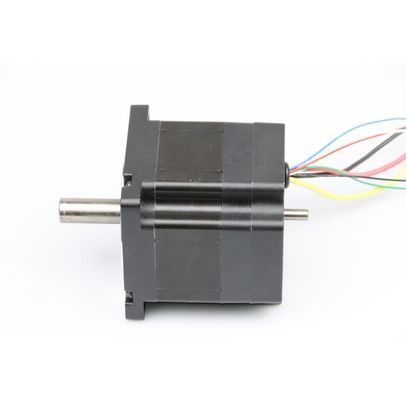

Product Name: Brushless DC Motor
Model No.: JK86BLS71-X023B
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 48v / or customized 36v/ 60v/ 72v/ 110v
Rated Speed: 3000rpm /or customized from 2000rpm ~ 10000rpm
Rated Torque: 0.7N.m
Rated Current: 1.5A
Rated Power: 220W
Usage: This motor is used for Industrial Kitchen Equipments, Kebab Grill Machine, Automatic Rotating Machine, BBQ Multifunctional oven.
This motor is matched with Brushless DC driver JKBLD300.
The price is just for your reference, Pls contact me for latest price.
|86mm Square BLDC Motor|
|Hall effect angle||120 degree electrical angle|
|Shaft run out||0.025mm|
|Max.radial force||220N ＠20mm form the flange|
|Insulation class||Class B|
|Dielectric strength||500VDC for one minute|
|Insulation resistance||100MΩ Min.,500VDC|
|Specification||Unit||Model No.||Model No.||Model No.||Model No.||Model No.|
|Number Of Phase||Phase||3||3||3||3||3|
|Number Of Poles||Poles||8||8||8||8||8|
|Insulation Class: B|
|Degree of Protection: IP30|
|Storage Temperature: -25～+70℃|
|Operating Temperature: -15～+50℃|
CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.
We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.
Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.
We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
