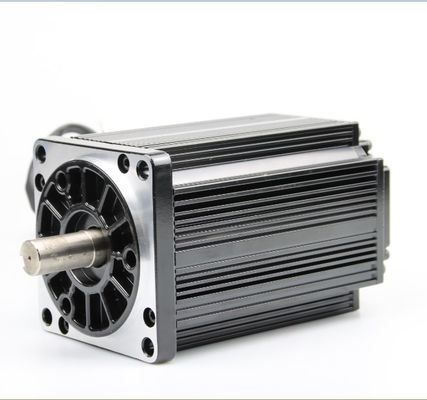

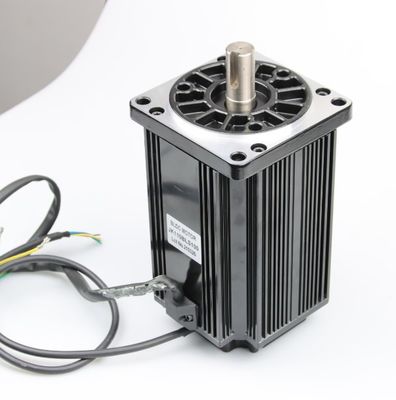

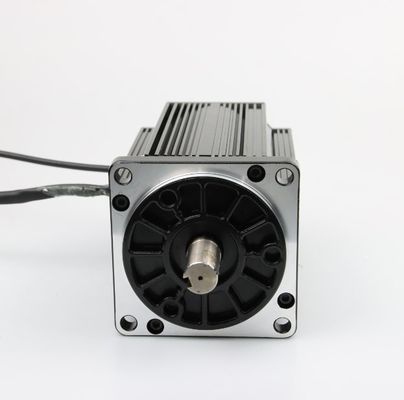

High Speed 5000rpm 5N.M 1.5KW 110mm Brushless DC Motor For Dust Collecting System

High Speed 5000rpm 5N.M 1.5KW 110mm Brushless DC Motor For Dust Collecting System

High Speed 5000rpm 5N.M 1.5KW 110mm Brushless DC Motor For Dust Collecting System
High Speed 5000rpm 5N.M 1.5KW 110mm Brushless DC Motor For Dust Collecting System
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK110BLS100
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $120 - 130 / Pieces | 1 Piece/Pieces (Min. Order)
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000PCS/MONTH
Contact Now
Detailed Product Description
Torque: 5N.m Speed: 3000rpm
Rated Current: 5.6A Output Power: 1.57KW
Voltage: 310V Body Length: 180mm
High Light:

dust collecting system bldc motor


1.5KW brushless DC motor


High speed 1.5kw bldc motor

High speed 5000rpm 5N.m 1.5KW 110mm brushless DC BLDC motor for dust collecting system

Product Name: Brushless DC Motor
Model No.: JK110BLS100
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 310v / or customized 60v/ 110v/ 220v
Rated Speed: 3000rpm /or customized from 2000rpm ~ 10000rpm
Rated Torque: 5N.m
Rated Current: 5.6A
Rated Power: 1.57KW

Usage: This motor is used for dust collecting systems, Industrial automation.

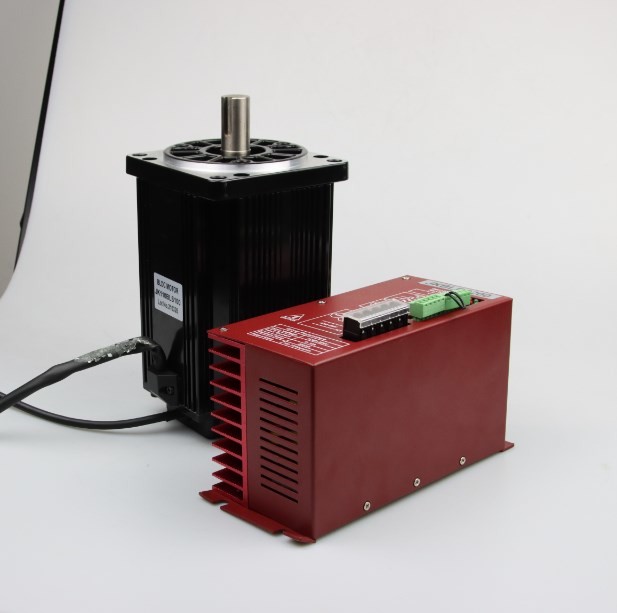

This motor is matched with Brushless DC driver JKBLD2200 and external display board BL01.

The price is just for your reference, Pls contact me for latest price.



Specification of 3000RPM high speed DC motor:


110mm Square BLDC Motor
General Specification
Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max.radial force 300N @20mm form the flange
Max.axial force 70N
Insulation class Class F
Dielectric strength 1200VDC for one minute
Insulation resistance 100MΩ Min.,500VDC


Specification Unit Model
JK110BLS75 JK110BLS100 JK110BLS125
Number Of Phase Phase 3 3 3
Number Of Poles Poles 8 8 8
NominalVoltage VDC 310 310 8
No Load Speed Rpm 3400 ±10% 3400 ±10% 3500 ±10%
No Load Current Amps 0.6 0.8 1
Rated Torque N.m 3.3 5 6.6
Rated Speed Rpm 3000 ±10% 3000 ±10% 3000 ±10%
Rated Current Amps 3.7 5.6 7.7
Output Power KW 1.03 1.57 2.07
Back E.M.F Constant V/Krpm 91.1 91.1 88.6
Torque Constant N.m/A 0.87 0.87 0.845
Body Length mm 155 180 205
Sensor Honeywell
Insulation Class H




High Speed 5000rpm 5N.M 1.5KW 110mm Brushless DC Motor For Dust Collecting System 1


CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers three major series of products: Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor. We are always continues develop new type models.

We are also have several joint venture companies who specialized in the production of AC servo motor, PM stepper motors, Spindle motor and Motor drivers. We export our motors to more than 30 countries Such as United States, Germany, Russia, Turkey, Brazil and so on.

Jkongmotor sold to major manufacturing Companies for Industry of automation, medical and health care equipment, 3d printer machines, packing devices, Information Technology, household appliance products.

We have an Engineering team with many years of experience in application Engineering, design Engineering with the latest advances equipment. Our Engineering Staff provides the finest quality product with service after the product is delivered to our Customers.
