| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK110BLS75 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $80 - 110 / Pieces | 1 Piece/Pieces (Min. Order) |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 30000PCS/MONTH |
| Name: | Brushless DC Motor | Used For: | Dust Collecting Systems, Industrial Automation |
|---|---|---|---|
| Torque: | 3.3N.m | Speed: | 3000rpm |
| Rated Current: | 3.7A | Output Power: | 1030W |
| Voltage: | 310V | Body Length: | 155mm |
| Matched Driver: | JKBLD2200 | Matched With: | Hall Sensor, Encoder, Gearbox |
| MOQ: | 10pcs | ||
| High Light: | 3.3Nm Brushless DC Motor,3.3Nm bldc electric motor,CE 1kw Brushless DC Motor |
||

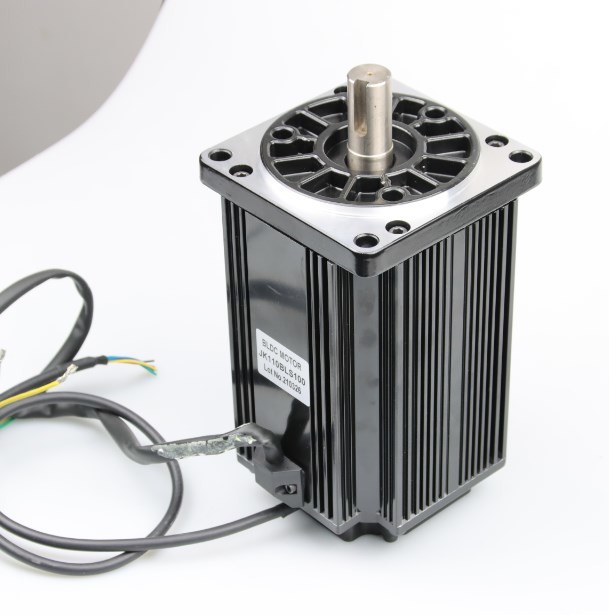

Product Name: Brushless DC Motor
Model No.: JK110BLS75
Number of Phase: 3 Phase
Number of Poles: 8 Poles
Rated Voltage: 310v / or customized 60v/ 110v/ 220v
Rated Speed: 3000rpm /or customized from 2000rpm ~ 10000rpm
Rated Torque: 3.3N.m
Rated Current: 3.7A
Rated Power: 1.03KW
Usage: This motor is used for dust collecting systems, Industrial automation.
This motor is matched with Brushless DC driver JKBLD2200 and external display board BL01.
The price is just for your reference, Pls contact me for latest price.
Specification of 3000RPM high speed DC motor:
| 110mm Square BLDC Motor | |||||
| General Specification | |||||
| Item | Specification | ||||
| Winding type | Star | ||||
| Hall effect angle | 120 degree electrical angle | ||||
| Shaft run out | 0.025mm | ||||
| Radial play | 0.02mm＠450g | ||||
| End play | 0.08mm＠450g | ||||
| Max.radial force | 300N ＠20mm form the flange | ||||
| Max.axial force | 70N | ||||
| Insulation class | Class F | ||||
| Dielectric strength | 1200VDC for one minute | ||||
| Insulation resistance | 100MΩ Min.,500VDC | ||||
| Electrical Specification: | ||||
| Specification | Unit | Model | ||
| JK110BLS75 | JK110BLS100 | JK110BLS125 | ||
| Number Of Phase | Phase | 3 | 3 | 3 |
| Number Of Poles | Poles | 8 | 8 | 8 |
| NominalVoltage | VDC | 310 | 310 | 8 |
| No Load Speed | Rpm | 3400 ±10% | 3400 ±10% | 3500 ±10% |
| No Load Current | Amps | 0.6 | 0.8 | 1 |
| Rated Torque | N.m | 3.3 | 5 | 6.6 |
| Rated Speed | Rpm | 3000 ±10% | 3000 ±10% | 3000 ±10% |
| Rated Current | Amps | 3.7 | 5.6 | 7.7 |
| Output Power | KW | 1.03 | 1.57 | 2.07 |
| Back E.M.F Constant | V/Krpm | 91.1 | 91.1 | 88.6 |
| Torque Constant | N.m/A | 0.87 | 0.87 | 0.845 |
| Body Length | mm | 155 | 180 | 205 |
| Sensor | Honeywell | |||
| Insulation Class | H | |||
