|Place of Origin:||Jiangsu, China (Mainland)|
|Minimum Order Quantity:||3-10pcs|
|Packaging Details:||with export carton . big quantity with pallet|
|Delivery Time:||For samples , 7-15 days / For batch , 15-25days|
|Payment Terms:||T/T , paypal , Western Union, L/C|
|Nema:||42mm Bldc Motor||Rated Torque:||0.24N.m|
|Motor Length:||73mm||Number Of Phase:||3phase|
|Number Of Poles:||8||Rated Voltage:||24v|
|Rated Speed:||1500rpm||Rated Power:||35w|
|Matching Driver:||JKBLD300||Degree Of Protection:||IP30|
42mm shaft low rpm brushless motor,
35w low RPM brushless motor,
low RPM PWM brushless motor

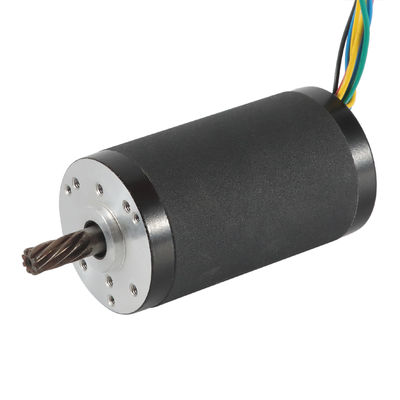

Low speed 3phase 24v 0.24N.m 35w 42mm customized shaft Brushless Dc Motor
2.Customized of brushless electric motor 150w:
3.General Specification of brushless dc motor:
|Hall effect angle||120 degree electrical angle|
|Shaft run out||0.025mm|
|Max.radial force||75N ＠20mm form the flange|
|Insulation class||Class B|
|Dielectric strength||500VDC for one minute|
|Insulation resistance||100MΩ Min.,500VDC|
Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback.
We can design the special voltage and shaft and so on.
motores paso a pas
4.The matching bldc Driver: JKBLD70
5.Dimensions of dc brushed motor: (Unit=mm)
8.Applications of brushless dc motors 24v:
We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.
BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
