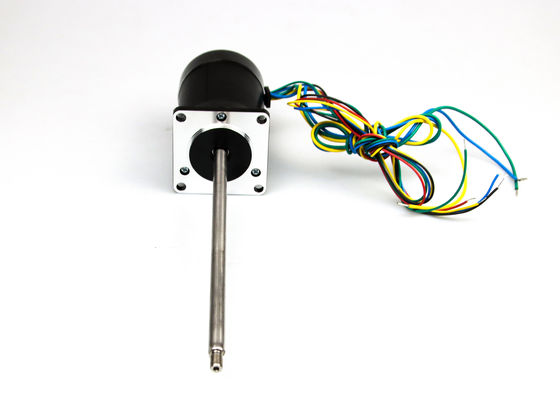

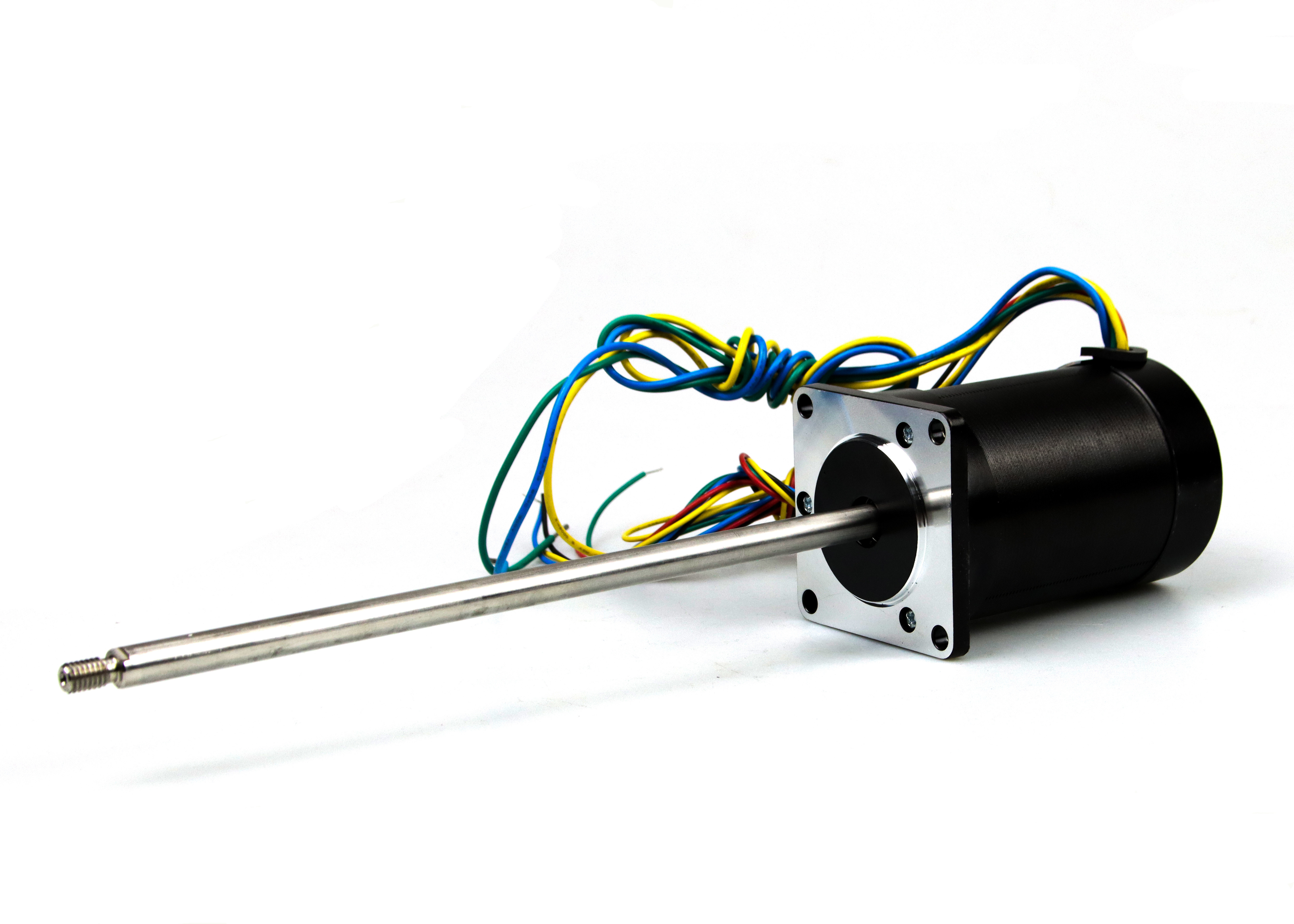

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft
video
ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57BLF03-17-X001
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$28~US$52
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Nema: 110mm Bldc Motor Holding Torque: 0.32N.m
Motor Length: 87mm Number Of Phase: 3phase
Number Of Poles: 4 Rated Voltage: 24v
Rated Speed: 4500rpm Rated Power: 150w
Matching Driver: JKBLD300 Degree Of Protection: IP30
High Light:

4500rpm 24v Brushless Dc Motor

,

4 Pole Brushless Dc Motor

,

ROHS 24v brushless dc motor

Customized 24v 4pole 150w 4500rpm 57mm with long shaft Brushless Dc Motor



1.General Specification of brushless dc motor:

(Item)

(Specification)

Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max.radial force 75N @20mm form the flange
Max.axial force 15N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ Min.,500VDC


Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback.
We can design the special voltage and shaft and so on.
motores paso a pas
2.Electrical Specification of 57mm bldc motor:



    Model
Specification Unit JK57BLS005 JK57BLS01 JK57BLS02 JK57BLS03 JK57BLS04
Number Of Phase Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 36
Rated Speed Rpm 4000
Rated Torque N.m 0.055 0.11 0.22 0.33 0.44
Rated Current Amps 1.2 2 3.6 5.3 6.8
Rated Power W 23 46 92 138 184
Peak Torque N.m 0.16 0.33 0.66 1 1.32
Peak Current Amps 3.5 6.8 11.5 15.5 20.5
Back E.M.F V/Krpm 7.8 7.7 7.4 7.3 7.1
Torque Constant N.m/A 0.074 0.073 0.07 0.07 0.068
Rotor Inertia g.c 30 75 119 173 230
Body Length mm 37 47 67 87 107
Weight Kg 0.33 0.44 0.75 1 1.25
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity ≤85% RH
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude Below 1000m



3.The matching bldc Driver: JKBLD300

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft 0

4.Dimensions of dc brushed motor: (Unit=mm)

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft 1

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft 2






5.Produce equipment:

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft 3

6.Production Process:
ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft 4

7.Customized of brushless electric motor 150w:

  • BLDC motor with fan
  • BLDC motor with gearbox
  • BLDC motor with encoder
  • BLDC motor with brake


8.Applications of brushless dc motors 24v:



We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.


BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft 5

ROHS 24v 4 Pole 150w 4500rpm Brushless Dc Motor With 57mm Long Shaft 6
