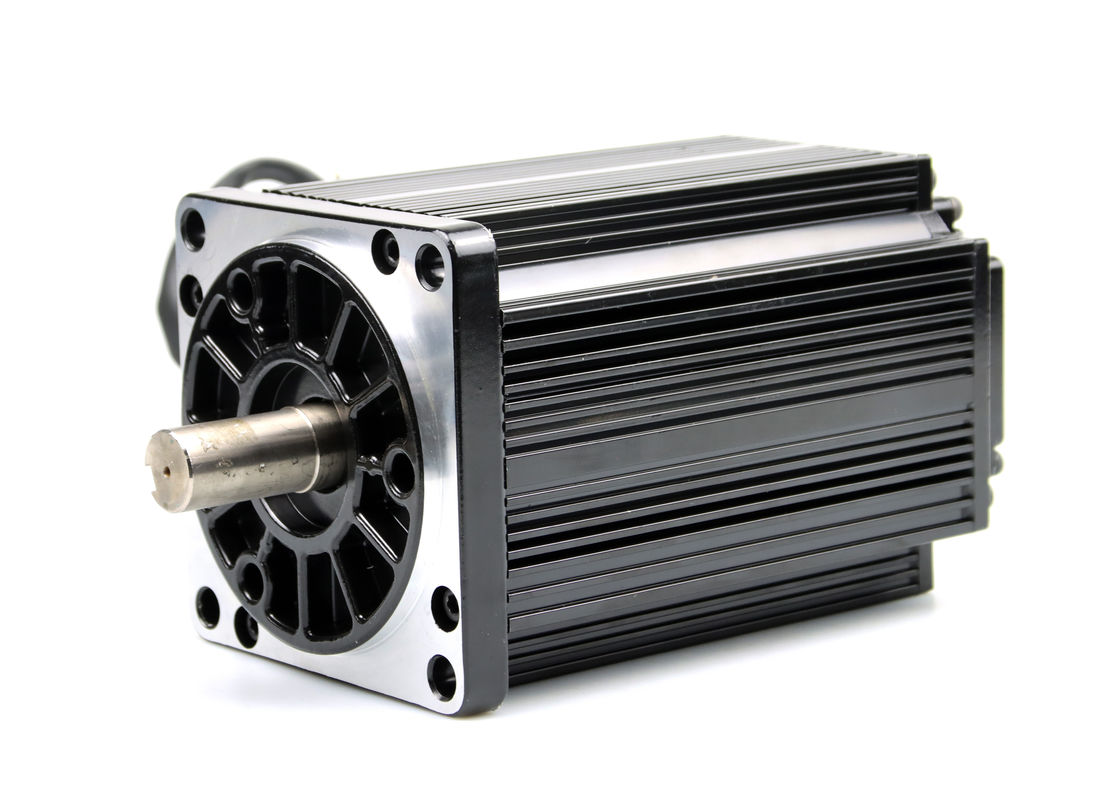

3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor

3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor

3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor
video
3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK110BLS100
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$118~US$158
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Nema: 110mm Bldc Motor Holding Torque: 5N.m
Motor Length: 180mm Number Of Phase: 3phase
Number Of Poles: 8 Rated Voltage: 310v
Rated Speed: 3000rpm Rated Power: 1570w
Matching Driver: JKBLD2200 Degree Of Protection: IP30
High Light:

310VDC industrial brushless motor

,

3000rpm industrial brushless motor

,

310VDC three phase brushless motor

110BLS100 3000rpm 1.5kw 220VAC 310VDC Brushless Dc Motor



1.Advantages of round bldc motor 3000rpm:



Speed Stability
Hall-effect sensors built in the BLDC motor detect the change in polarity from an N pole to an S pole as the rotor is spinning. Based on the time between state changes, the rotor's speed is determined. This information is then fed to the drive circuit to adjust the speed of the switching sequence.


High Speed Operation
Brushed and brushless DC systems provide flat torque over a wide speed range while AC motors often lose torque as speed increases.


2.Specification of brushless dc motor:

  • Diameters: 110mm
  • Lengths: 180mm
  • Continuous torques: 0.87N-m/A
  • Power: 1570W
  • Speeds up to 3000rpm
  • Number of poles/phase:8/3
  • Insulation class:B


Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback.
We can design the special voltage and shaft and so on.
motores paso a pas
3.Electrical Specification of 86mm bldc motor:


Model
Specification Unit JK110BLS100
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 310
Rated Speed Rpm 3000
Rated Torque N.m 5
No Load Current Amps 0.8
No Load Speed Rpm 3400
Output Power W 1570
Back E.M.F V/Krpm 91.1
Torque Constant N.m/A 0.87
Insulation Class B



4.The matching bldc Driver: JKBLD2200

3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor 0

5.Dimensions of dc brushed motor: (Unit=mm)

3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor 1

3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor 2

3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor 3


6.Produce equipment:

3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor 4

7.Production Process:
3000rpm 1.5kw 310VDC Three Phase Industrial Brushless Motor 5

8.Customized of brushless electric motor 220w:

  • BLDC motor with fan
  • BLDC motor with gearbox
  • BLDC motor with encoder
  • BLDC motor with brake


9.Applications of brushless dc motors 160v:



We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.


BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
