|Place of Origin:||Jiangsu, China (Mainland)|
|Minimum Order Quantity:||3-10pcs|
|Packaging Details:||with export carton . big quantity with pallet|
|Delivery Time:||For samples , 7-15 days / For batch , 15-25days|
|Payment Terms:||T/T , paypal , Western Union, L/C|
|Nema:||86mm Bldc Motor||Holding Torque:||0.7N.m|
|Motor Length:||84.5mm||Number Of Phase:||3phase|
|Number Of Poles:||8||Rated Voltage:||160v|
|Rated Speed:||3000rpm||Rated Power:||220w|
|Matching Driver:||JKBLD750||Degree Of Protection:||IP30|
86mm Brushless DC Motor,
86mm nema 34 motor,
nema 34 motor with encoder

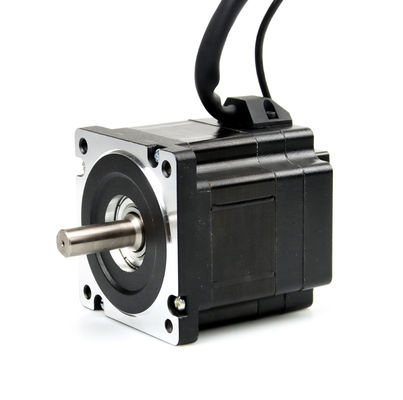

Low speed 220w 160v 3000rpm 86mm Brushless/Electric Motor with encoder
1.Specification of brushless dc motor:
Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback.
We can design the special voltage and shaft and so on.
motores paso a pas
2.Electrical Specification of 86mm bldc motor:
|Number Of Phase||Phase||3|
|Number Of Poles||Poles||8|
|No Load Current||Amps||0.8|
|No Load Speed||Rpm||3500|
3.The matching bldc Driver: JKBLD750
4.Dimensions of dc brushed motor: (Unit=mm)
7.Customized of brushless electric motor 220w:
8.Advantages of round bldc motor 3000rpm:
Hall-effect sensors built in the BLDC motor detect the change in polarity from an N pole to an S pole as the rotor is spinning. Based on the time between state changes, the rotor's speed is determined. This information is then fed to the drive circuit to adjust the speed of the switching sequence.
High Speed Operation
Brushed and brushless DC systems provide flat torque over a wide speed range while AC motors often lose torque as speed increases.
9.Applications of brushless dc motors 160v:
We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.
BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
