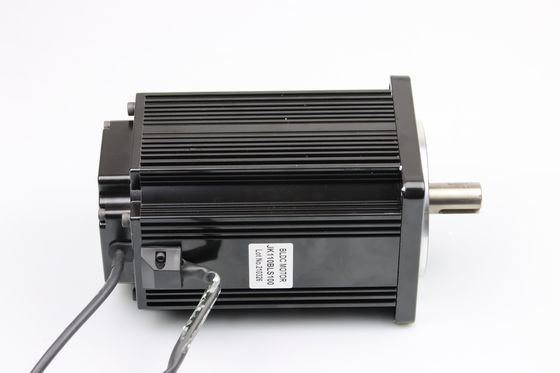

3 Phase 110mm 1.5KW 310V 3000RPM Automation High Torque Brushless Motor

3 Phase 110mm 1.5KW 310V 3000RPM Automation High Torque Brushless Motor

3 Phase 110mm 1.5KW 310V 3000RPM Automation High Torque Brushless Motor
video
3 Phase 110mm 1.5KW 310V 3000RPM Automation High Torque Brushless Motor
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK110BLS100
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $80 - 120 / Pieces | 1 Piece/Pieces (Min. Order)
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000PCS/MONTH
Contact Now
Detailed Product Description
Product Name: 110mm BLDC Motor Speed: 3000rpm
Rated Current: 5.6A Output Power: 1570W
Voltage: 310V Body Length: 180mm
Holding Torque: 5N.m Motor Diameter: 110mm
Phase: 3 Application: Automation
Insulation Class: Class F Current: 5.6A
Poles: 8 Sensor: Honeywell
High Light:

Automation high torque brushless motor

,

3000RPM high torque brushless motor

,

1.5KW high power brushless motor

3 Phase 110mm Brushless DC Motor 1.5KW 310V 3000RPM Brushless DC Motor For Industrial Automation



Product Description:

110mm brushless dc motor , BLDC MOTOR

310v dc brushless  motor, 110mm dc brushless motor,

3000RPM DC brushless motor





Specification of 3000RPM high speed DC motor:



    Model
Specification Unit JK110BLS75
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 310
Rated Speed Rpm 3000
Rated Torque N.m 5
Rated Current Amps 5.6
Rated Power W 1570

 JK110BLS100





What are brushless DC motors used for?

The most common uses of brushless DC motors in industrial engineering are linear motors, servomotors, actuators for industrial robots, extruder drive motors and feed drives for CNC machine tools.
