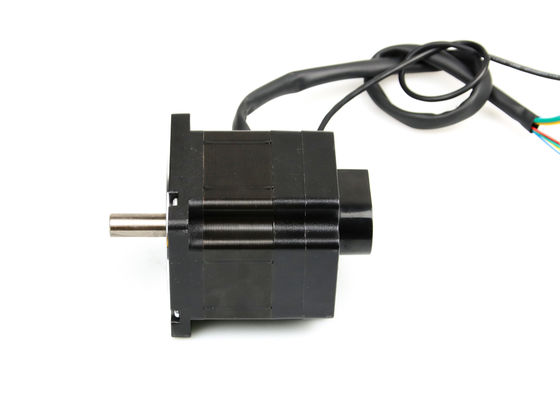

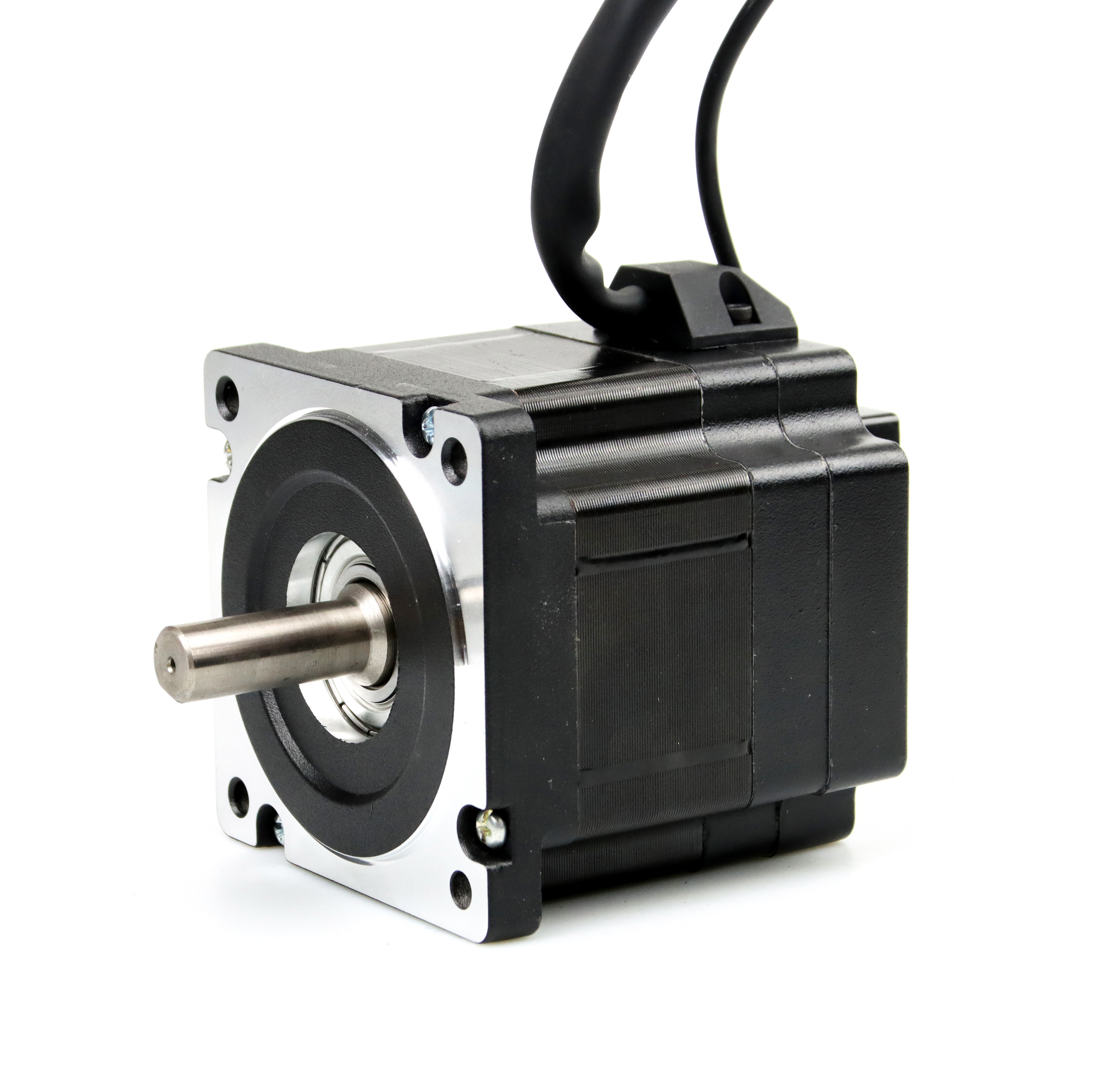

CE 220w 3000rpm 86mm Low Speed Brushless Motor With Encoder

CE 220w 3000rpm 86mm Low Speed Brushless Motor With Encoder

CE 220w 3000rpm 86mm Low Speed Brushless Motor  With Encoder
video
CE 220w 3000rpm 86mm Low Speed Brushless Motor  With Encoder
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86BLS71-20ED
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$38~US$47.9
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Nema: 86mm Bldc Motor Holding Torque: 0.7N.m
Motor Length: 84.5mm Number Of Phase: 3phase
Number Of Poles: 8 Rated Voltage: 160v
Rated Speed: 3000rpm Rated Power: 220w
Matching Driver: JKBLD750 Degree Of Protection: IP30
MOQ: 10pcs
High Light:

86mm low speed brushless motor

,

220w low speed brushless motor

,

CE 3000rpm brushless motor

Low speed 220w 160v 3000rpm 86mm Brushless/Electric Motor with encoder

1.Specification of brushless dc motor:

  • Diameters: 86mm
  • Lengths: 84.5mm
  • Continuous torques: 0.7Nm
  • Power: 220W
  • Speeds up to 3000rpm
  • Number of poles/phase:8/3
  • Insulation class:B


Optional: electronic drivers, encoders and gearheads, as well as Hall effect resolver and sensorless feedback.
We can design the special voltage and shaft and so on.
motores paso a pas
2.Electrical Specification of 86mm bldc motor:


Model
Specification Unit JK86BLS71-20ED
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 160
Rated Speed Rpm 3000
Rated Torque N.m 0.7
No Load Current Amps 0.8
No Load Speed Rpm 3500
Output Power W 220
Back E.M.F V/Krpm 43.2
Torque Constant N.m/A 0.413
Insulation Class B



3.The matching bldc Driver: JKBLD750

CE 220w 3000rpm 86mm Low Speed Brushless Motor  With Encoder 0

4.Dimensions of dc brushed motor: (Unit=mm)

CE 220w 3000rpm 86mm Low Speed Brushless Motor  With Encoder 1


5.Produce equipment:

CE 220w 3000rpm 86mm Low Speed Brushless Motor  With Encoder 2

6.Production Process:
CE 220w 3000rpm 86mm Low Speed Brushless Motor  With Encoder 3

7.Customized of brushless electric motor 220w:

  • BLDC motor with fan
  • BLDC motor with gearbox
  • BLDC motor with encoder
  • BLDC motor with brake



8.Advantages of round bldc motor 3000rpm:



Speed Stability
Hall-effect sensors built in the BLDC motor detect the change in polarity from an N pole to an S pole as the rotor is spinning. Based on the time between state changes, the rotor's speed is determined. This information is then fed to the drive circuit to adjust the speed of the switching sequence.


High Speed Operation
Brushed and brushless DC systems provide flat torque over a wide speed range while AC motors often lose torque as speed increases.




9.Applications of brushless dc motors 160v:



We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.


BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
