57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire

57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire

  • 57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire
  • 57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire
  • 57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire
  • 57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire
  • 57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire
  • 57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire
  • 57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire
57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57HSN
Payment & Shipping Terms:
Minimum Order Quantity: 1 - 3 Piece/Pieces
Price: US $55 - 83 / Pieces
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000 pcs/month
Contact Now
Detailed Product Description
Phase: 2 Type: Hybrid
Step Angle: 1.8 Degree Holding Torque: 1.2N.m 1.8N.m 2.8N.m
Current / Phase: 4.20A Motor Length: 51mm-112mm
Leading Wires: 4 Weight: 0.65kg - 1.4kg
High Light:

Nema 23 closed loop servo motor

,

57mm closed loop servo motor

,

57mm Nema 23 motor

57mm Nema 23 closed loop stepper motor with encoder feedback 2 Phase 4 Wire



Genaral Specification of nema23 stepper motor:


Item

Specifications

Step Angle

1.8°

Temperature Rise

80℃max

Ambient Temperature

-20℃~+50℃

Insulation Resistance

100 MΩ Min. ,500VDC

Dielectric Strength

500VAC for 1minute

haft Radial Play

0.02Max. (450g-load)

Shaft Axial Play

0.08Max. (450g-load)

Max. radial force

75N (20mm from the flange)

Max. axial force

15N





Electrical Specification of stepper motor closed loop:



Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass



( °)

(L)mm

A

Ω

mH

N.m

No.

g.cm

g.cm

Kg

JK57HSN05

1.8

41

4.2

0.3

0.7

0.55

4

250

150

0.65

JK57HSN12

1.8

56

4.2

0.4

1.2

1.1

4

350

280

0.98

JK57HSN18

1.8

76

4.2

0.6

1.8

1.8

4

600

440

1.1

JK57HSN22

1.8

82

4.2

0.7

2.5

2.2

4

1000

600

1.2

JK57HSN30

1.8

112

4.2

0.9

3.8

3.1

4

1200

800

1.4



Note: We can also manufacture products according to customer's requirements.

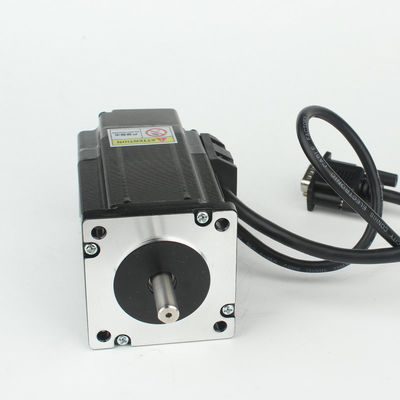

57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire 0

57mm Nema 23 Closed Loop Servo Motor With Encoder Feedback 2 Phase 4 Wire 1


Matched Drivers:

2 Phase closed loop stepper motor system match driver Model: JK-HSD57

  • Step and direction control
  • Closed position loop for no loss of movement synchronization
  • Operating voltage: 20-80 VDC
  • Load based output current of 0.1 - 10 A
  • High torque at starting and low speed
  • No torque reservation
  • High stiffness at standstill
  • Significantly reduced motor heating
  • Smooth motor movement and extra low motor noise
  • Quick response, no delay and zero settling time
  • No loss of steps; no hunting; no overshooting
  • Plug-and-play and no tuning
