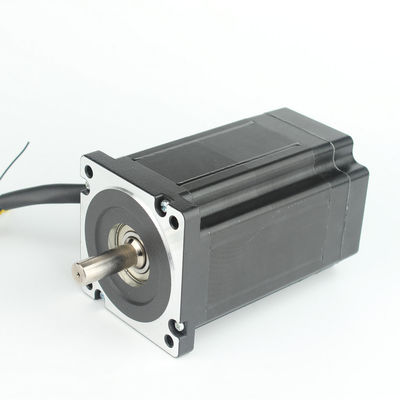

Hybrid NEMA 24 Brushless Dc Motor 3 Phase 60mm 48V 94W For CNC Machine

Hybrid NEMA 24 Brushless Dc Motor 3 Phase 60mm 48V 94W For CNC Machine

Hybrid NEMA 24 Brushless Dc Motor 3 Phase 60mm 48V 94W For CNC Machine
video
Hybrid NEMA 24 Brushless Dc Motor 3 Phase 60mm 48V 94W For CNC Machine
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK60BLS01
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $16-25.5 / Units | 3 Unit/Units (Min. Order)
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Contact Now
Detailed Product Description
Phase: 3, 3-phase Type: Hybrid
Step Angle(degrees): 1.8 Degree Holding Torque: 0.3N.M
Current / Phase: 2.8A Motor Length: 78mm
Voltage Range: 48V Suitable Motor: Nema 24 Stepper Motor
MOQ: 10pcs
Highlight:

Hybrid NEMA 24 BLDC Motor

,

60mm Brushless Dc Motor

,

60MM NEMA 24 BLDC Motor


60mm(NEMA24) 48V 94W 3 phase bldc motor with factory price for cnc machine


Product Description


Genaral Specification:



Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm＠450g
End play 0.08mm＠450g
Max.radial force 115N ＠20mm form the flange
Max.axial force 45N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ Min.,500VDC





 Electrical Specification:



    Model
Specification Unit JK60BLS01 JK60BLS02 JK60BLS03 JK60BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.3 0.6 0.9 1.2
Rated Current Amps 2.8 5.2 7.5 9.5
Rated Power W 94 188 283 377
Peak Torque N.m 0.9 1.8 2.7 3.6
Peak Current Amps 8.4 15.6 22.5 28.5
Back E.M.F V/Krpm 12.1 12.6 12.4 13.3
Torque Constant N.m/A 0.116 0.12 0.118 0.127
Rotor Inertia Kg.cm^2 0.24 0.48 0.72 0.96
Body Length mm 78 99 120 141
Weight Kg 0.85 1.25 1.65 2.05
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
Working Humidity 85% or under 85% RH(non condensing)
Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
Altitude 1000m or under 1000m



Products of special request can be made according to the customer request !





Further More Information



Q1: What about your warranty?

A: We guarantee is one year . for sea order .  is 15months.



Q2: Do you have any certificates?

A: Yes, we have. All the motors have been approved by CE and Rohs.



Q3: Do you offer OEM AND ODM service?

A: Yes. We can  supply OEM andmake customized design for any specific application.



Q4: How can be your brand distributor?

A: We will check your capacity and help you promote and expand the market.



Q5: What's the delivery time  ?

A: Except special order. For samples usually  10-14 working days . for batch order . usually 20-25days.
