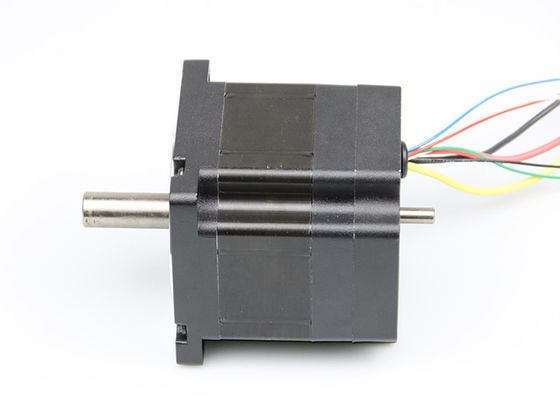

86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine

86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine

86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine
video
86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86BLS71-X020
Payment & Shipping Terms:
Minimum Order Quantity: 3PCS~10PCS
Price: US$28~US$38
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Nema: 86mm Bldc Motor Holding Torque: 0.7N.m
Motor Length: 86mm Number Of Phase: 3phase
Number Of Poles: 8 Rated Voltage: 48v
Rated Speed: 3000rpm Rated Power: 220w
Matching Driver: JKBLD300 Degree Of Protection: IP30
Resistance: 0.4Ω No Load Speed: 3700rpm
No Load Current: 1.5A Back Emf Constant: 13 V/kRPM
Torque Constant: 0.124 N-m/A

86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine



The main parameters to be referenced in the selection of brushless DC motor are as follows:

Maximum torque: this can be obtained by adding the load torque, moment of inertia and friction. In addition, additional factors such as air gap air resistance influence the maximum torque.

Square modulus torque: can be approximately considered as the continuous output torque required for practical application, determined by many factors: maximum torque, load torque, moment of inertia, acceleration, deceleration, and running time, etc.

Speed: this is the required speed, which can be determined according to the speed trapezoidal curve of the motor, usually 10% margin should be left in the calculation.



Electrical Specification of NEMA23 brushless dc motor:





Model
Specification Unit JK86BLS58 JK86BLS71 JK86BLS84 JK86BLS98 JK86BLS125
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4 2.1
Rated Current Amps 3 6.3 9 11.5 18
Rated Power W 110 220 330 440 660
Peak Torque N.m 1.05 2.1 3.15 4.2 6.3
Peak Current Amps 9 19 27 35 54
Back E.M.F V/Krpm 13.7 13 13.5 13.7 13.5
Torque Constant N.m/A 0.13 0.12 0.13 0.13 0.13
Rotor Inertia g.c㎡ 400 800 1200 1600 2400
Body Length mm 71 84.5 98 111.5 138.5
Weight Kg 1.5 1.9 2.3 2.7 4
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity ≤85% RH
Working Environment No direct sunlight, non-corrosive gas, flammable gas, no dust
Altitude under 1000 meters





motores paso a pas

The matching bldc Driver: JKBLD300



Dimensions of 36v bldc motor: (Unit=mm)

86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine 0





86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine 186BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine 2



Produce equipment:



86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine 3



Production Process:

86BLS71 48V 3000rpm 0.7N.m Nema34 Brushless Dc Motor for Turkish barbecue machine 4





Customized of 57mm brushless electric motor:

  • BLDC motor with fan
  • BLDC motor with gearbox
  • BLDC motor with encoder
  • BLDC motor with brake

Feature of dc brushless motor:

  • Low power consumption, smaller battery and longer battery life
  • No need cleaning and maintenance
  • Easy for speed adjustment and reversible direction
  • Removable location
  • Smaller size, compact and less weight design
  • Longer life, higher quality with reliability
  • Higher efficiency, low heat lose and high C/P
  • Higher speed, high performance
  • Lower emissions, lower EMI/RFI
  • Smart control, cleaner with smart function



Advantages of 57mm square bldc motor:



A BLDC motor with three coils on the stator will have six electrical wires (two to each coil) extending from these coils. In most implementations three of these wires will be connected internally, with the three remaining wires extending from the motor body (in contrast to the two wires extending from the brushed motor described earlier). Wiring in the BLDC motor case is more complicated than simply connecting the power cell’s positive and negative terminals; we will look more closely at how these motors work in the second session of this series. Below, we conclude by looking at the advantages of by BLDC motors.



Applications of high quanlity brushless dc motor:



We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.
