| Rated Voltage: | 48V | Rated Speed: | 3000rpm |
|---|---|---|---|
| Rated Power: | 110W - 660W | Rated Torque: | 0.35N.m - 2.1N.m |
| Rated Current: | 3A - 18A | Sensor: | Honeywell |
| Commutation: | Brushless | Application: | Home Appliance |
| MOQ: | 10pcs | ||
| Highlight: | 3000rpm Nema 34 BLDC Motor,8 Pole nema 34 bldc motor,8 Pole 48v brushless motor |
||

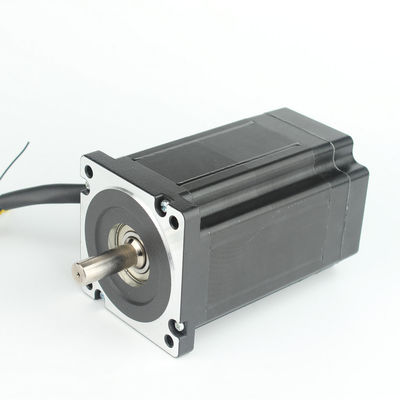

NEMA34 Brushless Dc Motor 8poles 48v 3000rpm With Hall Sensor
1. Descrition Of 3 Phase Brushless Dc Motor
Rated Voltage : 48V - 310V
Rated Speed : 1000RPM - 3000RPM
2. Genaral Specification of 3 phase brushless dc motor:
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 220N ＠20mm form the flange |
| Max.axial force | 60N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
3. Electrical Specification of NEMA34 brushless dc motor
| Model | ||||||
| Specification | Unit | JK86BLS58 | JK86BLS71 | JK86BLS84 | JK86BLS98 | JK86BLS125 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 8 | ||||
| Rated Voltage | VDC | 48 | ||||
| Rated Speed | Rpm | 3000 | ||||
| Rated Torque | N.m | 0.35 | 0.7 | 1.05 | 1.4 | 2.1 |
| Rated Current | Amps | 3 | 6.3 | 9 | 11.5 | 18 |
| Rated Power | W | 110 | 220 | 330 | 440 | 660 |
| Peak Torque | N.m | 1.05 | 2.1 | 3.15 | 4.2 | 6.3 |
| Peak Current | Amps | 9 | 19 | 27 | 35 | 54 |
| Back E.M.F | V/Krpm | 13.7 | 13 | 13.5 | 13.7 | 13.5 |
| Torque Constant | N.m/A | 0.13 | 0.12 | 0.13 | 0.13 | 0.13 |
| Rotor Inertia | g.c㎡ | 400 | 800 | 1200 | 1600 | 2400 |
| Body Length | mm | 71 | 84.5 | 98 | 111.5 | 138.5 |
| Weight | Kg | 1.5 | 1.9 | 2.3 | 2.7 | 4 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25～+70℃ | |||||
| Operating Temperature | -15～+50℃ | |||||
| Working Humidity | 85% or under 85% RH(non condensing) | |||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
|||||
| Altitude | 1000m or under 1000m | |||||
Matching BLDC motor Driver: JKBLS300 JKBLS750
