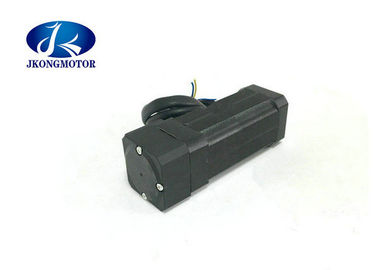

ROHS 2500ppr Brushless Dc Motor 36V 26w BLDC smooth running

ROHS 2500ppr Brushless Dc Motor 36V 26w BLDC smooth running

  • ROHS 2500ppr Brushless Dc Motor 36V 26w BLDC smooth running
  • ROHS 2500ppr Brushless Dc Motor 36V 26w BLDC smooth running
  • ROHS 2500ppr Brushless Dc Motor 36V 26w BLDC smooth running
ROHS 2500ppr Brushless Dc Motor 36V 26w BLDC smooth running
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42BLS04EX1000
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $20 - 45 / Pieces
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000PCS/MONTH
Contact Now
Detailed Product Description
Speed(RPM): 4000rpm Insulation Class: B
Rated Voltage: 24VDC Number Of Poles: 8
Rated Power: 26W - 105 W Rated Torque: 0.0625N.m - 0.25N.m
MOQ: 10pcs
High Light:

2500ppr Brushless Dc Motor

,

2500ppr 36v bldc motor

,

ROHS 36v bldc motor



24V Mini Brushless DC Motor BLDC With Encoder 1000ppr 2500ppr


Product Description Of High Performance Brushless Dc Motor:


  Model
Specification Unit JK42BLS01 JK42BLS02 JK42BLS03 JK42BLS04
 Number Of Phase Phase 3
 Number Of Poles Poles 8
 Rated Voltage VDC 24
 Rated Speed Rpm 4000
 Rated Torque N.m 0.0625 0.125 0.185 0.25
 Rated Current Amps 1.8 3.3 4.8 6.3
 Rated Power W 26 52.5 77.5 105
 Peak Torque N.m 0.19 0.38 0.56 0.75
 Peak Current Amps 5.4 10.6 15.5 20
 Back E.M.F V/Krpm 4.1 4.2 4.3 4.3
 Torque Constant N.m/A 0.039 0.04 0.041 0.041
 Rotor Inertia g.c㎡ 24 48 72 96
 Body Length mm 41 61 81 100
 Weight Kg 0.3 0.45 0.65 0.8
 Sensor Honeywell
 Insulation Class B
 Degree of Protection IP30
 Storage Temperature -25~+70℃
 Operating Temperature -15~+50℃
 Working Humidity 85% or under 85% RH(non condensing)
 Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
 Altitude 1000m or under 1000m
Note: We can also customized products according to customer's special request.

Dimensions of brushless dc motor with encoder :
(Unit=mm)
ROHS 2500ppr Brushless Dc Motor 36V 26w BLDC smooth running 0
