| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK86BLS |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $9 -70 / Pieces | 1 Piece/Pieces (Min. Order) |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 30000PCS/MONTH |
| Speed(RPM): | 1000rpm - 6000rpm | Continuous Current(A): | 1A -18A |
|---|---|---|---|
| Output Power: | 23W - 660W | Type Of Motor: | Brushless Dc Motor |
| Voltage Range: | 12 - 48VDC | Phase: | 3-phase |
| Usage: | Home Appliance，Electric Bicycle, Car, Boat | Type: | Brushless DC Motor |
| MOQ: | 10pcs | ||
| Highlight: | Micro 3 phase brushless dc motor,3 Phase 48v brushless motor,Home Appliance 48v brushless dc motor |
||
48V 23W - 660W Brushless Dc Motor 24V 36V 3Phase 42mm - 86mm Micro Electric Motor 3000rpm
Genaral Specification of Brushless 3 phase dc motor:
|
Winding type |
Delta |
|
Hall effect angle |
120 degree electrical angle |
|
Shaft run out |
0.05mm |
|
Radial play |
0.02mm@450g |
|
End play |
0.08mm@450g |
|
Max. radial force |
220N @ 20mm from the flange |
|
Max. axial force |
60N |
|
Insulation class |
Class B |
|
Dielectric strength |
500VDC for one minute |
|
Insulation resistance |
100MΩMin., 500VDC |

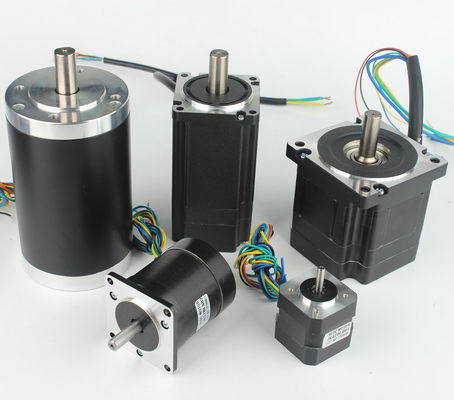

Picture of brushless Dc motor:
Electrical Specification of brushless dc motor:
42mm Brushless dc motor:
| Model | |||||
| Specification | Unit | JK42BLS01 | JK42BLS02 | JK42BLS03 | JK42BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 24 | |||
| Rated Speed | Rpm | 4000 | |||
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Current | Amps | 1.8 | 3.3 | 4.8 | 6.3 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 |
| Peak Current | Amps | 5.4 | 10.6 | 15.5 | 20 |
| Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 |
| Torque Constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 |
| Rotor Inertia | g.c㎡ | 24 | 48 | 72 | 96 |
| Body Length | mm | 41 | 61 | 81 | 100 |
| Weight | Kg | 0.3 | 0.45 | 0.65 | 0.8 |
57mm Brushless dc motor:
| Model | ||||||
| Specification | Unit | JK57BLS005 | JK57BLS01 | JK57BLS02 | JK57BLS03 | JK57BLS04 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 4 | ||||
| Rated Voltage | VDC | 36 | ||||
| Rated Speed | Rpm | 4000 | ||||
| Rated Torque | N.m | 0.055 | 0.11 | 0.22 | 0.33 | 0.44 |
| Rated Current | Amps | 1.2 | 2 | 3.6 | 5.3 | 6.8 |
| Rated Power | W | 23 | 46 | 92 | 138 | 184 |
| Peak Torque | N.m | 0.16 | 0.33 | 0.66 | 1 | 1.32 |
| Peak Current | Amps | 3.5 | 6.8 | 11.5 | 15.5 | 20.5 |
| Back E.M.F | V/Krpm | 7.8 | 7.7 | 7.4 | 7.3 | 7.1 |
| Torque Constant | N.m/A | 0.074 | 0.073 | 0.07 | 0.07 | 0.068 |
| Rotor Inertia | g.c㎡ | 30 | 75 | 119 | 173 | 230 |
| Body Length | mm | 37 | 47 | 67 | 87 | 107 |
| Weight | Kg | 0.33 | 0.44 | 0.75 | 1 | 1.25 |
86mm Brushless dc motor:
|
Model |
JK86BLS58 |
JK86BLS71 |
JK86BLS98 |
JK86BLS125 |
|
Number of poles |
8 |
|||
|
Number of phase |
3 |
|||
|
Rated voltage VDC |
48 |
|||
|
Rated speed RPM |
3000 |
|||
|
Rated torque N.m |
0.35 |
0.7 |
1.4 |
2.1 |
|
Rated power W |
110 |
220 |
440 |
660 |
|
Peak torque N.m |
1.05 |
2.1 |
4.2 |
6.3 |
|
Peak current A |
11 |
19 |
33 |
55 |
|
Line to line resistance ohms |
1.05 |
0.36 |
0.2 |
0.16 |
|
Line to line inductance mH |
2.2 |
1.05 |
0.48 |
0.3 |
|
Torque constant Nm/A |
0.1 |
0.11 |
0.13 |
0.11 |
|
Back E.M.F V/KRPM |
10.5 |
11.5 |
13.5 |
11.5 |
|
Rotor inertia g.cm2 |
400 |
800 |
1600 |
2400 |
|
Body length (L) mm |
58 |
71 |
98 |
125 |
|
Mass Kg |
1.5 |
1.85 |
2.6 |
4 |
