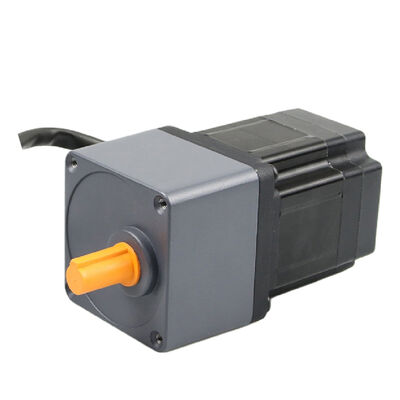

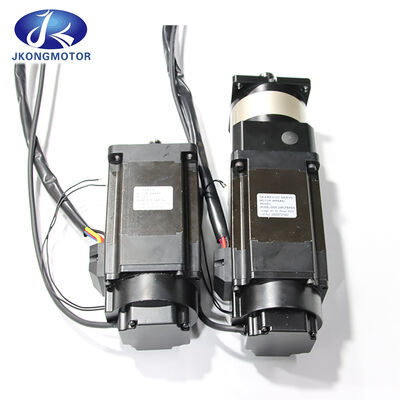

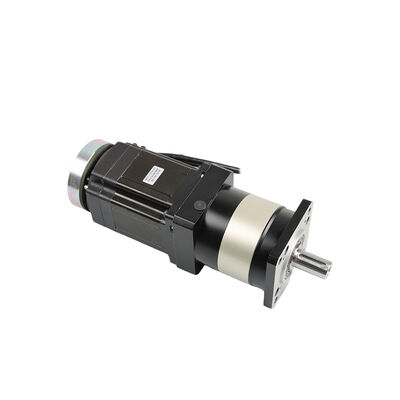

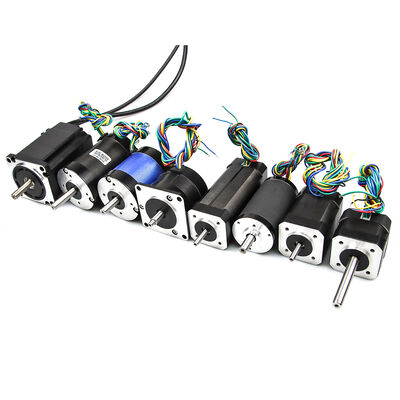

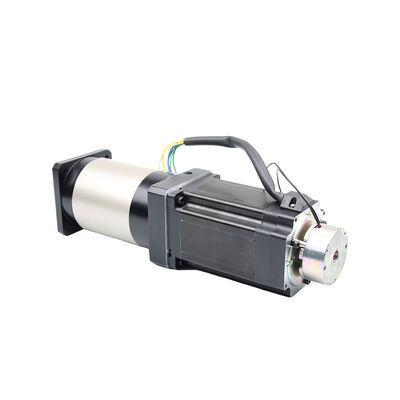

Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver

Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver

  • Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver
  • Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver
  • Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver
  • Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver
  • Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver
Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, REACH, ROHS,CCC, ISO9001
Model Number: 12v 24v 36v 48v 72v 110v 130v Brushless Bldc Motor
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: US$9.5 ~ US$35
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 50000pcs/month
Contact Now
Detailed Product Description
Motor Type: Brushless Bldc Motor With Gearbox Encoder Brakes Poles: 4 /8 /10
Rated Voltage: 12V - 310V Rated Speed: 10rpm - 10000rpm
Rated Power: 10W - 3000W Rated Current: Customized
Type: Brushless DC Motor MOQ: 10pcs
Highlight:

bldc motor

,

brushless dc electric motor



Jkongmotor OEM ODM Customized 33 42 57 60 80 86 110 130mm Brushless Dc Motor with Brake Encoder Gearbox Built in Driver

Application of brushless dc motor

(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)


Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.




1.33BLS SERIES high speed brushless dc motor

Specification Unit Model
JK33BL38-24 JK33BL80-24 JK33BL80-48
Number of poles Poles 4
Number of phases Phases 3
Rated voltage VDC 24 24 48
Rated torque mN.m 22 50 40
Continuous stall torque mN.m 26 60 48
Rated speed RPM 3000 7800 10000
Rated power W 7 40 40
Peak torque mN.m 66 150 120
Peak current A 1.5 5.6 2.9
Line to line resistance ohms@20℃ 14.2 0.86 2.3
Line to line inductance mH 7 0.55 1.45
Torque constant mN.m/A 46.3 27 41.8
Back EMF Vrms/KRPM 3.43 2 3.1
Rotor inertia g.cm2 7.95 23.55 23.55
Motor length mm 38 80 80
Weight Kg 0.085 0.2 0.2



2.42BLS SERIES high speed brushless dc motor

    Model
Specification Unit JK42BLS01 JK42BLS02 JK42BLS03 JK42BLS04
 Number Of Phase Phase 3
 Number Of Poles Poles 8
 Rated Voltage VDC 24
 Rated Speed Rpm 4000
 Rated Torque N.m 0.0625 0.125 0.185 0.25
 Rated Current Amps 1.8 3.3 4.8 6.3
 Rated Power W 26 52.5 77.5 105
 Peak Torque N.m 0.19 0.38 0.56 0.75
 Peak Current Amps 5.4 10.6 15.5 20
 Back E.M.F V/Krpm 4.1 4.2 4.3 4.3
 Torque Constant N.m/A 0.039 0.04 0.041 0.041
 Rotor Inertia g.c㎡ 24 48 72 96
 Body Length mm 41 61 81 100
 Weight Kg 0.3 0.45 0.65 0.8
 Sensor Honeywell
 Insulation Class B
 Degree of Protection IP30
 Storage Temperature -25～+70℃
 Operating Temperature -15～+50℃
 Working Humidity 85% or under 85% RH(non condensing)
 Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
 Altitude 1000m or under 1000m



3.57BLS SERIES of high rpm brushless dc electric motor

    Model
Specification Unit JK57BLS005 JK57BLS01 JK57BLS02 JK57BLS03 JK57BLS04
Number Of Phase Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 36
Rated Speed Rpm 4000
Rated Torque N.m 0.055 0.11 0.22 0.33 0.44
Rated Current Amps 1.2 2 3.6 5.3 6.8
Rated Power W 23 46 92 138 184
Peak Torque N.m 0.16 0.33 0.66 1 1.32
Peak Current Amps 3.5 6.8 11.5 15.5 20.5
Torque Constant N.m/A 0.074 0.073 0.07 0.07 0.068
Rotor Inertia g.cm 30 75 119 173 230
Body Length mm 37 47 67 87 107
Weight Kg 0.33 0.44 0.75 1 1.25
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity 85% or under 85% RH(non condensing)
Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
Altitude 1000m or under 1000m



4.60BLS SERIES of high rpm brushless dc electric motor

Specification Unit Model
JK60BLS01 JK60BLS02 JK60BLS03 JK60BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.3 0.6 0.9 1.2
Rated Current Amps 2.8 5.2 7.5 9.5
Rated Power W 94 188 283 377
Peak Torque N.m 0.9 1.8 2.7 3.6
Peak Current Amps 8.4 15.6 22.5 28.5
Back E.M.F V/Krpm 12.1 12.6 12.4 13.3
Torque Constant N.m/A 0.116 0.12 0.118 0.127
Rotor Inertia kg.cm2 0.24 0.48 0.72 0.96
Body Length mm 78 99 120 141
Weight Kg 0.85 1.25 1.65 2.05
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
Working Humidity 85% RH or below (no condensation)
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000 meters or less



5. 80BLS SERIES of high rpm brushless dc electric motor

Specification Unit Model
JK80BLS01 JK80BLS02 JK80BLS03 JK80BLS04
Number Of Phase Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4
Rated Current Amps 3 5.5 8 10.5
Rated Power W 110 220 330 440
Peak Torque N.m 1.05 2.1 3.15 4.2
Peak Current Amps 9 16.5 24 31.5
Back E.M.F V/Krpm 13.5 13.3 13.1 13
Torque Constant N.m/A 0.13 0.127 0.126 0.124
Rotor Inertia g.cm2 210 420 630 840
Body Length mm 78 98 118 138
Weight Kg 1.4 2 2.6 3.2
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
Working Humidity 85% RH or below (no condensation)
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000 meters or less





6. 86BLS SERIES of high rpm brushless dc electric motor

Specification Unit Model
JK86BLS58 JK86BLS71 JK86BLS84 JK86BLS98 JK86BLS125
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4 2.1
Rated Current Amps 3 6.3 9 11.5 18
Rated Power W 110 220 330 440 660
Peak Torque N.m 1.05 2.1 3.15 4.2 6.3
Peak Current Amps 9 19 27 35 54
Back E.M.F V/Krpm 13.7 13 13.5 13.7 13.5
Torque Constant N.m/A 0.13 0.12 0.13 0.13 0.13
Rotor Inertia g.cm2 400 800 1200 1600 2400
Body Length mm 71 84.5 98 111.5 138.5
Weight Kg 1.5 1.9 2.3 2.7 4
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
Working Humidity 85% RH or below (no condensation)
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000 meters or less



7. 110BLS SERIES of high rpm brushless dc electric motor

Specification Unit Model
JK110BLS50 JK110BLS75 JK110BLS100 JK110BLS125
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 310
Rated Speed Rpm 3000
No Load Speed Rpm 3400
Rated Torque N.m 2.38 3.3 5 6.6
Rated Current Amps 2.7 3.7 5.6 7.7
Rated Power KW 0.75 1.03 1.57 2.07
No Load Current Amps 0.5 0.6 1.5 1
Back E.M.F V/Krpm 91.1 91.1 91.1 88.6
Torque Constant N.m/A 0.87 0.87 0.87 0.845
Body Length mm 134 159 184 209
Sensor Honeywell
Insulation Class H



8. 130BLS SERIES of high rpm brushless dc electric motor

Specification Unit Model
JK130BLS115 JK130BLS120 JK130BLS140 JK130BLS165 JK130BLS190
Number Of Phase Phase 3
Number Of Poles Poles 10
Rated Voltage VDC 310
Rated Speed Rpm 3000
Rated Torque N.m 2.39 3.18 4.77 7 11.94
Rated Current Amps 2.8 3.8 5.7 8.5 9.5
Rated Power KW 0.75 1 1.5 2.2 2.5
Peak Torque N.m 7.1 9.5 14 21 35
Peak Current Amps 8.5 11.5 17 25 28
Back E.M.F V/Krpm 89.1 88.1 86.1 87.3 130.8
Torque Constant N.m/A 0.85 0.84 0.82 0.83 1.25
Rotor Inertia Kg.c㎡ 5.9 7.4 9.7 13.5 19.7
Body Length mm 115 120 140 165 190
Weight Kg 6.1 6.5 7 8.5 11
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25～+70℃
Operating Temperature -15～+50℃
Working Humidity 85% RH or below (no condensation)
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000 meters or less
