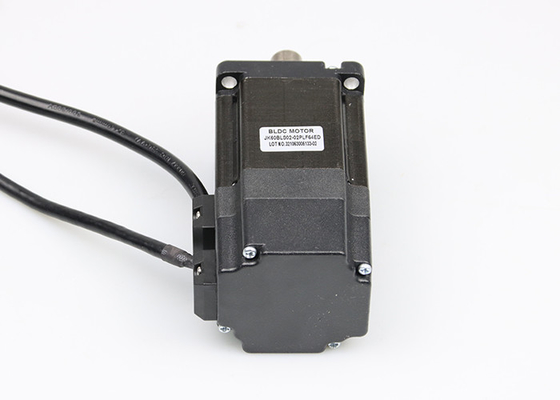

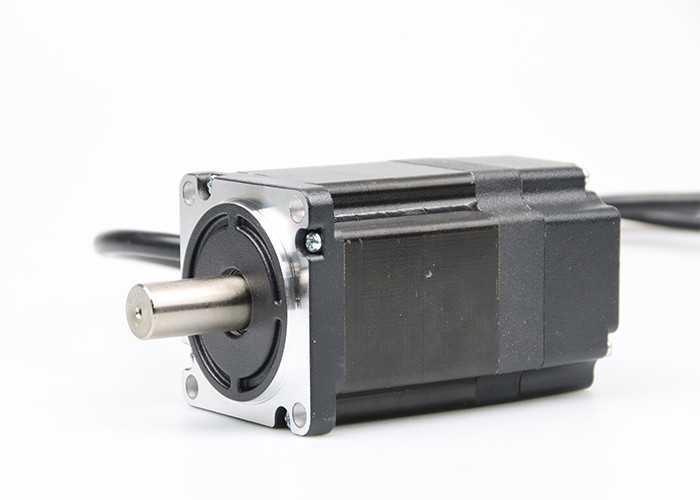

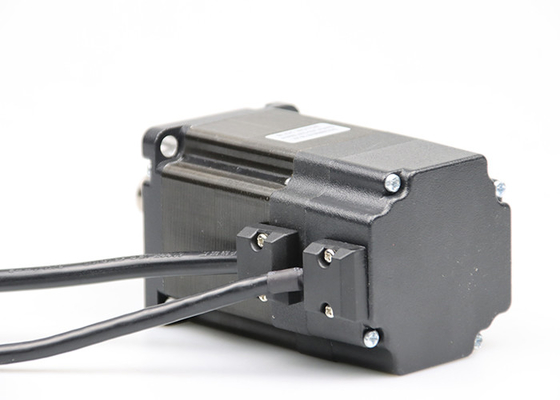

3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder

3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder

3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder
video
3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK60BLS04SV1000
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~5PCS
Price: US$45~US$85
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Rated Voltage: 48V Rated Speed: 3000rpm
Rated Power: 377W Rated Torque: 1.2N.m
Rated Current: 9.5A Insulation Class: B
Usage: Home Appliance, Fan, Electric Bicycle, Car, Boat Keywords: Brushless Motor
High Light:

bldc motor

,

brushless dc electric motor

48V Brushless DC Motor High Speed 3000RPM High Power 400w BLDC Motor


1. Genaral Specification of 3 phase brushless DC motor controller



 Item  Specification
 Winding type  Star
 Hall effect angle  120 degree electrical angle
 Shaft run out  0.025mm
 Radial play  0.02mm@450g
 End play  0.08mm@450g
 Max.radial force  115N @20mm form the flange
 Max.axial force  45N
 Insulation class  Class B
 Dielectric strength  500VDC for one minute
 Insulation resistance  100MΩ Min.,500VDC





2. Electrical Specification of 48V bldc motor:



    Model
Specification Unit JK60BLS01 JK60BLS02 JK60BLS03 JK60BLS04
 Number Of Phase Phase 3
 Number Of Poles Poles 8
 Rated Voltage VDC 48
 Rated Speed Rpm 3000
 Rated Torque N.m 0.3 0.6 0.9 1.2
 Rated Current Amps 2.8 5.2 7.5 9.5
 Rated Power W 94 188 283 377
 Peak Torque N.m 0.9 1.8 2.7 3.6
 Peak Current Amps 8.4 15.6 22.5 28.5
 Back E.M.F V/Krpm 12.1 12.6 12.4 13.3
 Torque Constant N.m/A 0.116 0.12 0.118 0.127
 Rotor Inertia Kg.c㎡ 0.24 0.48 0.72 0.96
 Body Length mm 78 99 120 141
 Weight Kg 0.85 1.25 1.65 2.05
 Sensor Honeywell
 Insulation Class B
 Degree of Protection IP30
 Storage Temperature -25~+70℃
 Operating Temperature -15~+50℃
 Working Humidity 85% or under 85% RH(non condensing)
 Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
 Altitude 1000m or under 1000m


3. Dimensions: (Unit=mm)

 3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder 0



3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder 1

3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder 2

3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder 3

3 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder 43 phase 3000RPM High Power 400w Black Small Brushless Dc Motor with encoder 5



FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.



Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.



Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.



Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.



Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
