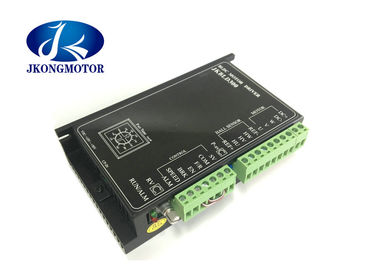

JKBLD300 Brushless DC Motor Driver 24VDC / 48VDC 0-300W Light Weight

JKBLD300 Brushless DC Motor Driver 24VDC / 48VDC 0-300W Light Weight

JKBLD300 Brushless DC Motor Driver 24VDC / 48VDC 0-300W Light Weight
video
JKBLD300 Brushless DC Motor Driver 24VDC / 48VDC 0-300W Light Weight
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JKBLD300
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$22~US$30
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Model No.: JKBLD300 Supply Voltage: 18VDC - 50VDC
Current: 0A - 35A Weight: 350g
Motor Hall Sensor Angle: 120°/240° Suitable Motor Speed: 0-20000rpm
Highlight:

bldc motor driver

,

3 phase bldc motor driver



24VDC 48VDC Brushless Dc Motor Driver JKBLD300 For 0-300W BLDC Motor





Electrical Specifications:



 Parameter Min Rated Max Unit
 Motor Hall Sensor Angle 120°/240°
 DC Power Input 18 48 50 V
 Drive Current Output 0 15 35 A
 Suitable Motor Speed 0   20000 rpm
 Hall Sensor Voltage 4.5 5 5.5 V
 Hall Sensor Current   20   mA
 External Potentiometer   10K   Ω





Connection Definition:



 Mark  Definition
 DC+/DC-  DC Power Input (DC24V~DC48V)
 U,V,W  Motor lead wire
 Hu,Hv,Hw  Hall sensor lead wire
 REF+  Hall sensor power supply +
 REF-  Hall sensor power supply -
 VCC  External potentiometer power supply +
 SV  External potentiometer
 COM  Public (low level)
 F/R  Direction: High level/CW Low Level/CCW
 EN  Enable: High Level/Stop Low Level/Run
 BRK  Quick Brake: High Level/Stop Low Level/Run
 SPEED  Speed signal output
 ALARM  Alarm signal output



JKBLD300 Brushless DC Motor Driver 24VDC / 48VDC 0-300W Light Weight 0
