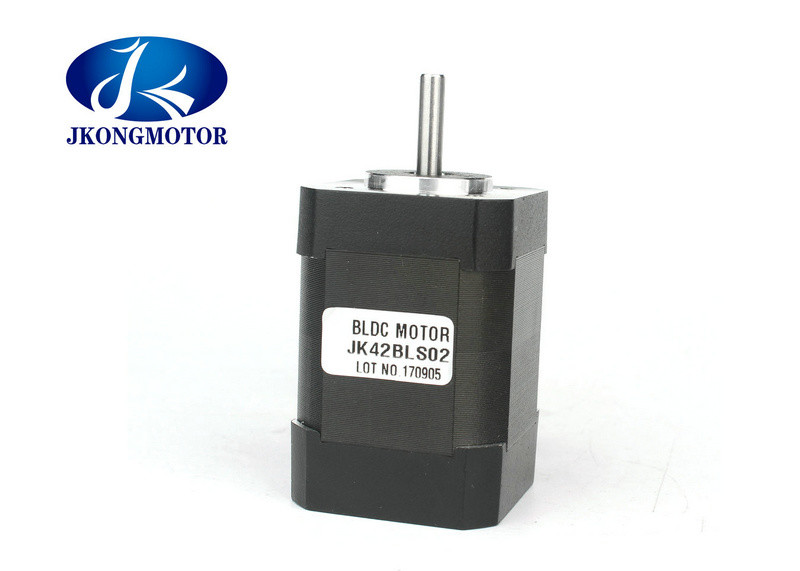

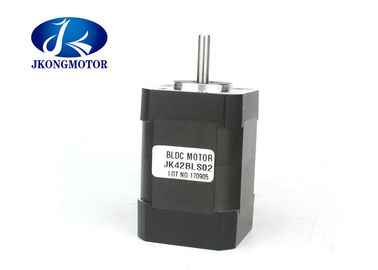

50W 24v 42mm Brushless DC Motor 4000Rpm With Driver JKBLD120 12V -30V 0A-8A

50W 24v 42mm Brushless DC Motor 4000Rpm With Driver JKBLD120 12V -30V 0A-8A

  • 50W 24v 42mm Brushless DC Motor 4000Rpm With Driver JKBLD120 12V -30V 0A-8A
  • 50W 24v 42mm Brushless DC Motor 4000Rpm With Driver JKBLD120 12V -30V 0A-8A
50W 24v 42mm Brushless DC Motor 4000Rpm With Driver JKBLD120 12V -30V 0A-8A
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42BLS02+ JKBLD120
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $29 -39 / Sets | 1 Piece/Pieces (Min. Order)
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Phase: 3 Holding Torque: 0.125N.m
Current / Phase: 0.45A Rated Power: 52.5W
Rated Voltage: 24V Rated Speed: 4000Rpm
Motor Poles: 8 Body Length: 61mm
MOQ: 10pcs
High Light:

brushless dc electric motor


micro brushless dc motor


42mm Brushless Dc Motor 50W 24V 400RPM With Driver JKBLD-120


A motor converts supplied electrical energy into mechanical energy. Various types of motors are in common use. Among these, brushless DC motors (BLDC) feature high efficiency and excellent controllability, and are widely used in many applications. The BLDC motor has power-saving advantages relative to other motor types.

Product Description:

Winding type


Hall effect angle

120 degree electrical angle

Shaft run out




End Play


Dielectric strength

500VDC for onr minute

Max radial force 75N@20mm from the flange
Max axial force 15N

Insulation resistance




Electrical Specification:




Number of poles


Number of phase


Rated voltage      VDC


Rated speed      RPM


Rated torque     N.m


Rated power       W


Peak torque      N.m


Peak current        A


Line to line resistance  ohms


Line to line inductance   mH


Torque constant      Nm/A


Back E.M.F        Vrms/KRPM




Motor Demension:





The model of brushless dc motor drive is suitable for use in power for 125 va and under three-phase brushless dc motor. This product design adopts advanced DSP control technology, with large torque, low noise, low vibration, fast, Stop-start features, at the same time have the PID current and speed closed loop control, overvoltage, undervoltage, over current, over temperature Protection function, can realize PWM external input, analog input speed regulating a variety of ways.


Ideal Applications for BLDC Motors


We’ve seen that BLDC motors offer high efficiency and controllability, and that they have a long operating life. They are widely used in devices that run continuously. They have long been used in washing machines, air conditioners, and other consumer electronics; and more recently, they are appearing in fans, where their high efficiency has contributed to a significant reduction in power consumption.


They are also being used to drive vacuum machines. In one case, a change in the control program resulted in a large jump in rotational speed—an example of the superlative controllability offered by these motors.


BLDC motors are also being used to spin hard disc drives, where their durability keeps the drives operating dependably over the long term, while their power efficiency contributes to energy reduction in an area where this is becoming increasingly important.


Toward Wider Usage in the Future


We can expect to see BLDC motors used in a wider range of applications in the future. For example, they will probably be widely used to drive service robots—small robots that deliver services in fields other than manufacturing. One might think that stepper motors would be more suitable in this type of application, where pulses could be used to precisely control positioning. But BLDC motors are better suited to controlling the force. And with a stepper motor, holding the position of a structure such as a robot arm would require a relatively large and continuous current. With a BLDC motor, all that would be required is a current proportionate to the external force—allowing for more power-efficient control. BLDC motors may also be replacing simple brushed dc motors in golf carts and mobility carts. In addition to their better efficiency, BLDC motors can also deliver more precise control—which in turn can further extend battery life.


BLDC motors are also ideal for drones. Their ability to deliver precision control makes them especially suited for multirotor drones, where the drone’s attitude is controlled by precisely controlling the rotational speed of each rotor.
