| Shaft: | Single | Rated Voltage: | 36V |
|---|---|---|---|
| Rated Speed: | 4000rpm | Rated Power: | 23W-184W |
| Rated Torque: | 55mN.m-0.44N.m | Rated Current: | 1.2A-6.8A |
| Body Length: | 37mm-107mm | Weight: | 0.33kg-1.25kg |
| Type: | Brushless DC Motor | Commutation: | Brushless |
| MOQ: | 10pcs | ||
| Highlight: | bldc motor,micro brushless dc motor |
||

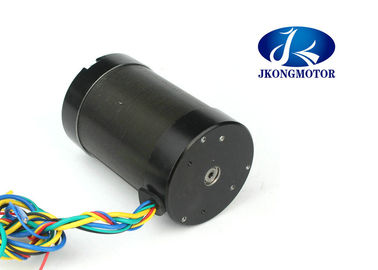

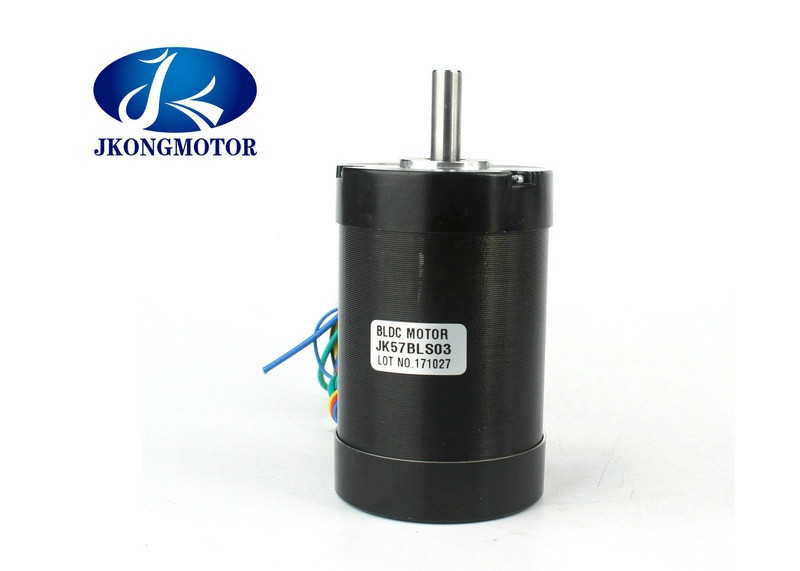

Brushless 3 Phase Dc Motor NEMA23 Round Brushless Dc Motor 4poles 36v 4000rpm For Cnc Machine
1. Descrition of NEMA23 BLDC motor
Rated Voltage : 24V-48V
Rated Speed : 1000RPM - 4000RPM
2. Genaral Specification of brushless dc motor
| Item | Specification |
| Winding type | Star |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 75N ＠20mm form the flange |
| Max.axial force | 15N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
3. Electrical Specification of brushless
| Model | ||||||
| Specification | Unit | JK57BLS005 | JK57BLS01 | JK57BLS02 | JK57BLS03 | JK57BLS04 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 4 | ||||
| Rated Voltage | VDC | 36 | ||||
| Rated Speed | Rpm | 4000 | ||||
| Rated Torque | N.m | 0.055 | 0.11 | 0.22 | 0.33 | 0.44 |
| Rated Current | Amps | 1.2 | 2 | 3.6 | 5.3 | 6.8 |
| Rated Power | W | 23 | 46 | 92 | 138 | 184 |
| Peak Torque | N.m | 0.16 | 0.33 | 0.66 | 1 | 1.32 |
| Peak Current | Amps | 3.5 | 6.8 | 11.5 | 15.5 | 20.5 |
| Back E.M.F | V/Krpm | 7.8 | 7.7 | 7.4 | 7.3 | 7.1 |
| Torque Constant | N.m/A | 0.074 | 0.073 | 0.07 | 0.07 | 0.068 |
| Rotor Inertia | g.c㎡ | 30 | 75 | 119 | 173 | 230 |
| Body Length | mm | 37 | 47 | 67 | 87 | 107 |
| Weight | Kg | 0.33 | 0.44 | 0.75 | 1 | 1.25 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25～+70℃ | |||||
| Operating Temperature | -15～+50℃ | |||||
| Working Humidity | 85% or under 85% RH(non condensing) | |||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
|||||
| Altitude | 1000m or under 1000m | |||||
Matching Stepper motor Driver: JKBLS120 JKBLS300
4. Dimensions: (Unit=mm)
5.Wiring Diagram:
