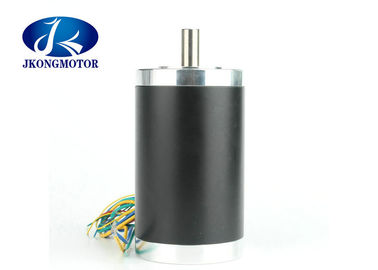

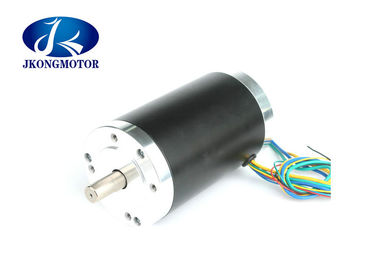

high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft

high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft

  • high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft
  • high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft
high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK 80BLS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~3PCS
Price: US$19~US$48
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: Single Poles: 8
Rated Voltage: 48V Rated Speed: 3000rpm
Rated Power: 110W - 440W Rated Torque: 0.35N.m - 1.4N.m
Rated Current: 3A - 10.5A Motor Length: 78mm - 138mm
High Light:

bldc motor

,

brushless dc electric motor



80mm Round Brushless Dc Motor 48V 310V 3000RPM With 120Degree Electrical Angle


1. Descrition of brushless dc electric motor:
Rated Voltage : 48V - 310V

Rated Speed : 1000RPM - 4000RPM



2. Genaral Specification of 80mm round brushless dc motor



 Item  Specification
 Winding type  Star
 Hall effect angle  120 degree electrical angle
 Shaft run out  0.025mm
 Radial play  0.02mm@450g
 End play  0.08mm@450g
 Max.radial force  115N @20mm form the flange
 Max.axial force  45N
 Insulation class  Class B
 Dielectric strength  500VDC for one minute
 Insulation resistance  100MΩ Min.,500VDC





3. Electrical Specification of 80mm brushless dc electric motor:



    Model
Specification Unit JK80BLS01 JK80BLS02 JK80BLS03 JK80BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4
Rated Current Amps 3 5.5 8 10.5
Rated Power W 110 220 330 440
Peak Torque N.m 1.05 2.1 3.15 4.2
Peak Current Amps 9 16.5 24 31.5
Back E.M.F V/Krpm 13.5 13.3 13.1 13
Torque Constant N.m/A 0.13 0.127 0.126 0.124
Rotor Inertia g.c㎡ 210 420 630 840
Body Length mm 78 98 118 138
Weight Kg 1.4 2 2.6 3.2
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity 85% or under 85% RH(non condensing)
Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
Altitude 1000m or under 1000m



Matching BLDC motor Driver: JKBLS300 JKBLS750

4. Dimensions of 80mm round bldc MOTOR: (Unit=mm)

high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft 0
5. Applications Of brushless dc motor:
Our products are widely used in

  • 3d printers
  • CNC routers
  • Engraving Machines
  • Stage lighting control
  • Security surveillance
  • Video equipment
  • Laserworkstation
  • Carving machine
  • Office automation
  • Smart toy
  • Digital controlled machinery
  • Medical instrument
  • Other automatic equipment
