| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | NEMA17 JK42BLS |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$9.5~US$25.5 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Name: | Small Brushless Dc Motor | Poles: | 8 |
|---|---|---|---|
| Rated Voltage: | 12V - 24V | Rated Speed: | 2000rpm - 5000rpm |
| Rated Power: | 26W - 105W | Rated Current: | 1.8A - 6.3A |
| Shaft: | Diameter 5mm | Description: | High Performance Brushless Dc Motor |
| Usage: | Home Appliance,Coffee Machine,Medical Equipment | Keywords: | Brushless Motor |
| MOQ: | 10pcs | ||
| High Light: | bldc motor,micro brushless dc motor |
||

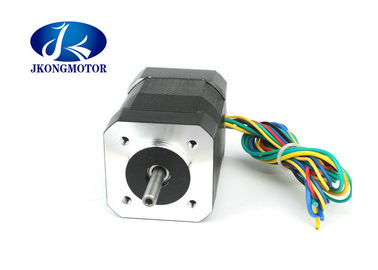

NEMA17 42mm Brushless Dc Motor 24V 3 phase With High Speed 4000rpm
1. 3 Phase Brushless Dc Motor Application
(Stepper motor, electrical motor,brake motor,motor driver,gear motor,bldc motor,brushless motor)
Textile machinery, engraving machine
Security, 4g antenna, solar energy
Medical equipment, industrial automation
Automobile, office automation
Printing equipment, advertising equipment etc.
2.Small High Torque Dc Motor Genaral Specification
| Item | Specification |
| Winding type | Delta |
| Hall effect angle | 120 degree electrical angle |
| Shaft run out | 0.025mm |
| Radial play | 0.02mm＠450g |
| End play | 0.08mm＠450g |
| Max.radial force | 28N ＠20mm form the flange |
| Max.axial force | 10N |
| Insulation class | Class B |
| Dielectric strength | 500VDC for one minute |
| Insulation resistance | 100MΩ Min.,500VDC |
3. High Speed Dc Motor Electrical Specification:
| Model | |||||
| Specification | Unit | JK42BLS01 | JK42BLS02 | JK42BLS03 | JK42BLS04 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 24 | |||
| Rated Speed | Rpm | 4000 | |||
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Current | Amps | 1.8 | 3.3 | 4.8 | 6.3 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 |
| Peak Current | Amps | 5.4 | 10.6 | 15.5 | 20 |
| Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 |
| Torque Constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 |
| Rotor Inertia | g.c㎡ | 24 | 48 | 72 | 96 |
| Body Length | mm | 41 | 61 | 81 | 100 |
| Weight | Kg | 0.3 | 0.45 | 0.65 | 0.8 |
| Sensor | Honeywell | ||||
| Insulation Class | B | ||||
| Degree of Protection | IP30 | ||||
| Storage Temperature | -25～+70℃ | ||||
| Operating Temperature | -15～+50℃ | ||||
| Working Humidity | 85% or under 85% RH(non condensing) | ||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
||||
| Altitude | 1000m or under 1000m | ||||
Matching Brushless Dc motor Driver: JKBLS70 JKBLS120 JKBLS300
4. Dimensions Of 42mm Brushless DC Motor: (Unit=mm)
5.
