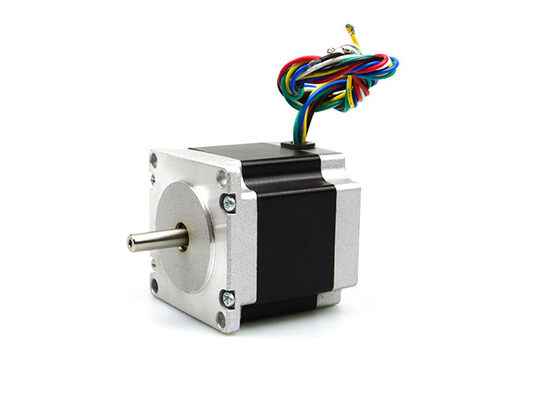

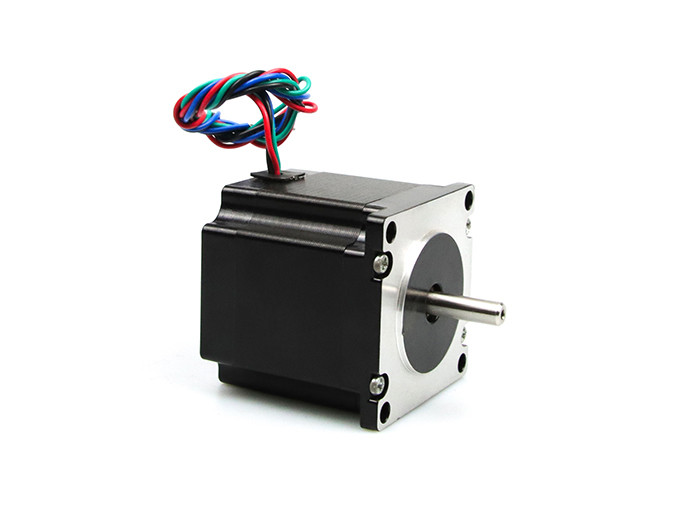

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine
video
76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57HS76-2804
Payment & Shipping Terms:
Minimum Order Quantity: 3PCS~10PCS
Price: US$10.6~US$13.6
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Leads: 4
Current: 2.8A Holding Torque: 2.0N.m
Step Angle: 1.8 Degree Shaft: 6.35/8mm
Phase Resistance: 1.1Ω Phase Inductance: 3.6mH
Voltage: 3.6v Phase: 2
Shaft Length: 21mm Driver: DM542/JKD5056S
High Light:

CNC nema 23 76mm motor

,

57BYGH311 NEMA23 Stepper Motor

,

Engraving Machine 57BYGH311 Motor

Length 76mm 57BYGH311 2 Phase 20kg.Cm Engraving Machine NEMA 23 Stepper Motor​



Stepper motors are commonly recommended for applications that are cost-sensitive and low maintenance. CNC stepping motors provide stability and flexibility. This stepping motor is a hybrid 2 phase stepping motor for cnc router machine movement driving.


1.Genaral Specification of 86mm hybrid stepper motor:


1.8 Step Motor Features:

  • Model: 57BYGH311 (42BYGH, 85BYGH, 86BYGH optional)
  • Stepping angle: 1.8°
  • Voltage: 3.6V
  • Current: 3A
  • Resistance (Ohms): 1.2
  • Inductance (mH): 2.2
  • Phase: 2 phase
  • Max static torque: 15kg/cm
  • Diameter for the center shaft: 8mm or 6.35mm
  • Net Weight: 1.1kg
  • Temperature Rise: 80° Max
  • Ambient Temperature: -20° ~+50°
  • Insulation Resistance: 100 MΩ Min., 500VDC
  • Dielectric Strength: 50Hz 1 Minute 500V Min
  • Shaft Radial Play: 0.02Max
  • Shaft Axial Play: 0.1-0.3



2.Electrical Specification of Nema23 stepper motors:



Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. g.cm g.cm76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 0 Kg
JK57HS41-1006 1.8 41 1 7.1 8 0.48 6 250 150 0.47
JK57HS41-2008 1.8 41 2 1.4 1.4 0.39 8 250 150 0.47
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-1006 1.8 51 1 6.6 8.2 0.72 6 300 230 0.59
JK57HS51-2008 1.8 51 2 1.8 2.7 0.9 8 300 230 0.59
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2006 1.8 56 2 1.8 2.5 0.9 6 350 280 0.68
JK57HS56-2108 1.8 56 2.1 1.8 2.5 1 8 350 280 0.68
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS76-3006 1.8 76 3 1 1.6 1.35 6 600 440 1.1
JK57HS76-3008 1.8 76 3 1 1.8 1.5 8 600 440 1.1
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS82-4008 1.8 82 4 0.8 1.8 2 8 1000 600 1.2
JK57HS82-4204 1.8 82 4.2 0.7 2.5 2.2 4 1000 600 1.2
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4
JK57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4

  Above only for representative products, products of special request can be made according to the customer request.



3.Drawing of JK57HS76 stepper motor:


  76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 1

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 2

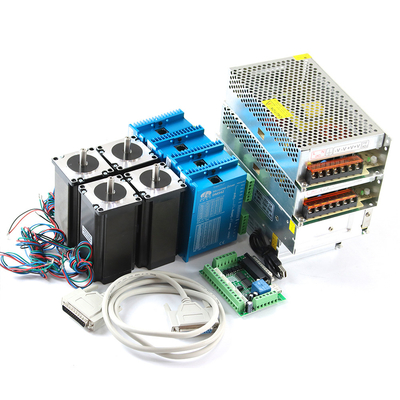

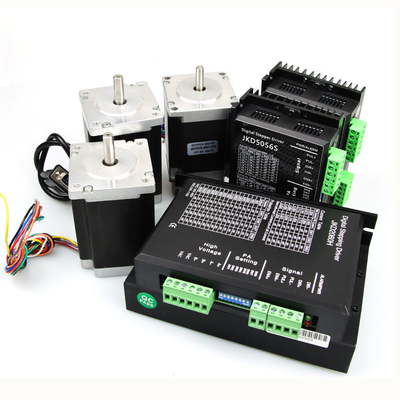

4. The motor with driver kit : JK57HS76 + DM542

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 3

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 4





5.Produce equipment:

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 5

6.Production Process:
76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 6

7.Advantages of hybrid Step Motor:



The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   8.Applications of electric motor:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 7

76mm 57BYGH311 2 Phase 20kg.Cm NEMA23 Stepper Motor For Engraving Machine 8
