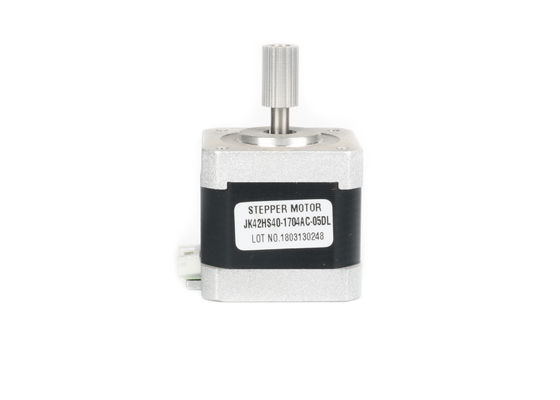

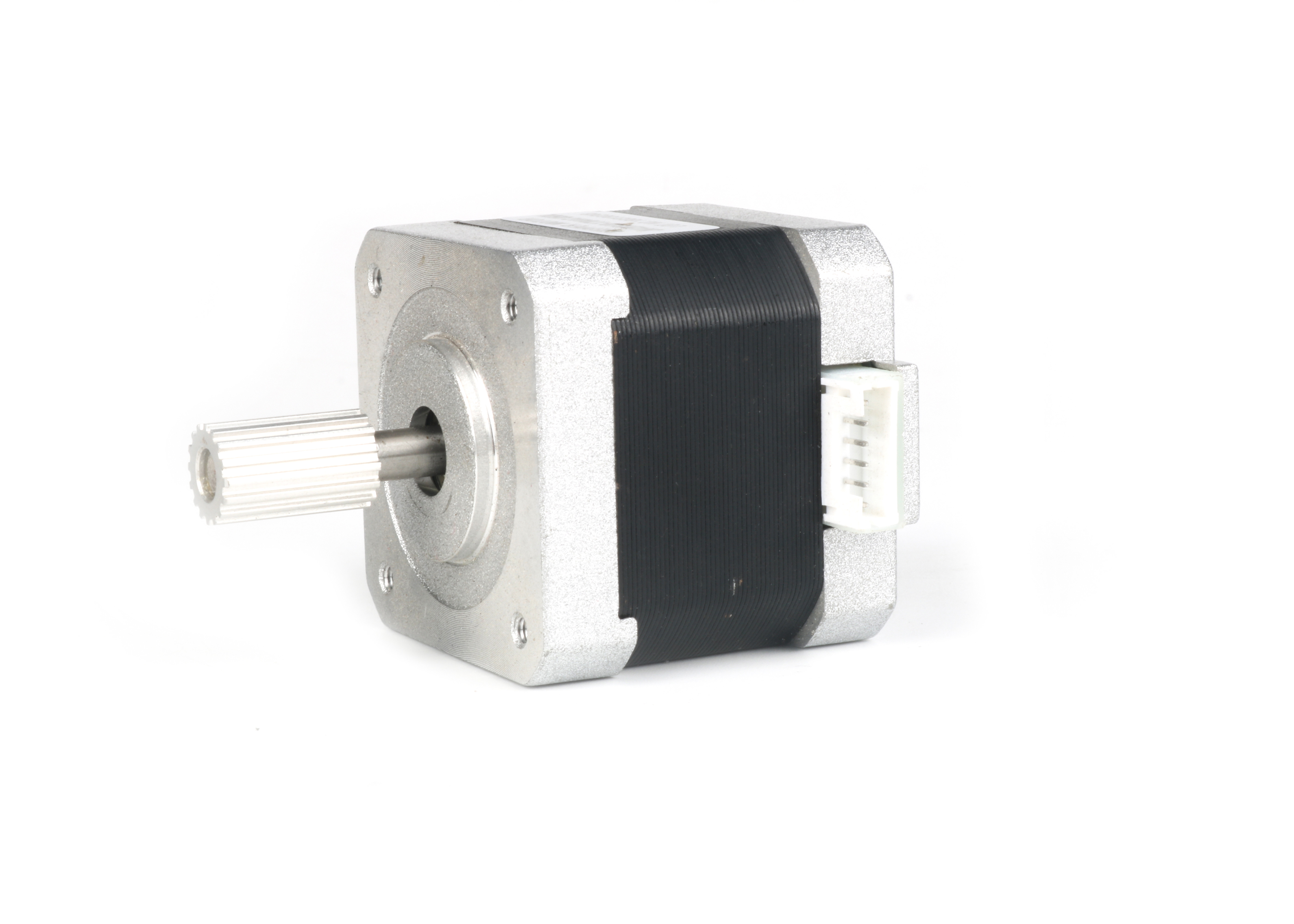

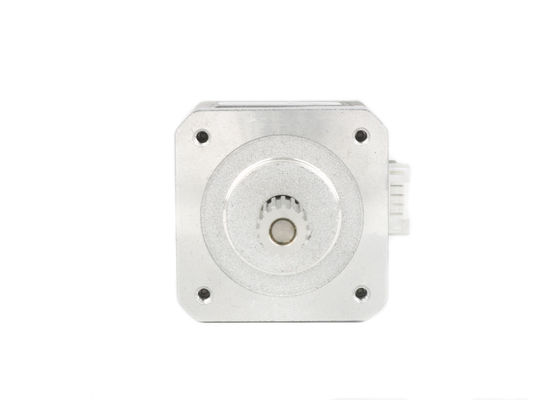

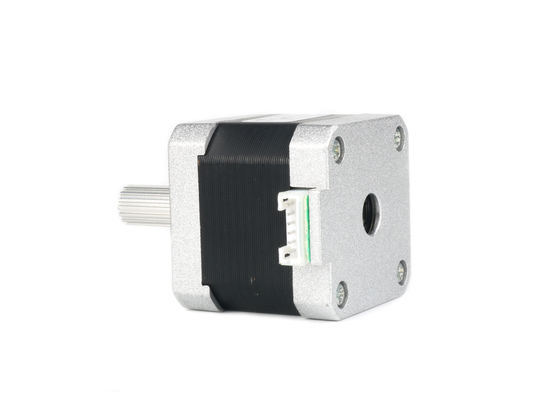

1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor With Pulley

1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor With Pulley

1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor  With Pulley
video
1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor  With Pulley
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42HS40-1704AC-05DL
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~5PCS
Price: US$4.5~US$15
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Leads: 4
Current: 1.7A Holding Torque: 4.2kg.cm
Step Angle: 1.8 Degree Shaft: 5mm
Phase Resistance: 1.5Ω Phase Inductance: 2.3mH
Voltage: 2.55v Phase: 2
High Light:

Hybrid Stepper Motor with pulley

,

Nema17 Hybrid Stepper Motor

,

4 leads nema 17 stepper motor

1.8deg 1.7A 4.2kg.cm 2.55v 42mm Nema17 stepper motor with pulley



Stepping motor is an actuator that converts electrical pulses into angular displacement. In layman's terms: When the stepper driver receives a pulse signal, it drives the stepper motor to rotate a fixed angle (ie step angle) in the set direction. You can control the angular displacement by controlling the number of pulses, so as to achieve the purpose of accurate positioning; at the same time, you can control the speed and acceleration of the motor rotation by controlling the pulse frequency to achieve the purpose of speed regulation.



1.Genaral Specification of nema 17 stepper motors:

  • Step angle: 1.8°
  • Temperature rise: below 80 ℃
  • Ambient temperature: -20 ℃ ~ + 50 ℃
  • Insulation resistance: minimum 100MΩ, 500VDC
  • Dielectric strength: 500VAC for 1 minute
  • Shaft radial clearance: 0.02 max (450 g load)
  • Shaft axial clearance: 0.08Max. (450 g load)
  • Maximum radial force: 28N (20mm from flange)
  • Maximum axial force: 10N
  • size: Approximately 42x42x40mm

2.Electrical Specification of 42mm stepper moror:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. g.cm g.cm² Kg
JK42HS25-0404 1.8 25 0.4 24 36 1.8 4 75 20 0.15
JK42HS34-1334 1.8 34 1.33 2.1 2.5 2.2 4 120 34 0.22
JK42HS40-1684 1.8 40 1.68 1.65 3.2 3.6 4 150 54 0.28
JK42HS48-1684 1.8 48 1.68 1.65 2.8 4.4 4 260 68 0.35
JK42HS60-1004 1.8 60 1.0 8 13 7.5 4 280 102 0.5





3.Drawing of 42HS step motor:

1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor  With Pulley 0



4.Produce equipment:



1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor  With Pulley 1



5.Production Process:

1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor  With Pulley 2



6.Advantages of Hybrid Stepper Motor



  • The motor is simple in construction, reliable.
  • At the standstill condition, the motor has full torque.
  • The motors are less costly.
  • They require little maintenance.
  • The stepper motor has an excellent and accurate starting, stopping and reversing response.

7.Applications of step motors:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.

1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor  With Pulley 3

1.8deg 1.7A 4.2kg.Cm 2.55v 42mm Nema17 Hybrid Stepper Motor  With Pulley 4
