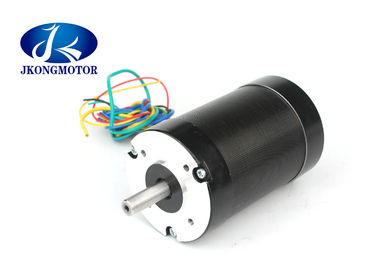

high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft

high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft

  • high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft
  • high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft
  • high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft
high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK 80BLS
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS~3PCS
Price: US$19~US$48
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Shaft: Single Poles: 8
Rated Voltage: 48V Rated Speed: 3000rpm
Rated Power: 110W - 440W Rated Torque: 0.35N.m - 1.4N.m
Rated Current: 3A - 10.5A Motor Length: 78mm - 138mm

80mm Round Brushless Dc Motor 48V 310V 3000RPM With 120Degree Electrical Angle


1. Descrition of brushless dc electric motor:
Rated Voltage : 48V - 310V

Rated Speed : 1000RPM - 4000RPM



2. Genaral Specification of 80mm round brushless dc motor



 Item  Specification
 Winding type  Star
 Hall effect angle  120 degree electrical angle
 Shaft run out  0.025mm
 Radial play  0.02mm@450g
 End play  0.08mm@450g
 Max.radial force  115N @20mm form the flange
 Max.axial force  45N
 Insulation class  Class B
 Dielectric strength  500VDC for one minute
 Insulation resistance  100MΩ Min.,500VDC





3. Electrical Specification of 80mm brushless dc electric motor:



    Model
Specification Unit JK80BLS01 JK80BLS02 JK80BLS03 JK80BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 48
Rated Speed Rpm 3000
Rated Torque N.m 0.35 0.7 1.05 1.4
Rated Current Amps 3 5.5 8 10.5
Rated Power W 110 220 330 440
Peak Torque N.m 1.05 2.1 3.15 4.2
Peak Current Amps 9 16.5 24 31.5
Back E.M.F V/Krpm 13.5 13.3 13.1 13
Torque Constant N.m/A 0.13 0.127 0.126 0.124
Rotor Inertia g.c㎡ 210 420 630 840
Body Length mm 78 98 118 138
Weight Kg 1.4 2 2.6 3.2
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity 85% or under 85% RH(non condensing)
Working Environment outdoor(no direct sunlight),Non-corrosive Gas,
Non-inflammable gas, No oil fog, No dust
Altitude 1000m or under 1000m



Matching BLDC motor Driver: JKBLD300 JKBLD750

4. Dimensions of 80mm round bldc MOTOR: (Unit=mm)

high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft 0

high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft 1high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft 2high voltage 80mm Round Brushless DC Electric Motor 3000RPM 110W - 440W With 120 Degree Electrical Angle Single Shaft 3



5.Advantages of BLDC Motors



A BLDC motor with three coils on the stator will have six electrical wires (two to each coil) extending from these coils. In most implementations three of these wires will be connected internally, with the three remaining wires extending from the motor body (in contrast to the two wires extending from the brushed motor described earlier). Wiring in the BLDC motor case is more complicated than simply connecting the power cell’s positive and negative terminals; we will look more closely at how these motors work in the second session of this series. Below, we conclude by looking at the advantages of by BLDC motors.



One big advantage is efficiency, as these motors can control continuously at maximum rotational force (torque). Brushed motors, in contrast, reach maximum torque at only certain points in the rotation. For a brushed motor to deliver the same torque as a brushless model, it would need to use larger magnets. This is why even small BLDC motors can deliver considerable power.



The second big advantage—related to the first—is controllability. BLDC motors can be controlled, using feedback mechanisms, to delivery precisely the desired torque and rotation speed. Precision control in turn reduces energy consumption and heat generation, and—in cases where motors are battery powered—lengthens the battery life.



BLDC motors also offer high durability and low electric noise generation, thanks to the lack of brushes. With brushed motors, the brushes and commutator wear down as a result of continuous moving contact, and also produce sparks where contact is made. Electrical noise, in particular, is the result of the strong sparks that tend to occur at the areas where the brushes pass over the gaps in the commutator. This is why BLDC motors are often considered preferable in applications where it is important to avoid electrical noise.



6. Applications Of brushless dc motor:
Our products are widely used in

  • 3d printers
  • CNC routers
  • Engraving Machines
  • Stage lighting control
  • Security surveillance
  • Video equipment
  • Laserworkstation
  • Carving machine
  • Office automation
  • Smart toy
  • Digital controlled machinery
  • Medical instrument
  • Other automatic equipment
