| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JKong |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK42HS34-1334IE |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | USD28-38 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-35days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100000pcs/month |
| Product Name: | Integrated Stepper Motor With Driver | Model Name: | JK42HS34-1334IE |
|---|---|---|---|
| Temp Rise( Max): | 80°C | Dielectric Strength: | 500VDC |
| Insulation Class: | B | Holding Torque: | 0.26N.m |
| High Light: | 2phase Integrated Drive Stepper Motor,Nema17 Integrated Drive Stepper Motor,0.26N.M Holding Torque Integrated Stepper Motor |
||
Nema17 37oz.in 0.26N.m holding torque 2phase Integrated Drive Stepper Motor
CHANGZHOU JKONGMOTOR CO.,LTD. was founded in 2011,is a professional high-tech manufacturer of stepper motors and brushless motors.Now 80 employees, workshop area of 6,000 square meters.
CHANGZHOU JKONGMOTOR CO.,LTD (Changzhou Jingkong Motor&Electric Appliance Co.,Ltd)is an ISO9001 Professional manufacturer. Was established in 2011 year. We are a professional manufacturer in Changzhou city, China. Production Capacity exceeds more than 1 million motors per year. Our Company offers many major series of products: Hybrid Stepper motors, Closed Loop Stepper Motor, Linear Stepper Motor, Brushless Dc motor, Dc Brush motor, Motor Driver, Geared Motor, Brake Motor, PM Stepper Motor, Power Supply and so on... We are always continues develop new type models.
Genaral Specification of Nema17 stepper motor:
Electrical Specification of Nema24 closed loop stepper motor with integrated driver:
| Brand | Jkongmotor |
| Name | Stepper Motor with integrated controller |
| Model Name | JK42HS34-1334IE |
| Step Angle | 1.8° |
| Number of phase | 2 |
| Temp rise( Max) | 80°C |
| Dielectric Strength | 500VDC |
| Insulation Class | B |
| Current /phase | 1.33A |
| DC Resistance | 2.1Ω |
| Inductance /phase | 2.5mH |
| Holding torque | 0.26N.m |
Other models available:
| Model: | Step Angle | Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm |
Kg | |
| JK42HS25-0404 | 1.8 | 25 | 0.4 | 24 | 36 | 1.8 | 4 | 75 | 20 | 0.15 |
| JK42HS28-0504 | 1.8 | 28 | 0.5 | 20 | 21 | 1.5 | 4 | 85 | 24 | 0.22 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0956 | 1.8 | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS40-0406 | 1.8 | 40 | 0.4 | 30 | 30 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS40-1206 | 1.8 | 40 | 1.2 | 3 | 2.7 | 2.9 | 6 | 150 | 54 | 0.28 |
| JK42HS48-0406 | 1.8 | 48 | 0.4 | 30 | 25 | 3.1 | 6 | 260 | 68 | 0.35 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS60-0406 | 1.8 | 60 | 0.4 | 30 | 39 | 6.5 | 6 | 280 | 102 | 0.5 |
| JK42HS60-1704 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 280 | 102 | 0.5 |
| JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 5.6 | 6 | 280 | 102 | 0.5 |

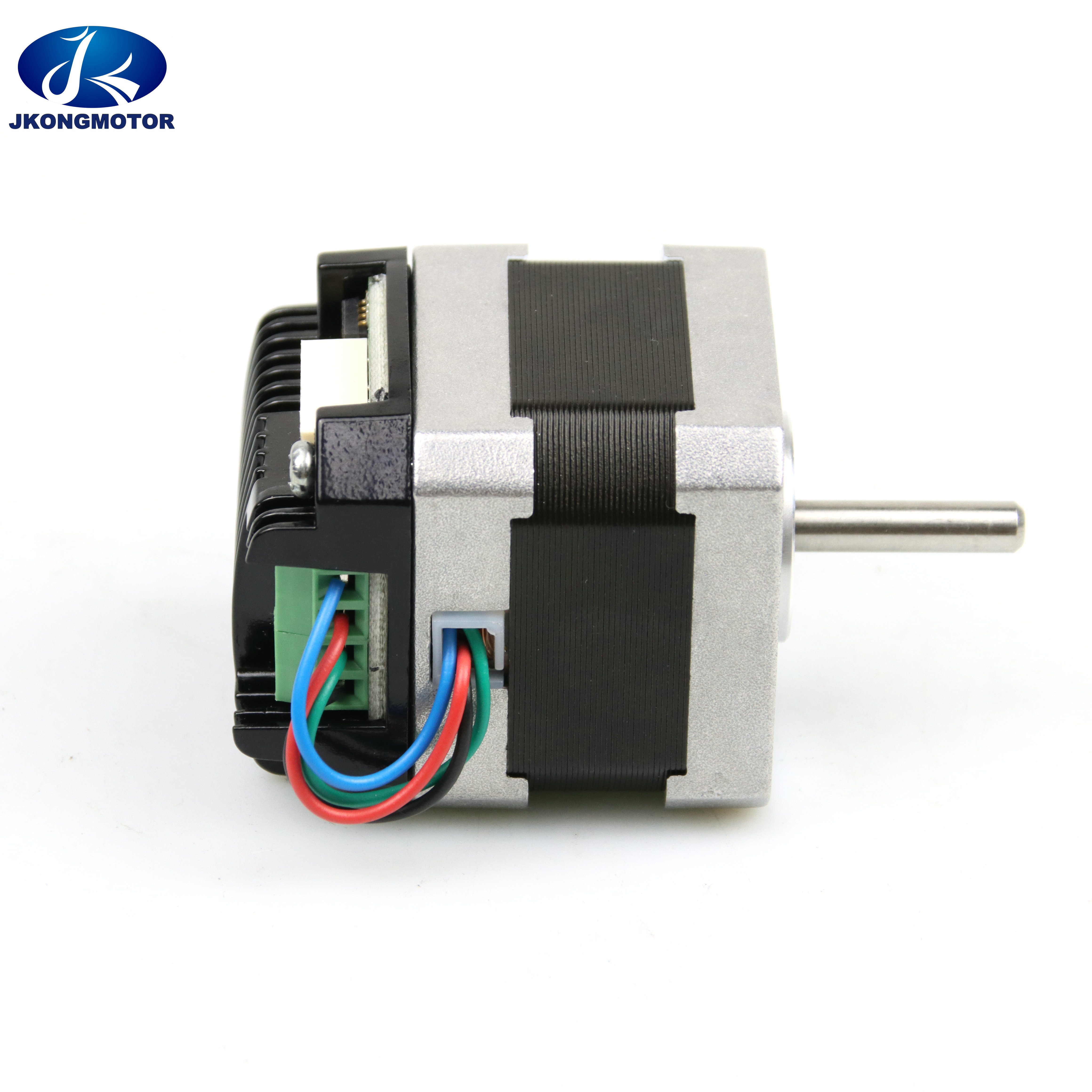

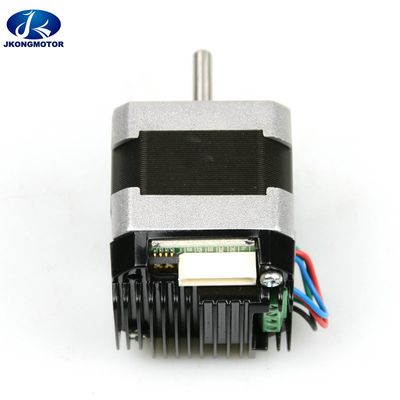

Photos of JK42HS34-1334IE:
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
FAQ:
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
