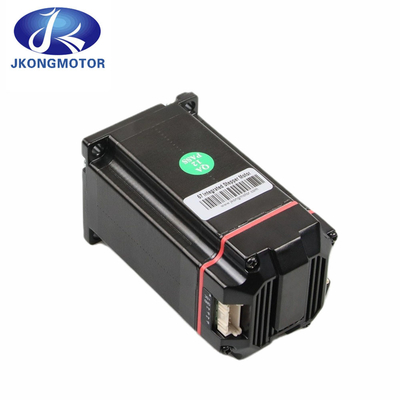

RS485 Modbus/RTU Protocol Stepper Driver 5A 24-50V Digital Control Nema 23/24 For 3C Equipment

RS485 Modbus/RTU Protocol Stepper Driver 2 Phase 5A 24-50V Digital Control Nema 23/24 for 3C Equipment/CNC Machine

JKONGMOTOR's ISM57 Serie is a MODBUS / RTU stepper motor with RS485 communication suitable for 4-wire 2-phase Nema 23/24 stepper motors with a flange of 57/60 mm and currents less than 5.0A.

• Modbus stepper driver: 24 ~ 50V DC power supply, 5.0A output current peak.
• With the built-in S motion profile acceleration and deceleration can be set separately.
• Low Noise: Based on advanced control algorithm, the motor driver can run with low noise and low vibration
• Application: This NT60 stepper motor driver can control almost all of 2 phase nema 23/24 stepper motors 57/60mm flange whose current is under 5.0A. Usually for production line, Li-on battery equipment, solar energy equipment, 3C electrical equipment, etc.
• Warranty: Our step driver CNC controller has 12 months warranty. CE, ISO Certificated

Our main products are stepper motor drives, step motors, AC servo motor systems, integrated step servo motors, integated step AC servo motors, DC brushes and brushless motors and drive systems. We also provide complimentary mechaical products. Such as motor couplings, gearboxes, and linear motions.
Our products are widely used and applied in the following industries: semiconducto, textile, packaging, laser, wood working, printing, advertising, clothing, marble and ceramic, robotics and military.
Our customers come froms all around the world: European, America, Canada, Middle East, Asia and so on!

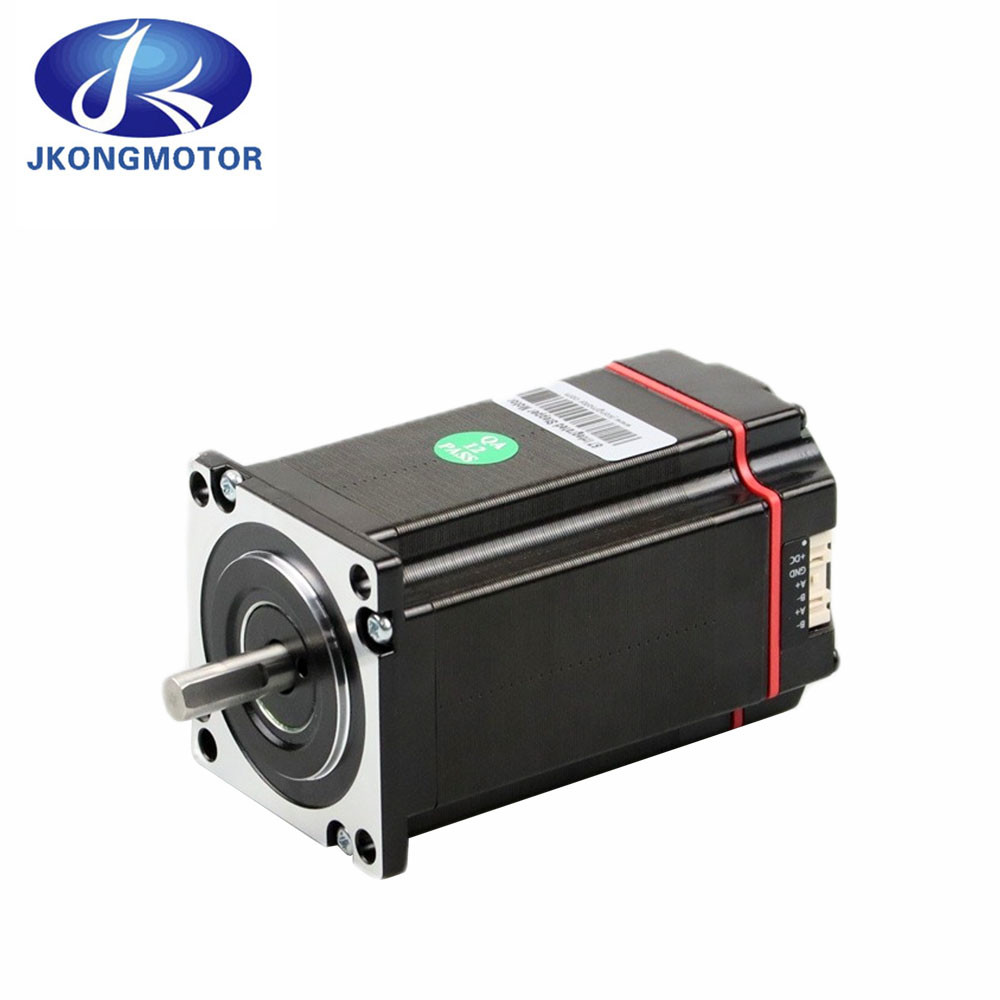

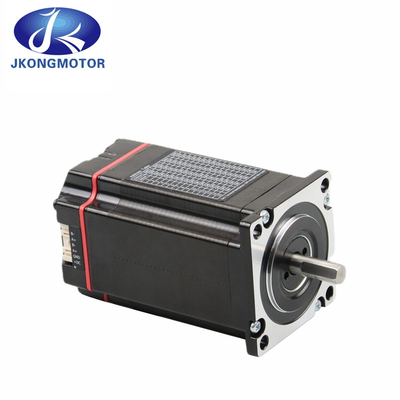

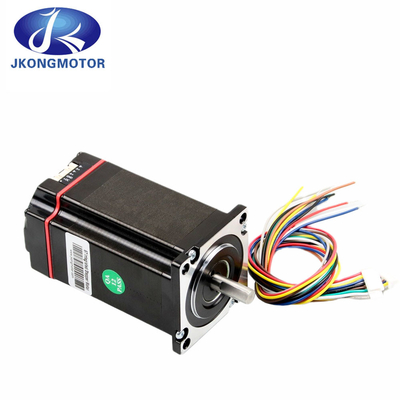

1. 57mm Hybrid Nema 23 Integrated Stepper Motor Genaral Specification:

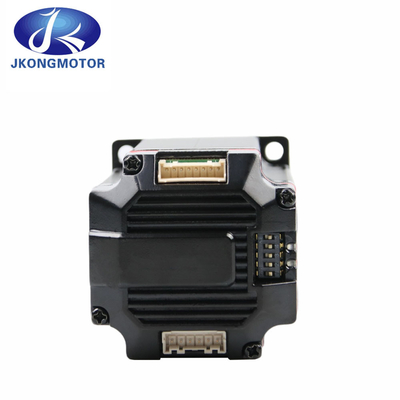

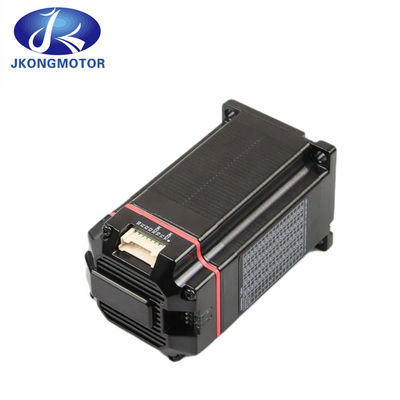

2,Features of integrated stepper motor controller driver:

1): A new generation of 32-bit DSP technology.

2): Support standard MODBUS-RTU protocol.

3): 4-way input function terminal, 2-way output function terminal.

4): The torque decay is reduced, and the speed can reach 3000rpm.

5): Built-in alarm output for easy monitoring and control.

6): Intelligently adjust current, reduce vibration, noise and heat, and increase efficiency by 35%.

7): Voltage range: DC24~50V.

8): 16 adjustable subdivisions, the default is 1000pulse/r.

9): Excellent high speed and rigidity, perfect integration of servo and stepper.

10): With overvoltage, undervoltage, overcurrent and other protection functions.

11): Integrated design with drive motor. Easy installation, small footprint and simple wiring.

3,Application of integrated drive stepper motor:

Printing, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging.

4,General Specification of nema 23 integrated stepper motor:

5,Techical Data:

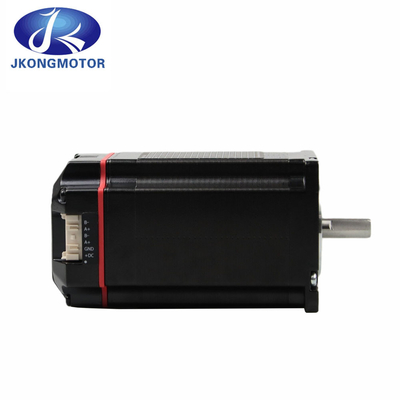

6,Terminal Description:

Terminal Description
Pin	Function	Note	Interface Schematic
PWR	Power indicator	Power on indicator
ALM	Alarm indicator	Alarm fishing indicator
X0-X3	4 input terminal	Input/Output terminal, signal power supply 24V, support NPN and PNP two wiring modes, support terminal function software modification
XCOM	Input common
Y0-Y1	2 output terminal
YCOM	Output common
B-	RS485 communication interface 1	2 sets of RS485 communication interface, used for in and out connection, default baud rate is 115200, data format is: 8-bit data, no check digit, 1 stop bit.
A+
B-	RS485 communication interface 2
A+
+DC	Power input positive terminal	DC24~50V
GND	Power input negative terminal

7,Input / Output terminal:

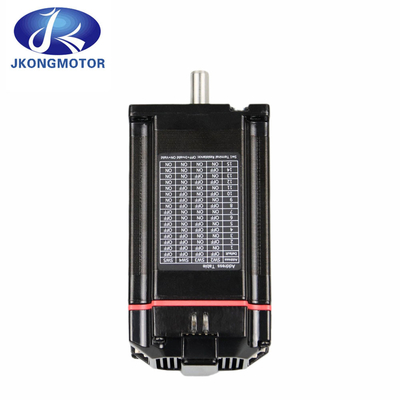

8,DIP switch settings:

9,Power port setting:

10,Alarm release:

Alarm release:
Error code	Error information	ALM warning light	Resetting
Err1: (0x01)	Overcurrent or phase-to-phase short circuit		Power-down reset
Err2: (0x02)	Power supply voltage is too high		Lock/Auto reset
Err3: (0x03)	Power supply voltage is too low		Lock/Auto reset
Err5: (0x05)	Out of torlance		Power-down reset

11,Use environment:

12,Product Dimensions: (Unit=mm)

13,Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

14,Customized Shaft Types:
