Name: Integrated Drive BLDC MOTOR Holding Torque: 0.127N.m
Body Length: 78mm Number Of Phase: 3phase
Number Of Poles: 8 Rated Voltage: 24v
Rated Speed: 3000rpm Rated Power: 40w
Current: 3.3A INSULATION CLASS: B
High Light:

24v Brushless DC Motor

,

Grass Cutter Brushless DC Motor

,

Garden Machinery Brushless DC Motor

24v Brushless DC Motor with Integrated Controller for Grass Cutter and Garden machinery



Jkongmotor 42mm Brushless dc Motor with Integrated Driver 25W to 105W Integrated BLDC Motor with PWM or VSP Speed Control







1.Specification of brushless dc motor:



Model JK42BLS02-X057IE
Voltage 24V
Torque 0.7N.m
Speed 4000Rpm
Current 6.3A
Power 400w
Body length 84.5mm
Type bldc motor with hallsensor



Product Series Poles No. Rated Voltage Rated Speed Rated Torque Rated Power Motor Length
42mm BLDC Motor 8 24v 4000rpm 0.0625~0.25N.m 26~105w 41~100mm
57mm BLDC Motor 4 36v 4000rpm 0.055~0.44N.m 23~184w 37~107mm
60mm BLDC Motor 8 48v 3000rpm 0.3~1.2N.m 94~377w 78~120mm
80mm BLDC Motor 4 48v 3000rpm 0.35~1.4N.m 110~440w 78~138mm
86mm BLDC Motor 8 48v 3000rpm 0.35~2.1N.m 110~660w 71~138.5mm
110mm BLDC Motor 8 310v 3000rpm 1.65~6.6N.m 518~2073w 83~173mm
130mm BLDC Motor 10 310v 3000rpm 2.39~11.94N.m 750~2500w 115~190mm
Above only for representative products, products of special request can be made according to the customer request.

mtor
2.Electrical Specification of bldc motor:


    Model
Specification Unit JK42BLS01 JK42BLS02 JK42BLS03 JK42BLS04
Number Of Phase Phase 3
umber Of Poles Poles 8
Rated Voltage VDC 24
Rated Speed Rpm 4000 3000
Rated Torque N.m 0.0625 0.125 0.185 0.25
Rated Current Amps 1.8 3.3 4.8 6.3
Rated Power W 26 52.5 77.5 105
Peak Torque N.m 0.19 0.38 0.56 0.75
Peak Current Amps 5.4 10.6 15.5 20
Back E.M.F V/Krpm 4.1 4.2 4.3 4.3
Torque Constant N.m/A 0.039 0.04 0.041 0.041
Rotor Inertia g.c㎡ 24 48 72 96
Body Length mm 41 61 81 100
Weight Kg 0.3 0.45 0.65 0.8
Sensor Honeywell
Driver Length 22mm



3. Photo of Integrated driver bldc motor :

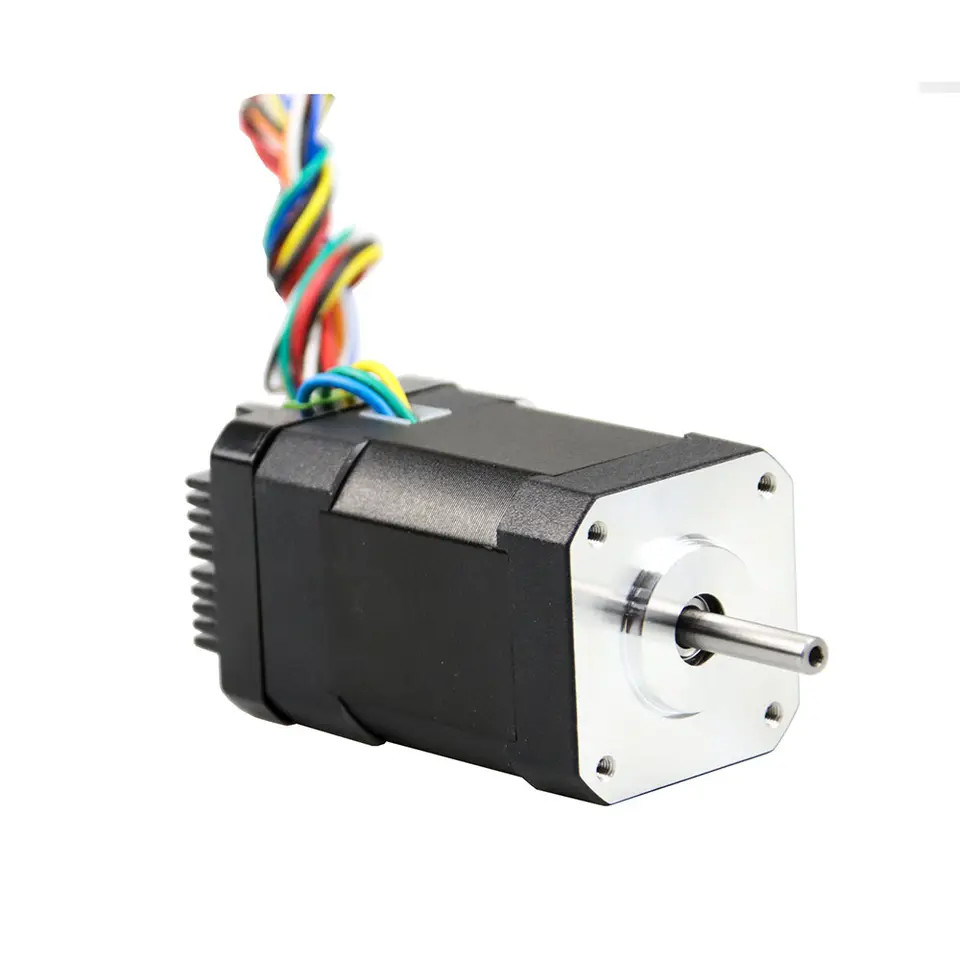

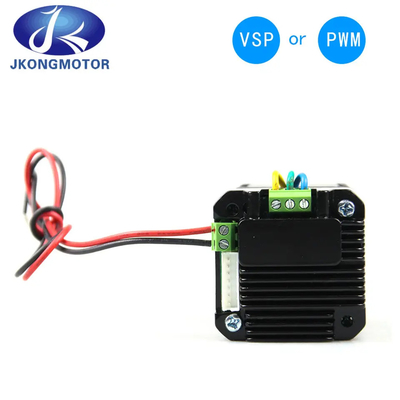

24v Brushless DC Motor With Integrated Controller For Grass Cutter And Garden Machinery 0

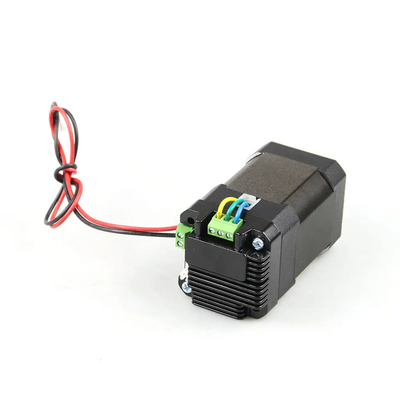

24v Brushless DC Motor With Integrated Controller For Grass Cutter And Garden Machinery 1

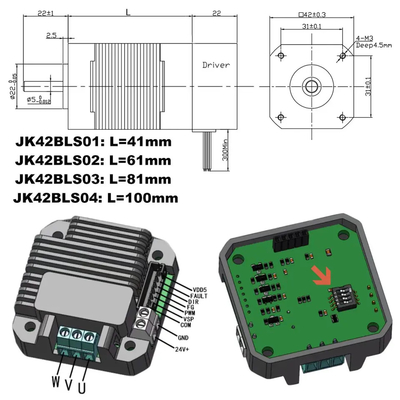

24v Brushless DC Motor With Integrated Controller For Grass Cutter And Garden Machinery 2

1). VSP

First turn the dial switch SW3 to OFF. The VSP port of the driver is connected to the signal positive terminal, and the COM port is connected to the signal negative terminal. The required signal voltage range is 0~10V.

The relationship between analog signal voltage and motor speed (open loop no load). The relationship between analog signal voltage and motor speed (closed loop no load)

Note: The analog signal voltage ≥ 0.7V, the motor starts; Analog signal voltage ≤ 0.4V, the motor stops.


2). PWM

First turn the DIP switch SW3 to ON. The PWM port of the drive is connected to the positive signal terminal, and the COM port is connected to the negative signal terminal. The PWM signal requires an amplitude of 5V and a frequency of 1KHz.

Relationship between duty cycle and motor speed (open loop no load); Relationship between duty cycle and motor speed (closed loop no load)

Note: PWM duty cycle ≥ 7%, the motor starts; PWM duty cycle ≤4%, the motor stops.
