| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JKM |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK57BLS03-X015JXE23IE |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $68 - 79.9 / Unit |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 30000pcs/month |
| Product Name: | Brushless DC Gear Motor | Poles: | 4 |
|---|---|---|---|
| Voltage Range: | 36V | Keywords: | Bldc Motor |
| Output Power: | 138W | Rated Torque: | 0.33N.m |
| Speed: | 4000rpm | No Load Speed: | 5000rpm |
| No Load Current: | 0.7A | Driver: | JKBLD300 |
| High Light: | 0.33N.m Brushless DC Gear Motor,57BLS Brushless DC Gear Motor,57BLS brushless planetary gear motor |
||
57BLS 4000rpm 0.33N.m 138w 57BLS brushless dc gear motor planetary ratio 23:1
An electric motor converts the supplied electrical energy into mechanical energy. Various types of motors are commonly used. The brushless dc motor is widely used in many fields because of its high efficiency and good controllability. Compared with other motor types, the brushless DC motor has the advantage of power saving.
Specifications of brushless motor :
| Product Series | Poles No. | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Motor Length |
| JK42BLS | 8 | 24v | 4000rpm | 0.0625~0.25N.m | 26~105w | 41~100mm |
| JK57BLS | 4 | 36v | 4000rpm | 0.055~0.44N.m | 23~184w | 37~107mm |
| JK60BLS | 8 | 48v | 3000rpm | 0.3~1.2N.m | 94~377w | 78~120mm |
| JK80BLS | 4 | 48v | 3000rpm | 0.35~1.4N.m | 110~440w | 78~138mm |
| JK86BLS | 8 | 48v | 3000rpm | 0.35~2.1N.m | 110~660w | 71~138.5mm |
| JK110BLS | 8 | 310v | 3000rpm | 1.65~6.6N.m | 518~2073w | 83~173mm |
| JK130BLS | 10 | 310v | 3000rpm | 2.39~11.94N.m | 750~2500w | 115~190mm |
| Above only for representative products, products of special request can be made according to the customer request. | ||||||
Specification of JK57BLS motor:
| Model | ||||||
| Specification | Unit | JK57BLS005 | JK57BLS01 | JK57BLS02 | JK57BLS03 | JK57BLS04 |
| Number Of Phase | Phase | 3 | ||||
| Number Of Poles | Poles | 4 | ||||
| Rated Voltage | VDC | 36 | ||||
| Rated Speed | Rpm | 4000 | ||||
| Rated Torque | N.m | 0.055 | 0.11 | 0.22 | 0.33 | 0.44 |
| Rated Current | Amps | 1.2 | 2 | 3.6 | 5.3 | 6.8 |
| Rated Power | W | 23 | 46 | 92 | 138 | 184 |
| Peak Torque | N.m | 0.16 | 0.33 | 0.66 | 1 | 1.32 |
| Peak Current | Amps | 3.5 | 6.8 | 11.5 | 15.5 | 20.5 |
| Back E.M.F | V/Krpm | 7.8 | 7.7 | 7.4 | 7.3 | 7.1 |
| Torque Constant | N.m/A | 0.074 | 0.073 | 0.07 | 0.07 | 0.068 |
| Rotor Inertia | g.c㎡ | 30 | 75 | 119 | 173 | 230 |
| Body Length | mm | 37 | 47 | 67 | 87 | 107 |
| Weight | Kg | 0.33 | 0.44 | 0.75 | 1 | 1.25 |
| Sensor | Honeywell | |||||
| Insulation Class | B | |||||
| Degree of Protection | IP30 | |||||
| Storage Temperature | -25～+70℃ | |||||
| Operating Temperature | -15～+50℃ | |||||
| Working Humidity | 85% or under 85% RH(non condensing) | |||||
| Working Environment | outdoor(no direct sunlight),Non-corrosive Gas, Non-inflammable gas, No oil fog, No dust |
|||||
| Altitude | 1000m or under 1000m | |||||

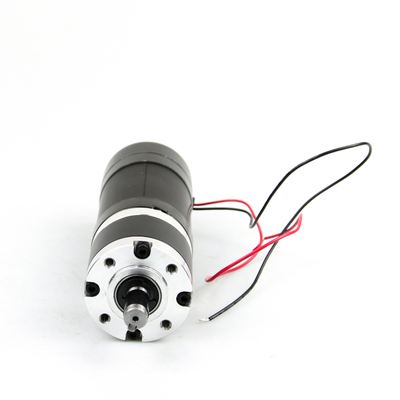

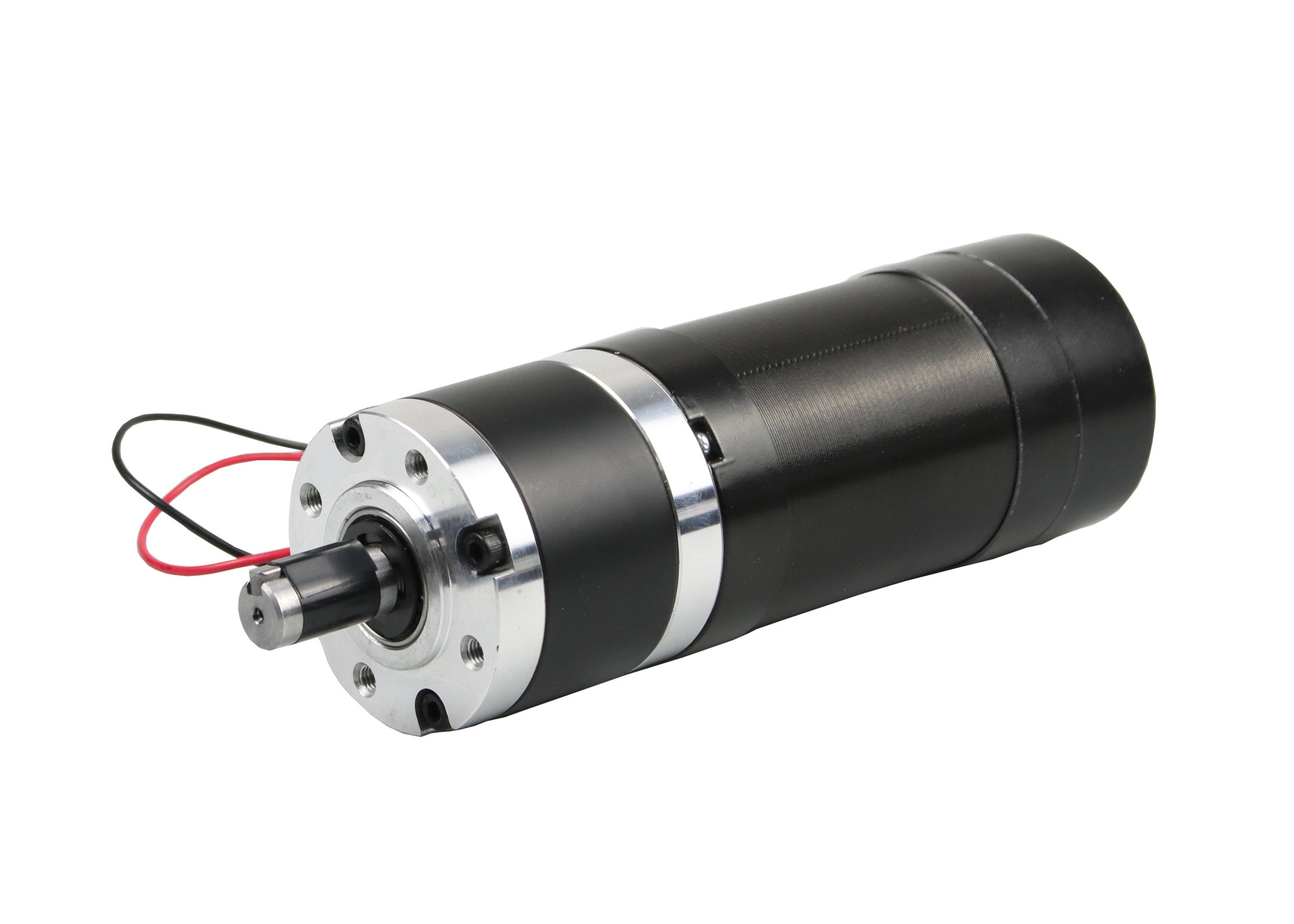

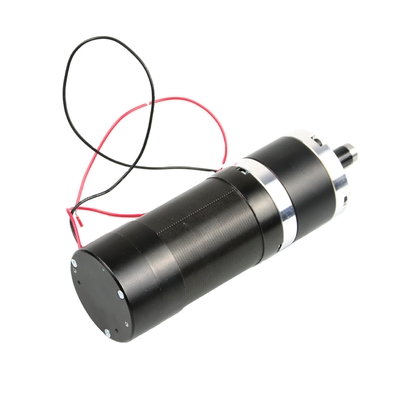

Details of Brushless dc motor:
FAQ(Q=Question, A=Answer)
Q: How to select a suitable motor?
A: If you have pictures or drawings to show us, or you have detailed specs like the voltage, speed, torque, motor size, the working mode of the motor, needed lifetime and noise level, etc, please do not hesitate to let us know, then we can recommend suitable motor as you requested accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize as you requested for the voltage, speed, torque, and shaft size/shape.
Q: Can I have samples for testing first?
A: Yes, definitely you can. After confirming the needed motor specs, we will quote and provide a proforma invoice for samples.
Q: How do you make sure motor quality?
A: We have our own inspection procedures: for incoming materials, we have signed samples and drawing to ensure qualified incoming materials; for the production process, we have a tour inspection in the process and a final inspection to ensure qualified products before shipping.
