| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | JK |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK60HS67-2804BK2.8 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$20.5~US$45.5 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-35days |
| Payment Terms: | T/T, Western Union, paypal |
| Supply Ability: | 100000pcs/month |
| Name: | Ball Screw Slide Linear Motion Module | Model: | JK60HS67-2804BK2.8 |
|---|---|---|---|
| Color: | Silver & Black | Number Of Phase: | 2 |
| Step Angle: | 1.8° | Valtoge: | 3.36v |
| Current: | 2.8A | Resistance: | 1.2Ω |
| Inductance: | 4.6mH | Torque: | 21kg.cm |
| High Light: | 1.8 degree nema 24 servo motor,Linear nema 24 servo motor,Ball Screw nema 24 stepper motor |
||

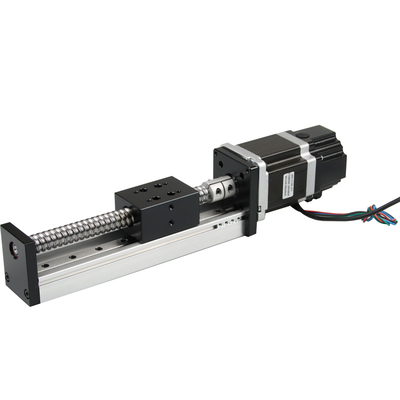

1.8degree Nema24 covered Linear Module Ball Screw Slide Precision Stepping Cross Motor
Step angle:1.8° Temperature rise:below 80 ℃
Ambient temperature:-20 ℃ ~ + 50 ℃
Insulation resistance:minimum 100MΩ, 500VDC
Dielectric strength:500VAC for 1 minute
Shaft radial clearance 0.02 max (450 g load)
Shaft axial clearance:0.08Max. (450 g load)
Maximum radial force:75N (20mm from flange)
Maximum axial force:15N
Electrical Specification:
| Brand Name | JKONGMOTOR |
| Model Number | JK60HS88-2008 |
| Phase | 2 |
| Type | Hybrid |
| Motor diameter | 60mm |
| Certification | ce, ISO, RoHS |
| insulation class | B |
| Holding Torque | 3.1N.m |
| Shaft diameter | 8mm |
| weight | 1.4kg |
Specification of JK60HS motors:
| Model No. | Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
||
| (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm | Kg | |||
| JK60HS56-2008 | unipolar | 56 | 2 | 1.8 | 3. | 1.17 | 8 | 700 | 300 | 0.77 | |
| parallel | 2.8 | 0.9 | 3.6 | 1.65 | |||||||
| Series | 1.4 | 3.6 | 14.4 | 1.65 | |||||||
| JK60HS67-2008 | unipolar | 67 | 2 | 2.4 | 4.6 | 1.5 | 8 | 900 | 570 | 1.2 | |
| parallel | 2.8 | 1.2 | 4.6 | 2.1 | |||||||
| Series | 1.4 | 4.8 | 18.4 | 2.1 | |||||||
| JK60HS88-2008 | unipolar | 88 | 2 | 3 | 6.8 | 2.2 | 8 | 1000 | 840 | 1.4 | |
| parallel | 2.8 | 1.5 | 6.8 | 3.1 | |||||||
| Series | 1.4 | 6 | 27.2 | 3.1 | |||||||
| JK60HS100-2008 | unipolar | 100 | 2 | 3.2 | 6.4 | 2.8 | 8 | 1100 | 980 | 1.7 | |
| parallel | 2.8 | 1.6 | 6.4 | 4.0 | |||||||
| Series | 1.4 | 6.4 | 25.6 | 4.0 | |||||||
| JK60HS111-2008 | unipolar | 111 | 2.0 | 4.4 | 8.3 | 3.2 | 8 | 1200 | 1120 | 1.9 | |
| parallel | 2.8 | 2.2 | 8.3 | 4.5 | |||||||
| Series | 1.4 | 8.8 | 33.2 | 4.5 | |||||||

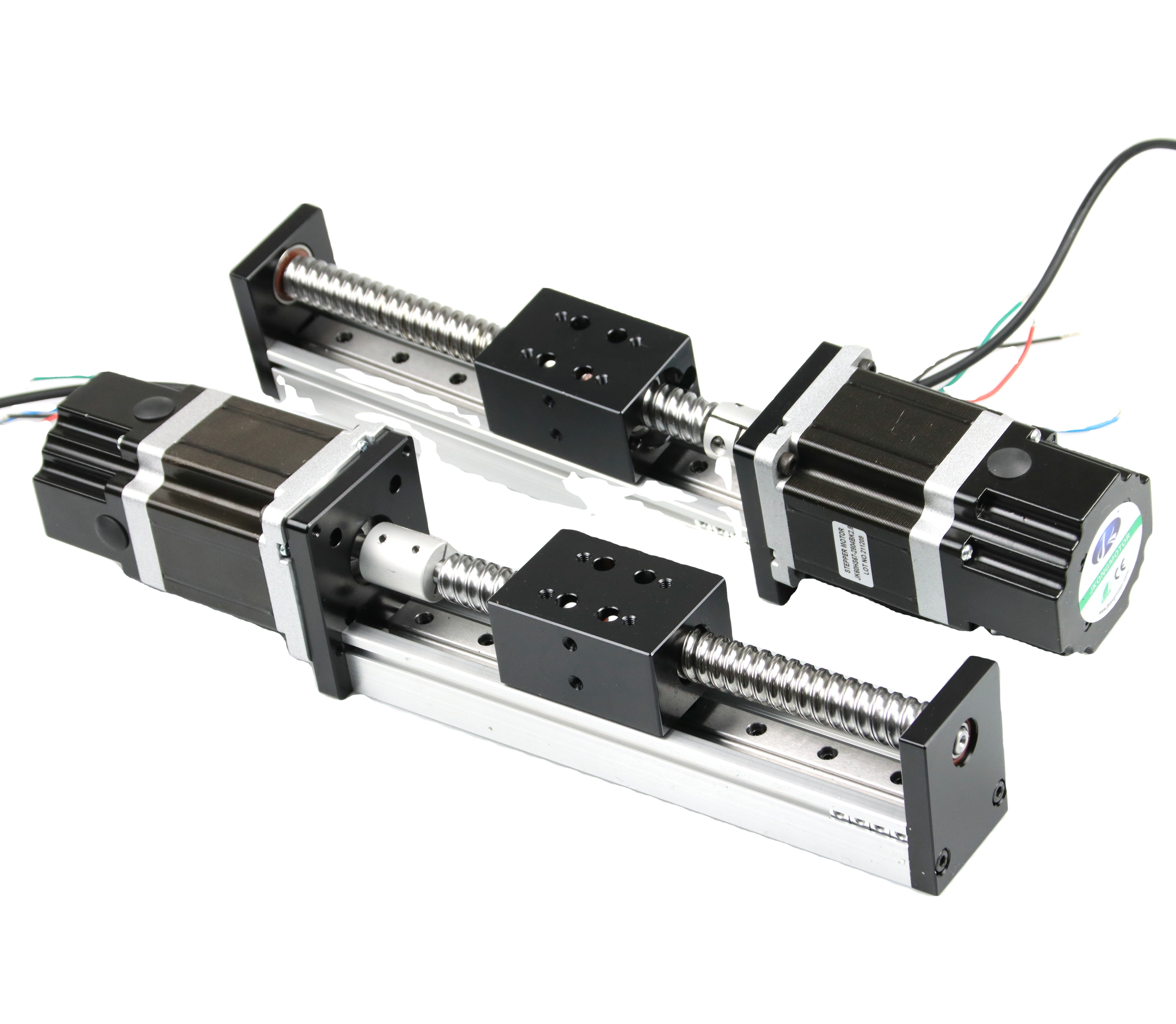

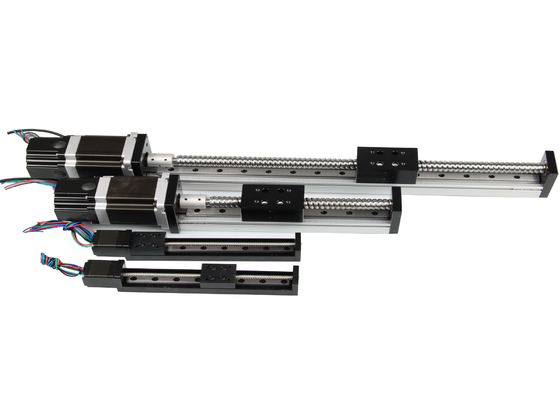

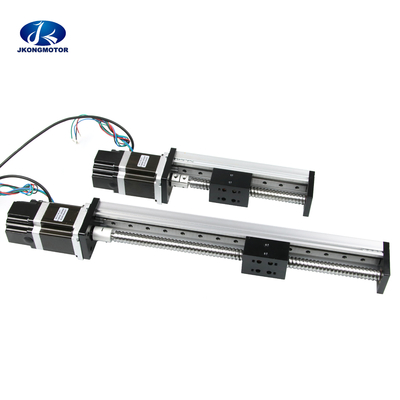

Details of Nema24 Linear Motion Ball Screw:
The drawing of JK60HS67-2804BK2.8:
Certifications:
Recommend Products:
Stepper motor Application:
FAQ:
Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you
Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
