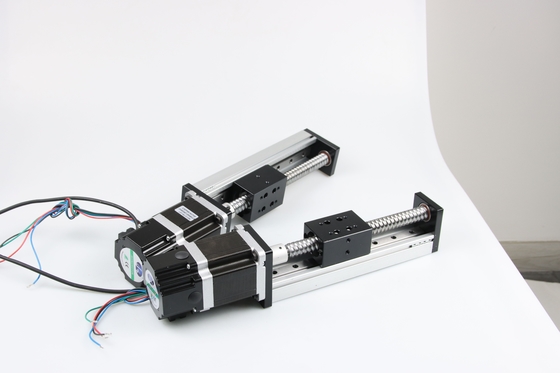

300mm Linear Ball Screw Slide Nema 24 Stepper Motor Easy Integration

300mm Linear Ball Screw Slide Nema 24 Stepper Motor Easy Integration

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration
video
300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: JK
Certification: CE, ROHS,ISO9001
Model Number: JK60HS67-2804BK2.8
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$20.5~US$45.5
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-35days
Payment Terms: T/T, Western Union, paypal
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Ball Screw Slide Linear Motion Module Model: JK60HS67-2804BK2.8
Color: Silver & Black Number Of Phase: 2
Step Angle: 1.8° Valtoge: 3.36v
Current: 2.8A Resistance: 1.2Ω
Inductance: 4.6mH Torque: 21kg.cm
High Light:

300mm nema 24 stepper motor

,

Linear nema 24 stepper motor

,

300mm nema 24 servo motor

300mm Linear Module Ball Screw Slide Precision Stepping Cross Motor CNC Linear Guide Slide Module 6.0V 3.1N.m



The NEMA 24 stepper motor linear actuator features easy integration into your applications, a high level of precision, safer performance, and an economical cost. The NEMA 24 stepper motor linear actuator has four form factors available – captive, non-captive external, and electric cylinder linear versions. Let our applications engineering team help you determine whether the NEMA 24 stepper motor linear actuator or one of our other linear actuator solutions is best suited to meet your application’s needs.


Electrical Specification:

  • Step Angle Accuracy: ±5%
  • Resistance Accuracy: ±10%
  • Inductance Accuracy: ±20%
  • Temperature Rise: 80°C Max
  • Ambient Temperature: -20°C~+50°C
  • Insulation Resistance: 100MΩ Min., 500VDC
  • Dielectric Strength: 500VAC for one minute
  • Shaft Radial Play: 0.02Max (450g-load)
  • Shaft Axial Play: 0.08Max (450g-load)



Physical Specification:

  • Frame Size: 60*60mm
  • Body Length: 88mm
  • Shaft Shape: D shaft
  • Shaft Diameter: Φ8mm
  • Shaft Length: 24mm
  • Number of Leads: 8
  • Lead Length: 300mm



Specification of JK60HS motors:

Model No.
Motor Length

Current
/Phase

Resistance
/Phase

Inductance
/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass
  (L)mm A Ω mH N.m No. g.cm g.cm Kg
JK60HS56-2008 unipolar 56 2 1.8 3. 1.17 8 700 300 0.77
parallel 2.8 0.9 3.6 1.65
Series 1.4 3.6 14.4 1.65
JK60HS67-2008 unipolar 67 2 2.4 4.6 1.5 8 900 570 1.2
parallel 2.8 1.2 4.6 2.1
Series 1.4 4.8 18.4 2.1
JK60HS88-2008 unipolar 88 2 3 6.8 2.2 8 1000 840 1.4
parallel 2.8 1.5 6.8 3.1
Series 1.4 6 27.2 3.1
JK60HS100-2008 unipolar 100 2 3.2 6.4 2.8 8 1100 980 1.7
parallel 2.8 1.6 6.4 4.0
Series 1.4 6.4 25.6 4.0
JK60HS111-2008 unipolar 111 2.0 4.4 8.3 3.2 8 1200 1120 1.9
parallel 2.8 2.2 8.3 4.5
Series 1.4 8.8 33.2 4.5

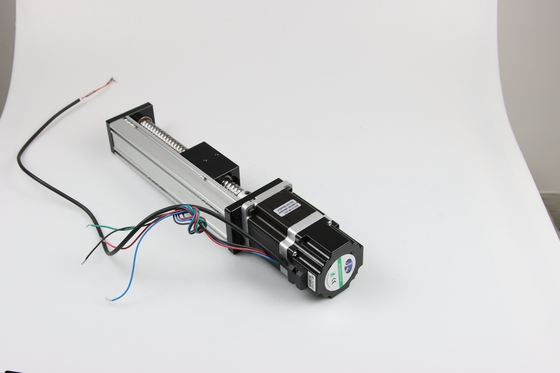

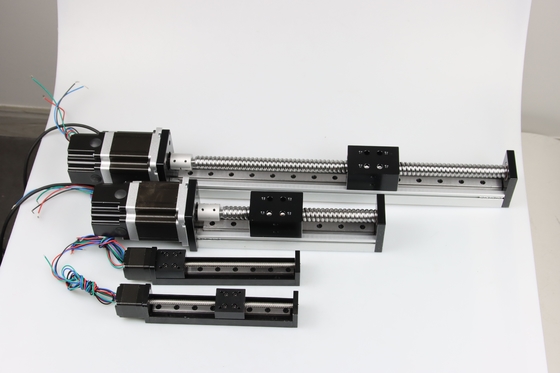

Details of Nema24 Linear Motion Ball Screw:



300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 0

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 1

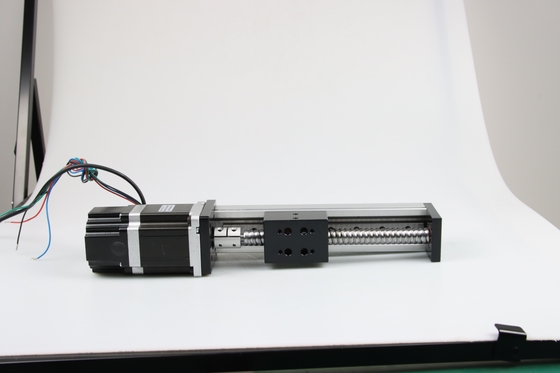

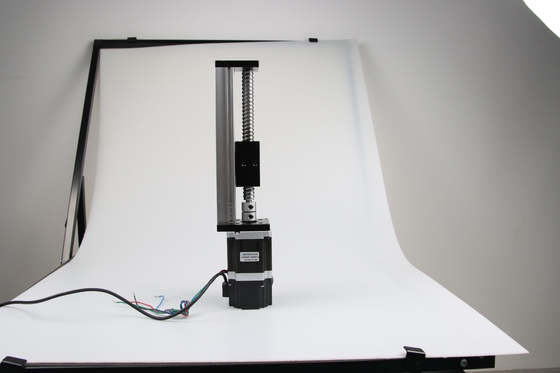

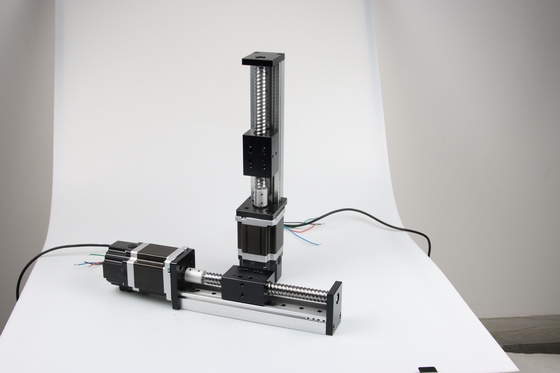

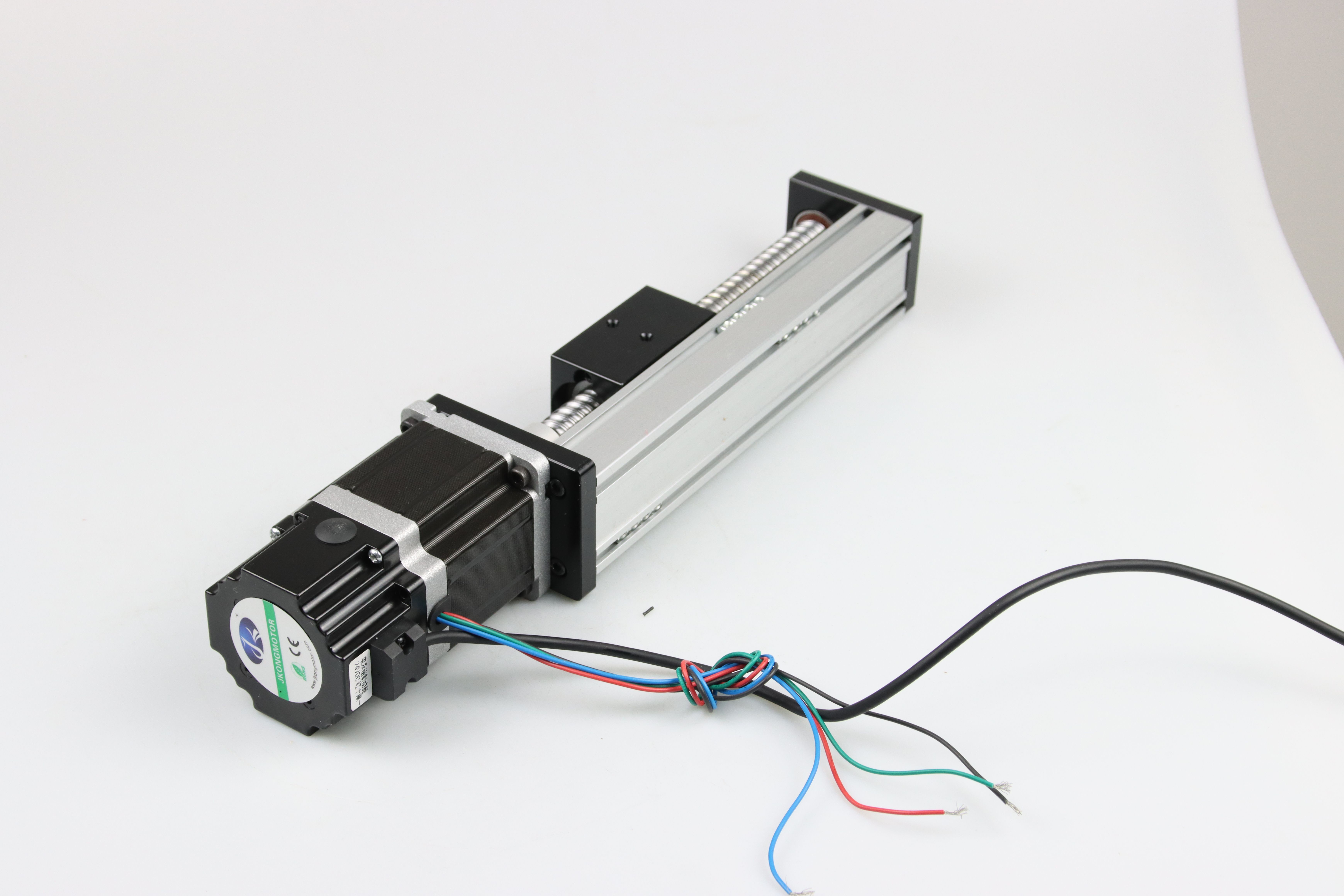

The drawing of JK60HS67-2804BK2.8:

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 2

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 3

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 4

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 5

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 6



Certifications:

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 7

Recommend Products:

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 8



Stepper motor Application:

300mm Linear Ball Screw Slide Nema 24 Stepper Motor  Easy Integration 9

FAQ:



Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.

Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you

Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.

Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.

Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.

Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
