5KW 3000rpm 48V 16Nm 123A Bldc Motor For Industrial Machinery

5KW 3000rpm 48V 16Nm 123A Bldc Motor For Industrial Machinery

5KW 3000rpm 48V 16Nm 123A Bldc Motor For Industrial Machinery
video
5KW 3000rpm 48V 16Nm 123A Bldc Motor For Industrial Machinery
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK180BLS5000
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$500~US$700/pcs
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Name: 48V 5KW Brushless DC Motor Key Word: BLDC Motor
Phase: 3 Phase Poles: 8 Poles
Voltage: 48V Speed: 3000rpm
Rated Torque: 16N.m Power: 5KW
Motor Diameter: 180mm Usage: Automation Industry
High Light:

5KW industrial BLDC motor

,

123A industrial BLDC motor

,

16Nm 3 phase BLDC motor

1) Product Description

  • Product Name: Brushless DC Motor
  • Rated Voltage: 48V
  • Rated Power: 5000W
  • Rated Speed: 3000RPM
  • Rated Torque: 16N.m
  • Rated Current: 123A
  • Motor Diameter: 180mm
  • Body length: 235mm
2) Product Images

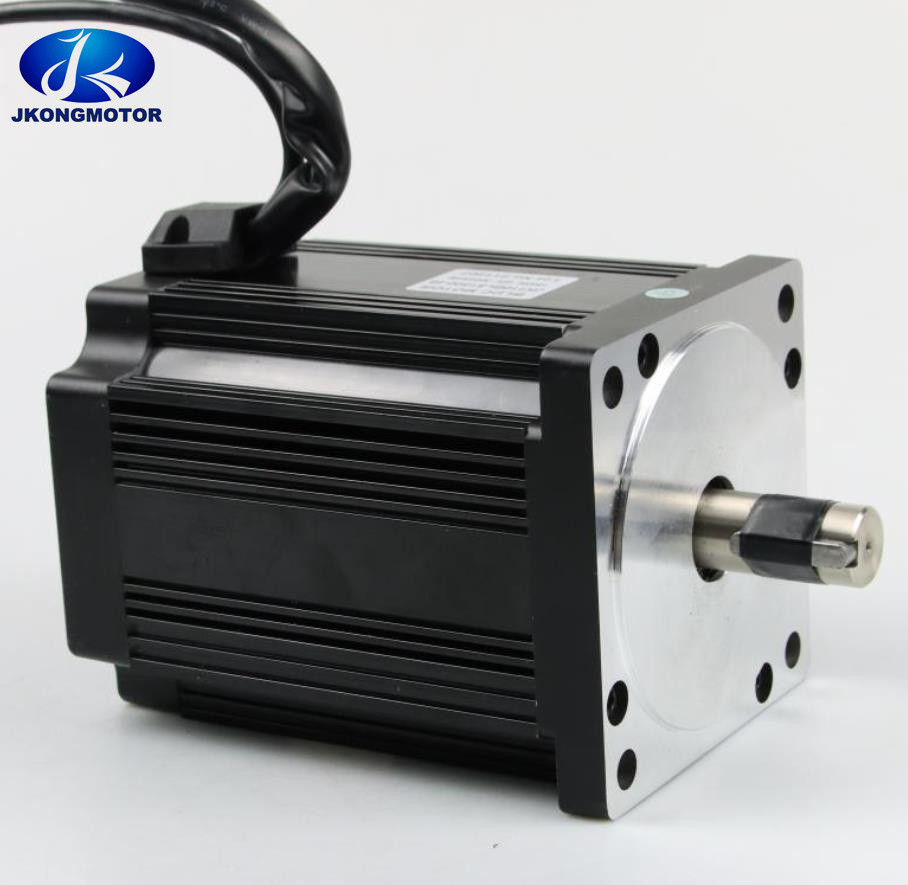

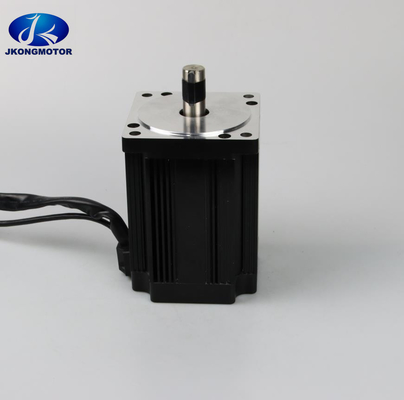

5KW 3000rpm 48V 16Nm 123A Bldc Motor For Industrial Machinery 0

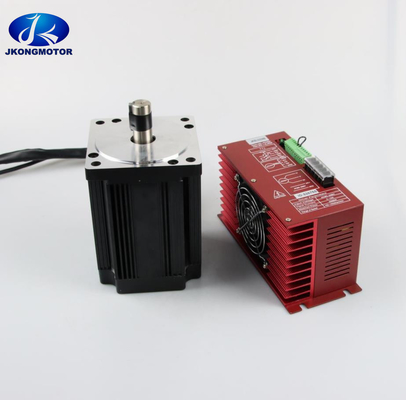

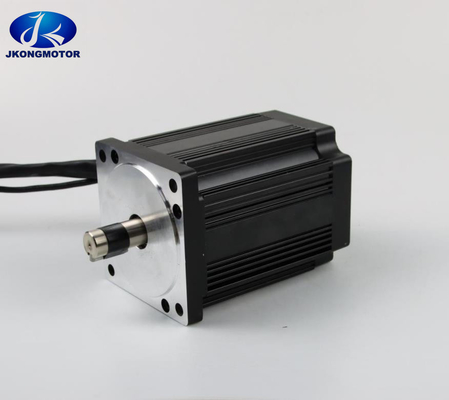

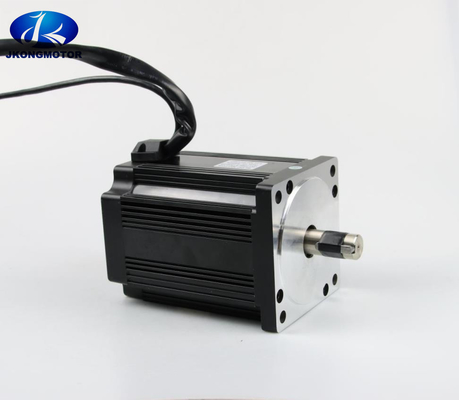

5KW 3000rpm 48V 16Nm 123A Bldc Motor For Industrial Machinery 1

3) Product Drawings
5KW 3000rpm 48V 16Nm 123A Bldc Motor For Industrial Machinery 2



4) OTHER MODELS OF BRUSHLESS DC MOTOR
Model No.
Diameter
Voltage
Rated Speed
Rated Torque
Power
JK42BLS
42MM
24V
4000 RPM
0.0625~0.25N.m
26~105W
JK57BLS
57MM
36V
4000 RPM
0.055~0.44N.m
23~184W
JK60BLS
60MM
48V
3000 RPM
0.3~1.2N.m
94~377W
JK80BLS
80MM
48V
3000 RPM
0.35~1.4N.m
110~440W
JK86BLS
86MM
48V
3000 RPM
0.35~2.1N.m
110~660W
JK110BLS
110MM
24~310V
3000 RPM
1.65~6.6N.m
500~2000W
JK130BLS
130MM
48~310V
3000 RPM
2.39~11.94N.m
750~2500W
JK180BLS
180MM
48~310V
2000/3000
16~50N.m
5000~10500W
And more customized models.



5) MODELS OF BRUSHLESS DC MOTOR DRIVER
Model No.
Voltage
Current
Power
Speed
JKBLD70
DC 12~24V
0.05~3A
70W
10000RPM
JKBLD120
DC 12~30V
0~8A
120W
20000RPM
JKBLD300
DC 18~50V
15~25A
300W
20000RPM
JKBLD300R
DC 15~48V
2~20.6A
300W
20000RPM
JKBLD480
DC 24~48V
0~10A
480W
10000RPM
JKBLD720
DC 24~48V
0~15A
720W
8000RPM
JKBLD750
DC 18~50V
25~48A
750W
20000RPM
JKBLD1100
AC 80~220V
0~5A
1100W
10000RPM
JKBLD2200
AC 80~220V
0~10A
2200W
10000RPM
And more customized models.
