| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK57HS112-4204-03 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $20.95 - US $168.00 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-25 days / For batch , 15-40days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 50000pcs/month |
| Phase: | 2 | Type: | Hybrid |
|---|---|---|---|
| Step Angle(degrees): | 1.8 Degree | Holding Torque: | 2.8N.m |
| Current / Phase: | 4.2A | Lead Wires: | 4 |
| Voltage: | 3.78v | Motor Length: | 112mm |
| Shaft Length: | 21mm | Diameter Of Shaft: | 8mm |
| High Light: | DM556 nema 23 hybrid stepper motor,8mm nema 23 hybrid stepper motor,2 phase nema 23 dc motor |
||
The parameters of 57mm stepper motor:
Product Name: Nema23 stepper motor
Model: JK57HS112-4204-03
Number of Phase: 2
Step Angle: 1.8 Degree
No. of Leads: 4
Rated Voltage: 3.78V
Rated Current: 4.2 Amps
Holding Torque: 2.8N.m
Motor Diameter: 57mm
Motor length:112mm
Shaft Length: 21mm
Shaft Diameter: 8mm
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 |
Kg | |
| JK57HS41-1006 | 1.8 | 41 | 1 | 7.1 | 8 | 0.48 | 6 | 250 | 150 | 0.47 |
| JK57HS41-2008 | 1.8 | 41 | 2 | 1.4 | 1.4 | 0.39 | 8 | 250 | 150 | 0.47 |
| JK57HS41-2804 | 1.8 | 41 | 2.8 | 0.7 | 1.4 | 0.55 | 4 | 250 | 150 | 0.47 |
| JK57HS51-1006 | 1.8 | 51 | 1 | 6.6 | 8.2 | 0.72 | 6 | 300 | 230 | 0.59 |
| JK57HS51-2008 | 1.8 | 51 | 2 | 1.8 | 2.7 | 0.9 | 8 | 300 | 230 | 0.59 |
| JK57HS51-2804 | 1.8 | 51 | 2.8 | 0.83 | 2.2 | 1.01 | 4 | 300 | 230 | 0.59 |
| JK57HS56-2006 | 1.8 | 56 | 2 | 1.8 | 2.5 | 0.9 | 6 | 350 | 280 | 0.68 |
| JK57HS56-2108 | 1.8 | 56 | 2.1 | 1.8 | 2.5 | 1 | 8 | 350 | 280 | 0.68 |
| JK57HS56-2804 | 1.8 | 56 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 350 | 280 | 0.68 |
| JK57HS64-2804 | 1.8 | 64 | 2.8 | 0.8 | 2.3 | 1 | 4 | 400 | 300 | 0.75 |
| JK57HS76-2804 | 1.8 | 76 | 2.8 | 1.1 | 3.6 | 1.89 | 4 | 600 | 440 | 1.1 |
| JK57HS76-3006 | 1.8 | 76 | 3 | 1 | 1.6 | 1.35 | 6 | 600 | 440 | 1.1 |
| JK57HS76-3008 | 1.8 | 76 | 3 | 1 | 1.8 | 1.5 | 8 | 600 | 440 | 1.1 |
| JK57HS82-3004 | 1.8 | 82 | 3 | 1.2 | 4 | 2.1 | 4 | 1000 | 600 | 1.2 |
| JK57HS82-4008 | 1.8 | 82 | 4 | 0.8 | 1.8 | 2 | 8 | 1000 | 600 | 1.2 |
| JK57HS82-4204 | 1.8 | 82 | 4.2 | 0.7 | 2.5 | 2.2 | 4 | 1000 | 600 | 1.2 |
| JK57HS100-4204 | 1.8 | 100 | 4.2 | 0.75 | 3 | 3 | 4 | 1100 | 700 | 1.3 |
| JK57HS112-3004 | 1.8 | 112 | 3 | 1.6 | 7.5 | 3 | 4 | 1200 | 800 | 1.4 |
| JK57HS112-4204 | 1.8 | 112 | 4.2 | 0.9 | 3.8 | 3.1 | 4 | 1200 | 800 | 1.4 |

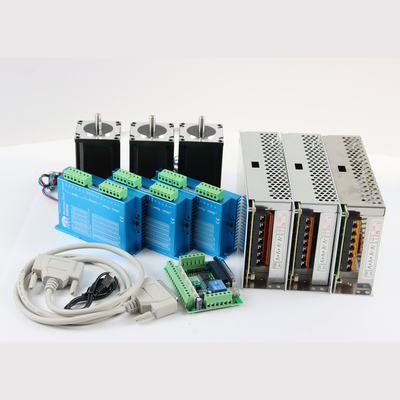

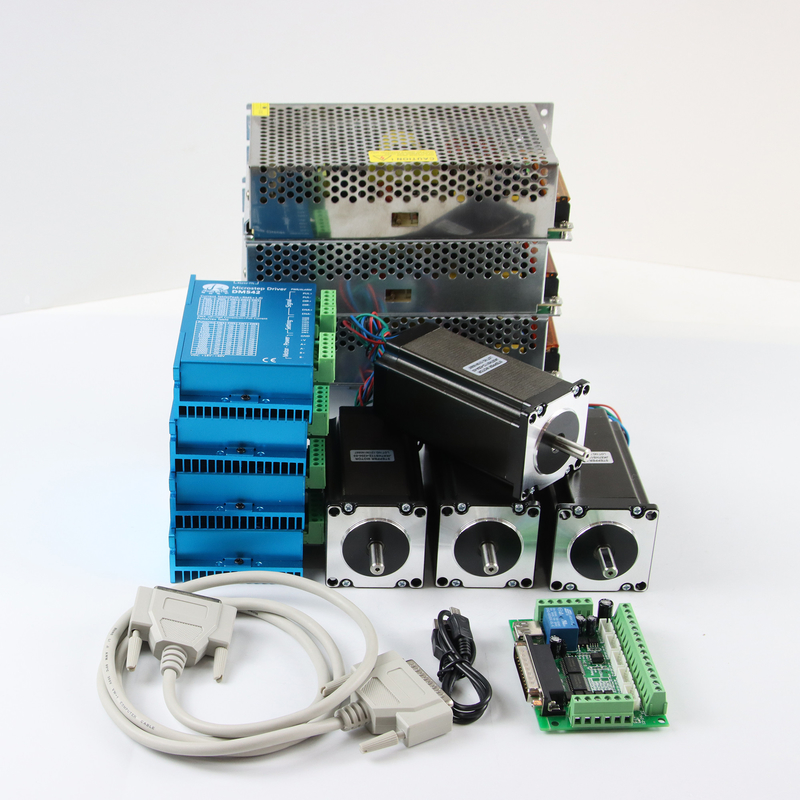

Details of Nema23 3axis stepper motor:
| Power Supply Model | Input voltage | Ouput voltage | Power | Weight | Size |
| S-300-48 | AC110V/220V | DC48V | 300W | 0.7kg | 215*115*50mm |
| S-1000-48 | AC110V/220V | DC48V | 1000W | 1.5kg | 245*245*65mm |
| S-360-60 | AC110V/220V | DC60V | 360W | 0.7kg | 215*115*50mm |
| S-1200-60 | AC110V/220V | DC60V | 1200W | 1.5kg | 245*245*65mm |
Power Supply Features:
Motor Features:
Application:
Drawing of Hybrid stepper motor:
Introdution of JKONGMOTOR:
Nema86 stepper motor Application:
FAQ:
