| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK42H2A5007K4-22 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$72~ US$98.5 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 15-25 days / For batch , 30 days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 50000pcs/month |
| Brand: | JK | Product Type: | Nema 17 Captive Linear Actuators |
|---|---|---|---|
| Model Name: | JK42H2A5007K4-22 | Phase No: | 2 Phase |
| Rated Voltage: | 5.0V | Current: | 0.7A |
| Resistance: | 7.2Ω | Inductance: | 8.7mH |
| Lead Screw Diameter: | Φ6.35mm | Lead Screw Lead: | 1.5875mm |
| High Light: | 2 Phase nema 17 linear actuator,5V 1.7A nema 17 linear actuator,Nema17 linear actuator stepper motor |
||

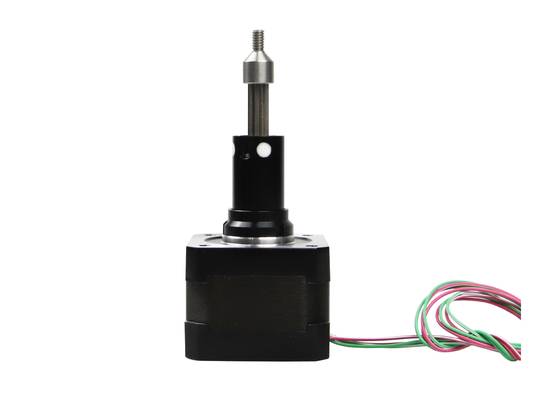

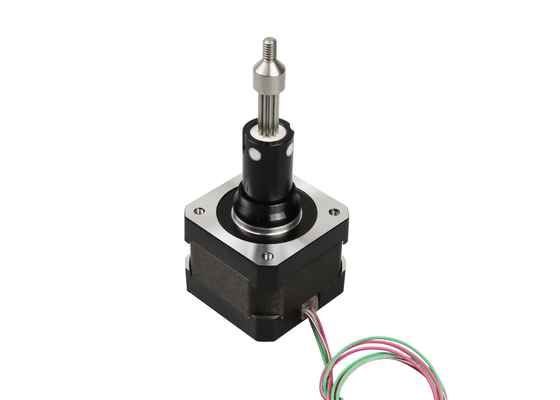

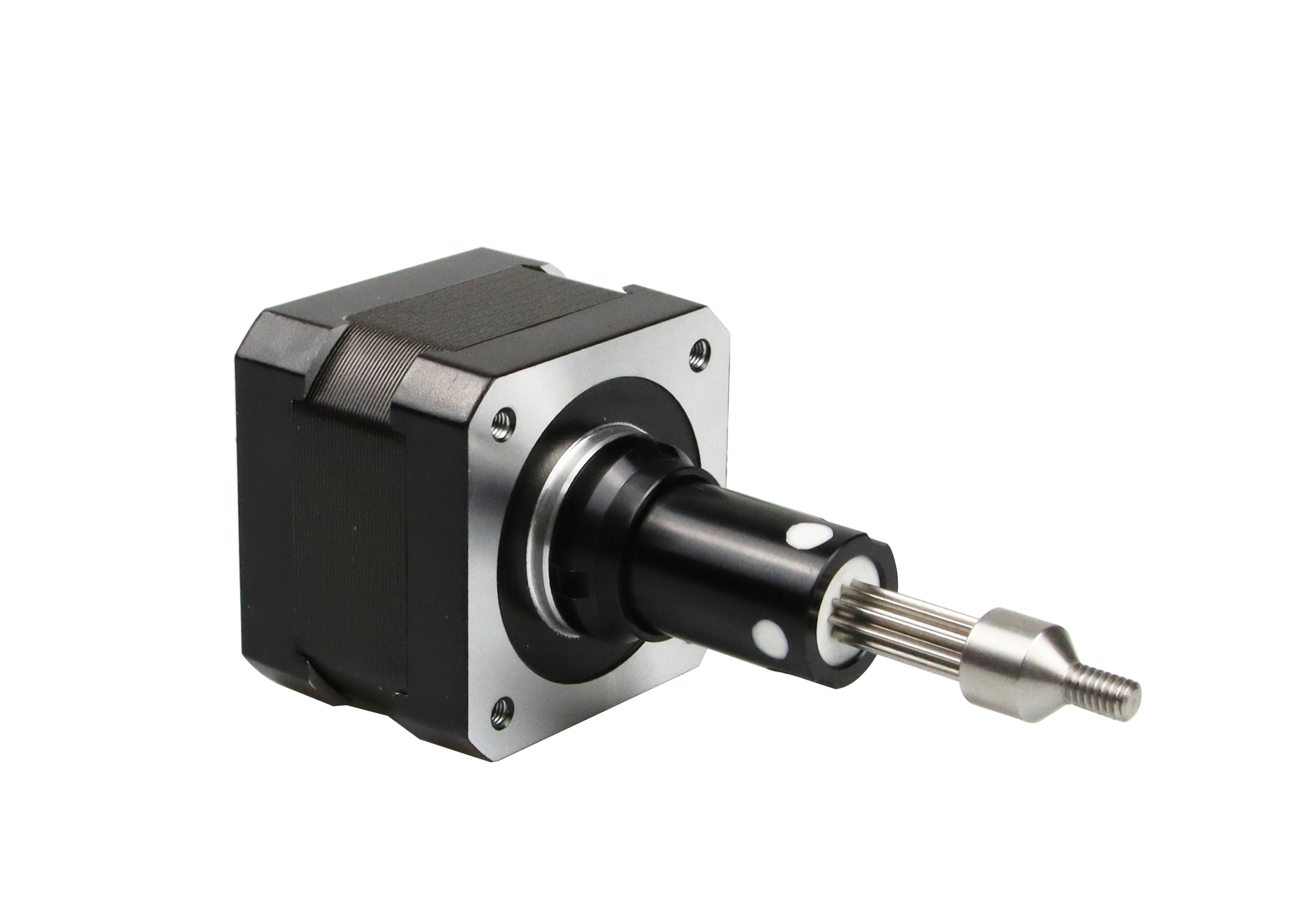

5V 1.7A 8.7mH Nema17 linear actuator stepper motor with Threaded Drive Screw JK42H2A5007K4-22
Product Features:
1. It has a threaded drive screwheld mostly inside the motor body which connected to a spline.
2. It has a built in anti-rotation though the use of a spline shaft that allows it to extend and retact as a unit with no requirements for additional anti-rotation.
3. The captive actuator is designed for shorter strokes up to about three inches, the basic design is least tolerant of system misalignment and is the most protective actuator style, beacuse it is self contained. The captive has the longest basic body style.
Product Description:
Brand:Jkongmotor
Product Type: Nema 17 Captive Linear Actuators
Model Name: JK42H2A5007K4-22
Phase No.: 2 Phase
Step Angle: 1.8Degree
Rated Voltage: 5.0V
Current: 0.7A
Resistance: 7.2Ω
Inductance: 8.7mH
Lead Screw Diameter: Φ6.35mm
Lead Screw Lead: 1.5875mm
Linear Travel Per Step: 0.0079mm/step
Leads No.: 4 leads
Insulation resistance: 100MΩ (500VDC)
Heat Rise: 80℃
Minimal Thurst /300pps: 10KG
Noted: This motor can replace Haydon motors
Detail Parameters:
| Brand | Jkongmotor | Product Type | JK42H2A5007K4-22 |
| Phase No. | 2 phase | Rated Voltage | 5V |
| Step Angle | 1.8deg | Lead Screw Diameter |
φ6.35mm |
| Lead Screw Lead | 1.5875mm | Linear Travel Per Step | 0.0079mm/step |
| Resistance | 7.2Ω | Inductance | 8.7mH |
| Leads No. | 4 leads | Insulation resistance | 100MΩ(500vdc) |
| Heat Rise | 80℃ | Minimal Thurst/300pps | 10KG |
FAQ:
Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you
Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
