| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK42HS48-1504A-634JSX32 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$28~US$35 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Name: | Stepper Motor | Leads: | 4 |
|---|---|---|---|
| Current: | 1.5A | Holding Torque: | 5.5kg.cm |
| Step Angle: | 1.8 Degree | Shaft: | 8mm |
| Phase Resistance: | 2.8Ω | Phase Inductance: | 4.8mH |
| Voltage: | 4.2v | Phase: | 2 |
| High Light: | 5.76V Nema 17 Worm Gearbox,Laser Engraving gearbox stepping motor,Engraving Machines gearbox stepping motor |
||

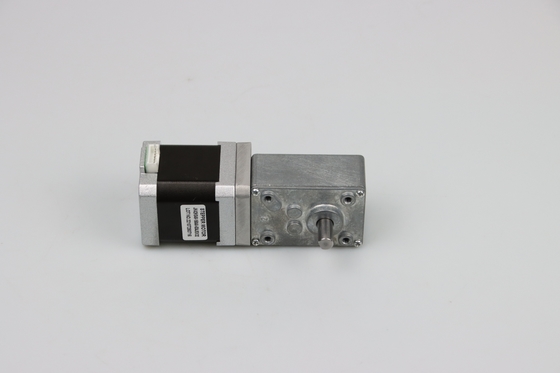

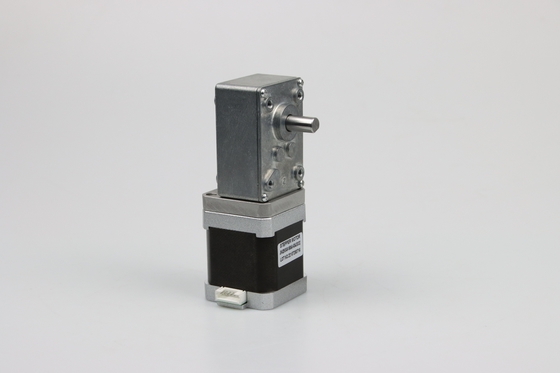

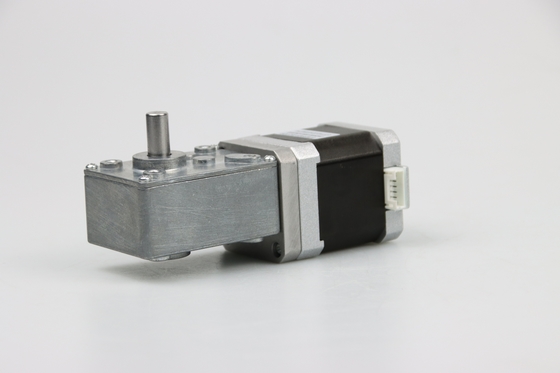

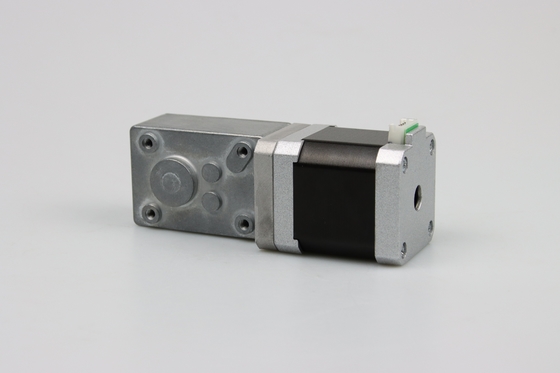

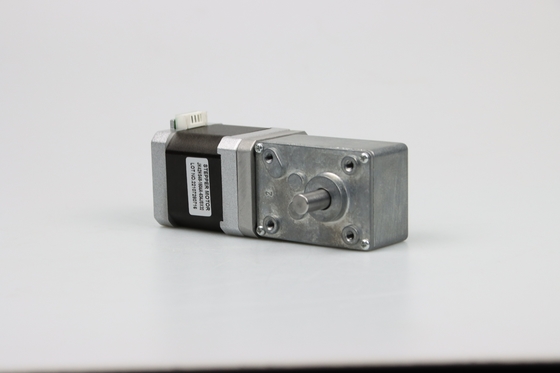

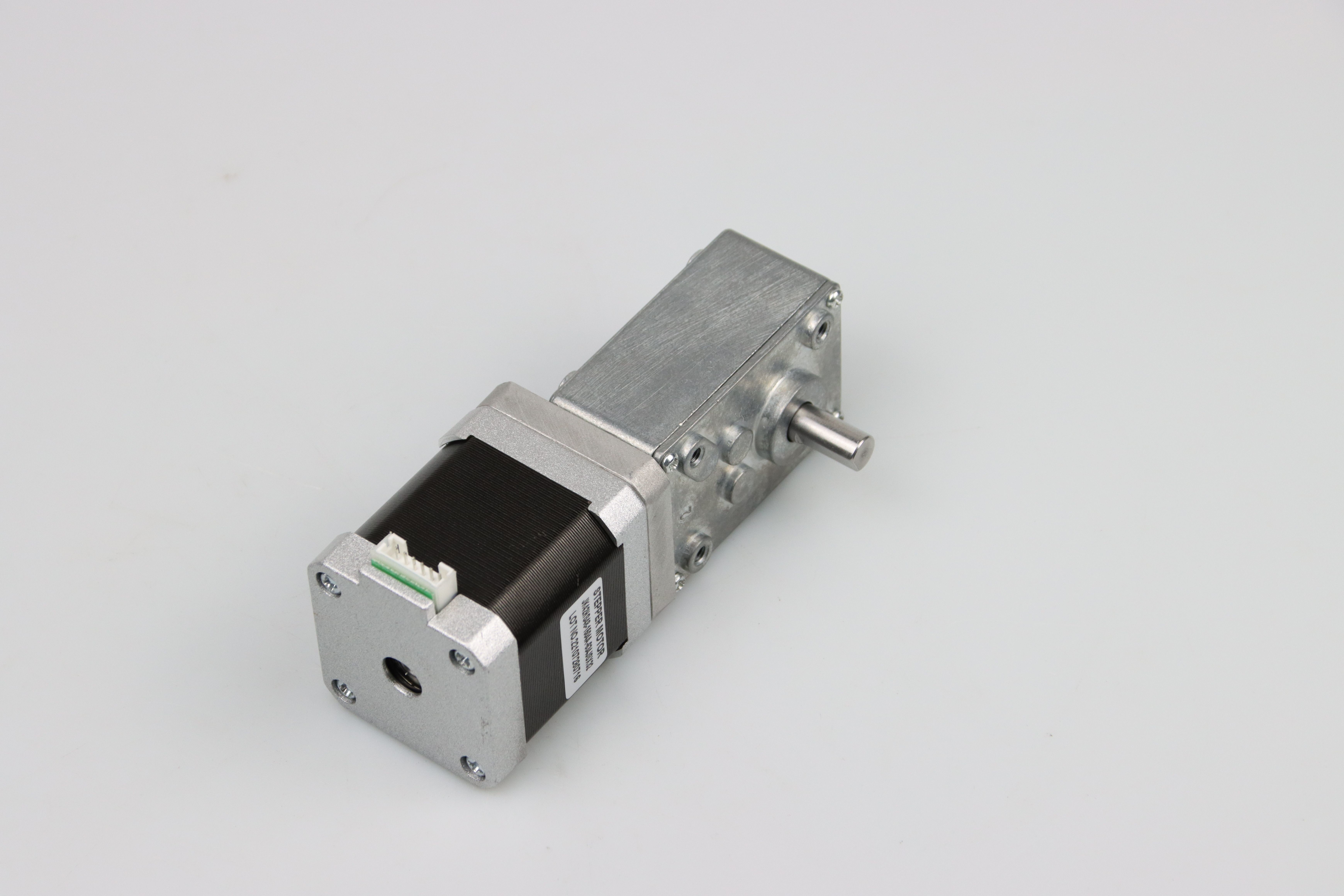

5.5kg.Cm 78.5oz.In 1.5A 5.76V Nema 17 Worm Gearbox Stepping Motor for Laser Engraving Machines
1.Genaral Specification of stepper motors:
2.Electrical Specification of Nema17 stepper moror:
|
Model No. |
Step Angle |
Motor Length |
Current /Phase |
Resistance /Phase |
Inductance /Phase |
Holding Torque |
# of Leads |
Detent Torque |
Rotor Inertia |
Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm² | Kg | |
| JK42HS25-0404 | 1.8 | 25 | 0.4 | 24 | 36 | 1.8 | 4 | 75 | 20 | 0.15 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS60-1004 | 1.8 | 60 | 1.0 | 8 | 13 | 7.5 | 4 | 280 | 102 | 0.5 |
We produce gearbox ratio include 1:17, 1: 32, 1: 50.
3.Drawing of JK42HS48 step motor with encoder:
4.Produce equipment:
5.Production Process:
6.Advantages of hybrid Stepper Motor
The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.
As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
They are used in numeric control of machine tools.
Used in tape drives, floppy disc drives, printers and electric watches.
The stepper motor also use in X-Y plotter and robotics.
It has wide application in textile industries and integrated circuit fabrications.
The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
Stepper motors of microwatts are used in the wrist watches.
In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
