| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK60/80/86BL |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US $20.8 - 40 / Pieces | 1 Piece/Pieces (Min. Order) |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 30000PCS/MONTH |
| Type: | Brushless DC Motor | Speed(RPM): | 3000Rpm |
|---|---|---|---|
| Voltage(V): | 48 V | Phase: | 3 |
| Poles: | 4/8 | Rated Torque: | Customized |
| Rated Current: | Customized | Rated Power: | Customized |
| Body Length: | Customized | Degree Of Protection: | IP30 |
| High Light: | 1000ppr encoder brushless synchronous motor,86mm Brushless synchronous Motor,synchronous 48v dc brushless motor |
||

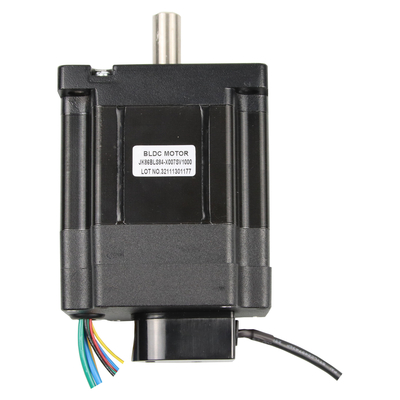

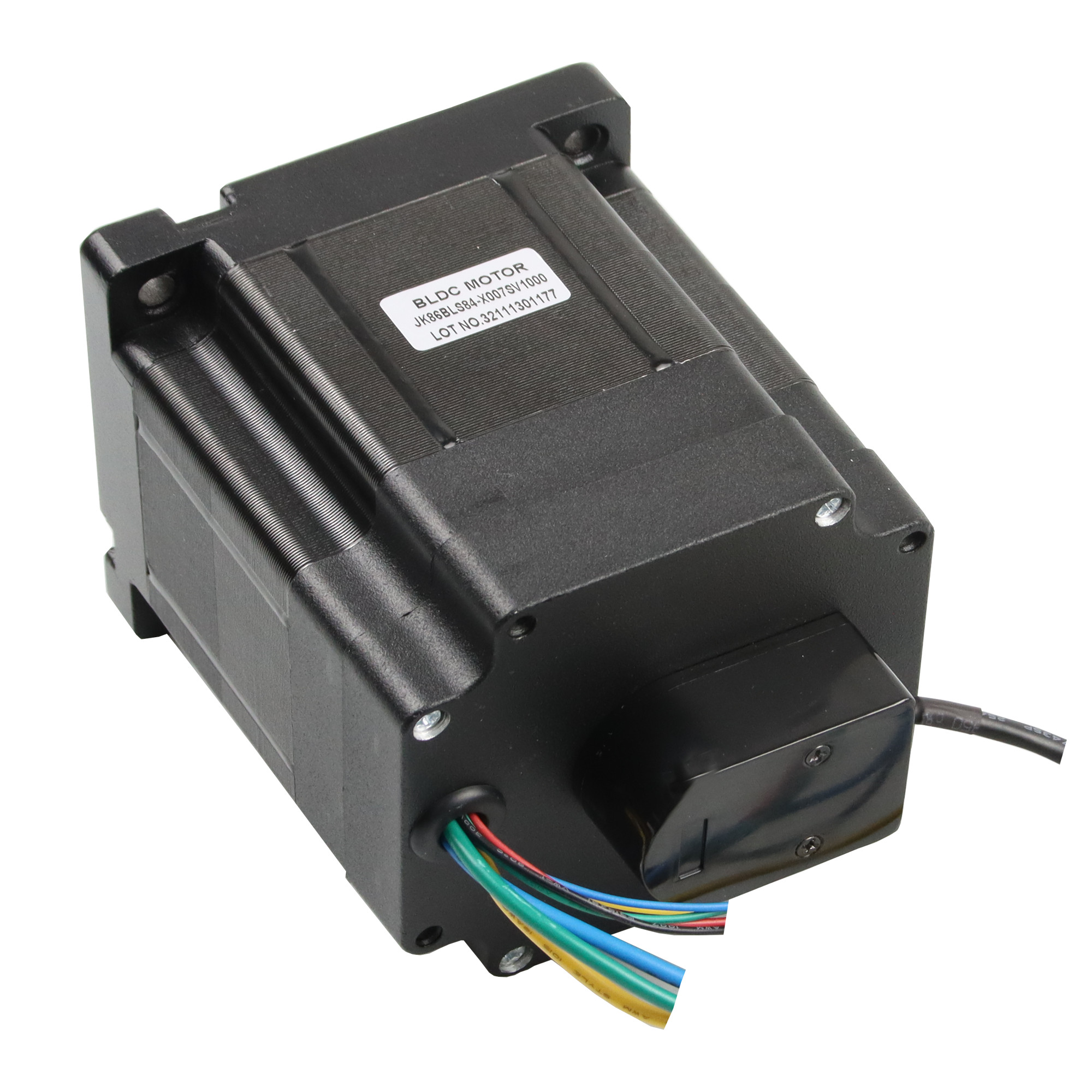

48V 3000rpm 330W 86mm BLDC Motor with 1000ppr encoder Brushless DC Motors
Electrical Specification of brushless dc motor:
| Product Series | Poles No. | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Motor Length |
| 42mm BLDC Motor | 8 | 24v | 4000rpm | 0.0625~0.25N.m | 26~105w | 41~100mm |
| 57mm BLDC Motor | 4 | 36v | 4000rpm | 0.055~0.44N.m | 23~184w | 37~107mm |
| 60mm BLDC Motor | 8 | 48v | 3000rpm | 0.3~1.2N.m | 94~377w | 78~120mm |
| 80mm BLDC Motor | 4 | 48v | 3000rpm | 0.35~1.4N.m | 110~440w | 78~138mm |
| 86mm BLDC Motor | 8 | 48v | 3000rpm | 0.35~2.1N.m | 110~660w | 71~138.5mm |
| 110mm BLDC Motor | 8 | 310v | 3000rpm | 1.65~6.6N.m | 518~2073w | 83~173mm |
| 130mm BLDC Motor | 10 | 310v | 3000rpm | 2.39~11.94N.m | 750~2500w | 115~190mm |
| Above only for representative products, products of special request can be made according to the customer request. | ||||||
Electrical Specification of round 48V brushless dc motor:
Drawing of 48VDC square DC motor:
We aslo supply Stepper motor Kits, linear stepper motor, Dc motor, Brake stepper motor, Stepper motor with Encoder, Flexible Coupling, Pully, Power supply, Breakout Board and so on..
