4 Leads 6.0A Cnc Router Servo Motor Kits 12Nm Nema 34 Motor

Product Details:

Place of Origin:	Jiangsu, China (Mainland)
Brand Name:	Jkongmotor
Certification:	CE, ROHS,ISO9001
Model Number:	JK86HSN120

Payment & Shipping Terms:

Minimum Order Quantity:	3-10pcs
Price:	US$200~US$320/pcs
Packaging Details:	with export carton . big quantity with pallet
Delivery Time:	For samples , 7-15 days / For batch , 15-25days
Payment Terms:	T/T , paypal , Western Union, L/C
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Type:	Closed Loop	Phase:	2
No Of Leads:	4	Shaft:	14mm Keyway Shaft
Keyway Height:	16mm	Current:	6.0A
Holding Torque:	12N.m	Stock:	Yes
Usage:	CNC Router	Voltage:	2.6V
High Light:	6.0A cnc router servo motor kits , 12Nm cnc router servo motor kits , CNC Router Nema34 motor kis

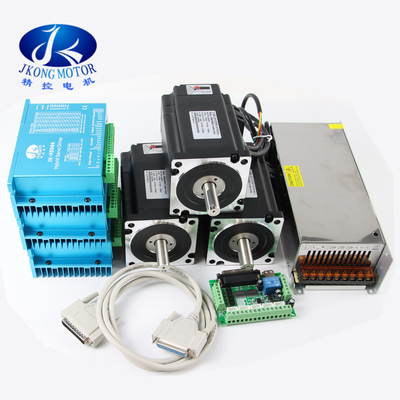

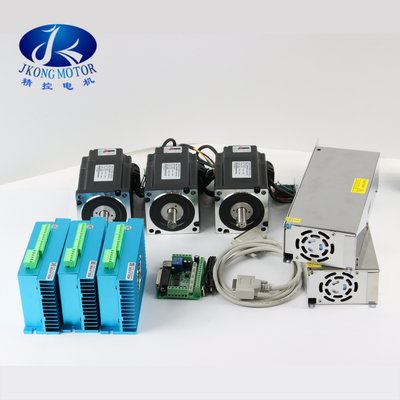

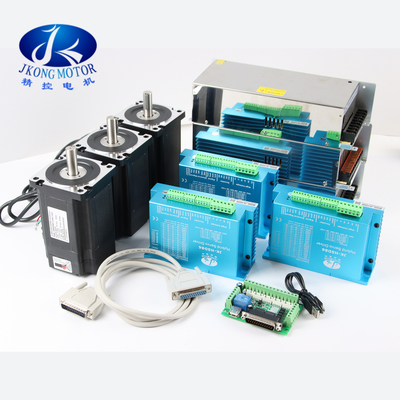

3 axis cnc hobby kit Nema34 Closed loop Stepper Servo Motor + Mach3 Breakout Board + Driver + Power Supply

Specification

item	value
Warranty	1 YEAR
Place of Origin	China
Brand Name	Jkongmotor
Model Number	Nema 34 Closed Loop stepper motor kits
Phase	2
Type	Hybrid
Current / Phase	6A
Product name	Nema 34 Closed Loop Stepper Motor
Step angle	1.8 degree
Motor length	78mm-155mm
Current	6A
Resistance	0.27Ω - 0.44Ω
Inductance	2mH - 3.8mH
Holding torque	4.6N.m - 13N.m
Number of leads	4
Detent torque	1.2kg.cm - 3.6kg.cm
Key words	3axis 4axis stepper motor kits

Item	Specifications
Step Angle	1.8°
Temperature Rise	80℃max
Ambient Temperature	-20℃~+50℃
Insulation Resistance	100 MΩ Min. ,500VDC
Dielectric Strength	500VAC for 1minute
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. radial force	220N (20mm from the flange)
Max. axial force	60N

Model No.	Step Angle	Motor Length	Current/Phase	Resistance/Phase	Inductance/Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia
	( °)	(L)mm	A	Ω	mH	N.m	No.	Kg.cm	g.cm²
JK86HSN45	1.8	78	6	0.27	2	4.6	4	1.2	1400
JK86HSN65	1.8	100	6	0.27	2.2	6.8	4	1.9	2200
JK86HSN85	1.8	115	6	0.36	3.8	8.5	4	2.4	2700
JK86HSN120	1.8	155	6	0.44	3.8	13	4	3.6	4000

Above only for representative products, products of special request can be made according to the customer request.

Suitable Power Supply Parameters:


Power Supply Model	Input voltage	Ouput voltage	Power	Weight	Size
S-300-48	AC110V/220V	DC48V	300W	0.7kg	21511550mm
S-1000-48	AC110V/220V	DC48V	1000W	1.5kg	24524565mm
S-360-60	AC110V/220V	DC60V	360W	0.7kg	21511550mm
S-1200-60	AC110V/220V	DC60V	1200W	1.5kg	24524565mm

Power Supply Features:This series of products has strong versatility and can be applied to various types of products such as lamps, monitoring, security, communication equipment, etc.

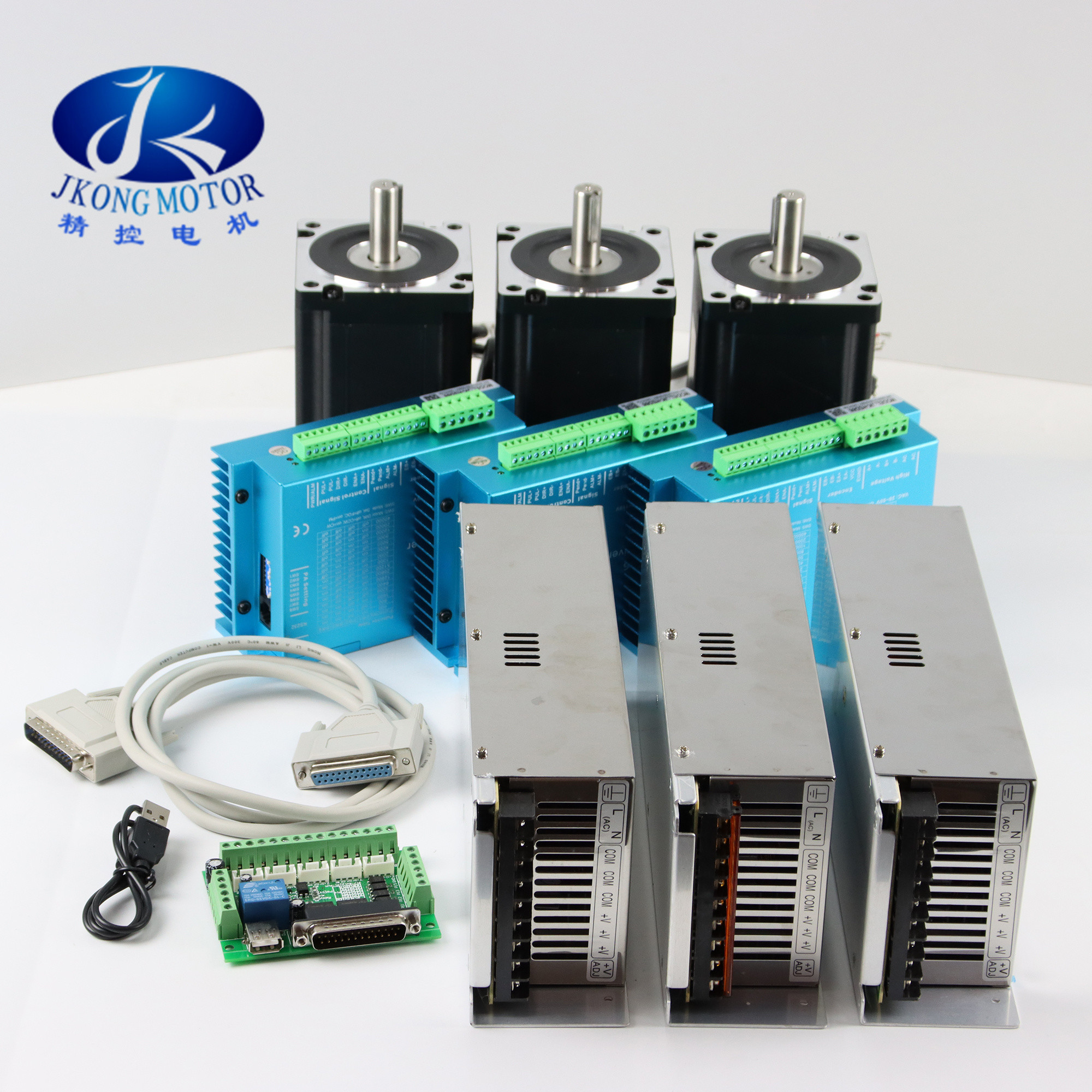

You may receive:1. 3Pcs Nema 34 Closed Loop Stepper Motor + 3Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts
2. 3Pcs Nema 34 Closed Loop Stepper Motor + 1Pcs Power Supply + 3PCS JK-HSD86 Driver + other parts

No.	Output Voltage	Motor Quantity	Supply Quantity	Driver	Other
1	48V	3pcs closed loop motor	3pcs ——300W	3pcs —— JK-HSD86	board + cable + usb
2	48V	3pcs closed loop motor	1pcs ——1000W	3pcs —— JK-HSD86
3	60V	3pcs closed loop motor	3pcs ——360W	3pcs —— JK-HSD86
4	60V	3pcs closed loop motor	1pcs ——1200W	3pcs —— JK-HSD86

Motor Features:

1. Low heat (static, the current is almost zero, no heat).

2.Smoothing (based on the feedback vector space vector current control algorithm and vector smoothing filtering technology, the

traditional stepping motor troubled low frequency resonance has a very good resistance).

3. Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper machine / winding machine /

placement machine / packaging machine / engraving machine / laser machine / LED / electronic equipment.

4. Large torque output in some cases can simplify the complexity of the machine.

Application:

JKONGMOTOR’s stepper motors are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical

devices,stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.

Motor Driver Parameters:


Features
Input voltage	24~80VAC/24~110VDC
Output current	2.4~7.2A (PEAK)
Pulse frequency	0~100KHz
MicroSteps	16 MicroSteps
Using environment	-5~50℃,avoiddust,high teperatureand corrosive gas
Storage environment	-20~+80℃,avoid direct sunlight

Motor Driver Features:

1,The latest 32-bit digital processing technology

2,advanced control algorithm for variable current and variable frequency conversion

3,Low heat generation, low motor vibration and stable operation

4,Built-in micro-segmentation

5,Smooth operation and low noise

6,Integrated parameter power-on auto-tuning functio

7,Subdivision setting (within 400~51200) with overcurrent, overvoltage, undervoltage protection

The characteristic of the output torque:

1) The larger the actual current of the motor, the greater the output torque, but the more copper loss (P=I²R) of the motor, the more heat the motor generates;

2) The higher the supply voltage of the driver, the higher the high-speed torque of the motor;

3) It can be seen from the moment frequency characteristic diagram of the stepping motor that the high speed is smaller than the medium and low speed torque.

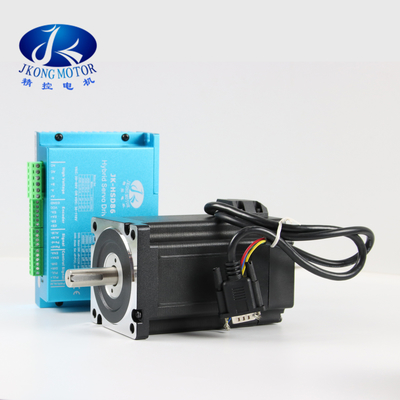

4 Leads 6.0A Cnc Router Servo Motor Kits 12Nm Nema 34 Motor 1

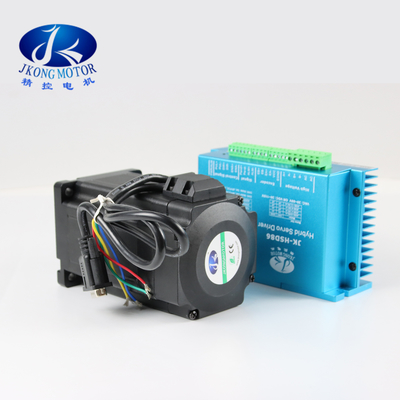

4 Leads 6.0A Cnc Router Servo Motor Kits 12Nm Nema 34 Motor 2
