| Place of Origin: | Jiangsu, China (Mainland) |
| Brand Name: | Jkongmotor |
| Certification: | CE, ROHS,ISO9001 |
| Model Number: | JK90BL30-625 |
| Minimum Order Quantity: | 3-10pcs |
|---|---|
| Price: | US$49~US$80 |
| Packaging Details: | with export carton . big quantity with pallet |
| Delivery Time: | For samples , 7-15 days / For batch , 15-25days |
| Payment Terms: | T/T , paypal , Western Union, L/C |
| Supply Ability: | 100000pcs/month |
| Nema: | 90mm Round Bldc Motor | Holding Torque: | 1N.m |
|---|---|---|---|
| Motor Length: | 63.5mm | Number Of Phase: | 3phase |
| Number Of Poles: | 8 | Rated Voltage: | 220vac |
| Rated Speed: | 2500rpm | Rated Power: | 262w |
| Degree Of Protection: | IP30 | Protect Feature: | Water Proof |
| High Light: | 4 Poles Round bldc motor,3 phase 90mm round bldc motor,4 Poles round brushless motor |
||
3 phase OEM service Customized Round 90mm brushless dc motors
Product Name: Brushless DC Motor
Number of Phase: 3 Phase
Number of Poles: 4 Poles /8 Poles /10 Poles
Rated Voltage: 24v /36v /48v /310v
Rated Speed: 3000rpm /4000rpm /or customized
Rated Torque: Customized
Rated Current: Customized
Rated Power: 23w~2500W
1.Production description:
| Product Series | Poles No. | Rated Voltage | Rated Speed | Rated Torque | Rated Power | Motor Length |
| 42mm BLDC Motor | 8 | 24v | 4000rpm | 0.0625~0.25N.m | 26~105w | 41~100mm |
| 57mm BLDC Motor | 4 | 36v | 4000rpm | 0.055~0.44N.m | 23~184w | 37~107mm |
| 60mm BLDC Motor | 8 | 48v | 3000rpm | 0.3~1.2N.m | 94~377w | 78~120mm |
| 80mm BLDC Motor | 4 | 48v | 3000rpm | 0.35~1.4N.m | 110~440w | 78~138mm |
| 86mm BLDC Motor | 8 | 48v | 3000rpm | 0.35~2.1N.m | 110~660w | 71~138.5mm |
| 110mm BLDC Motor | 8 | 310v | 3000rpm | 1.65~6.6N.m | 518~2073w | 83~173mm |
| 130mm BLDC Motor | 10 | 310v | 3000rpm | 2.39~11.94N.m | 750~2500w | 115~190mm |
| Above only for representative products, products of special request can be made according to the customer request. | ||||||

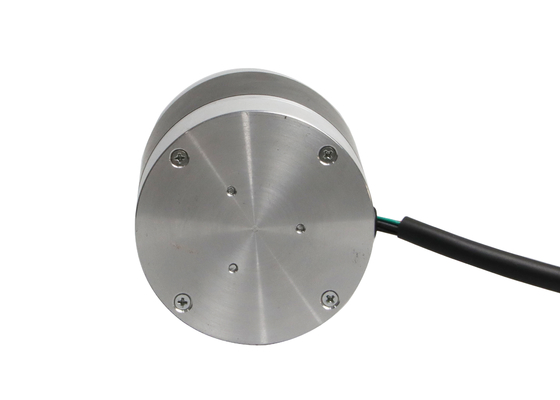

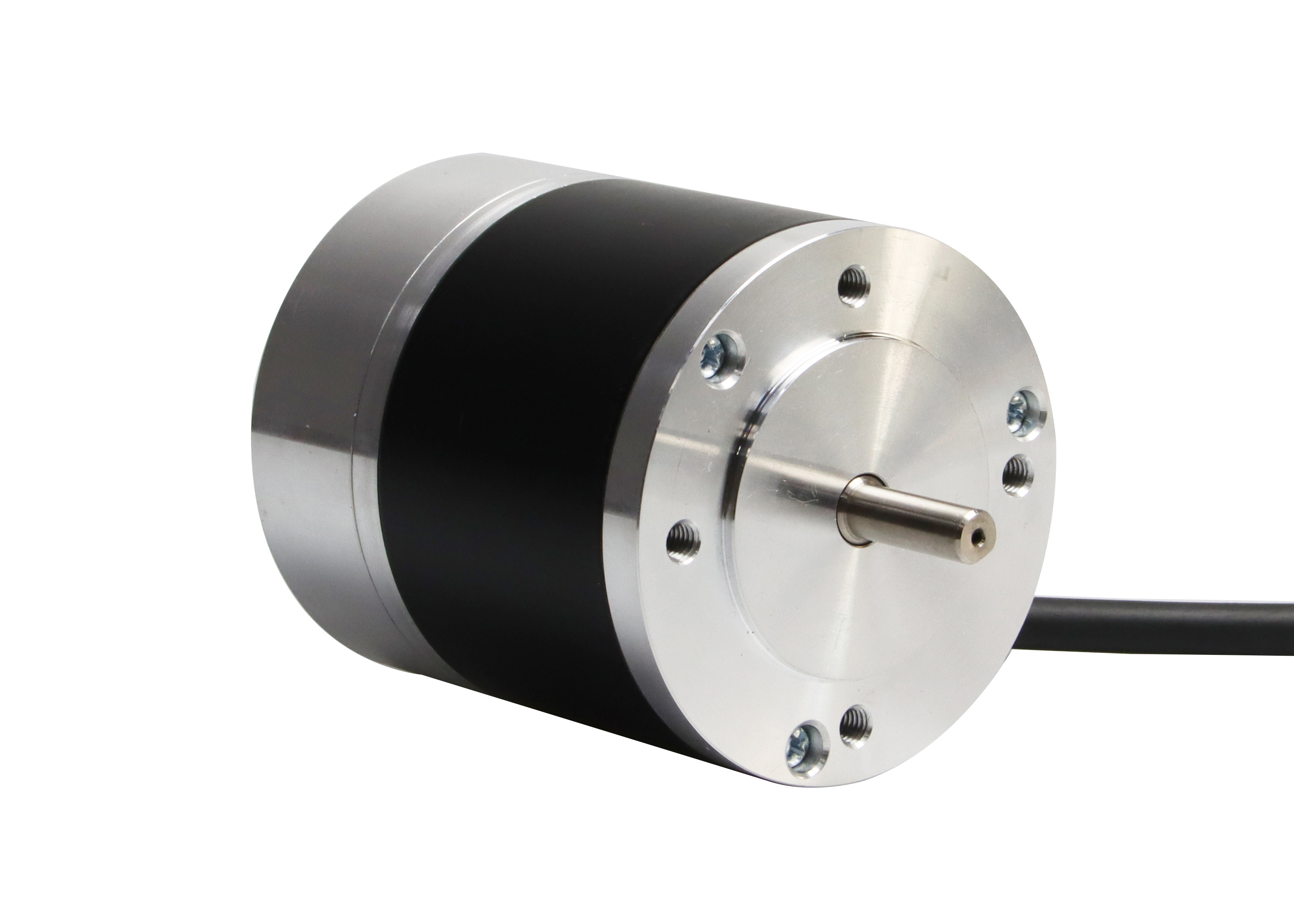

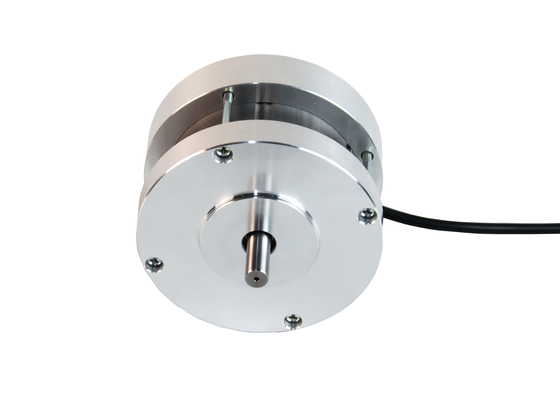

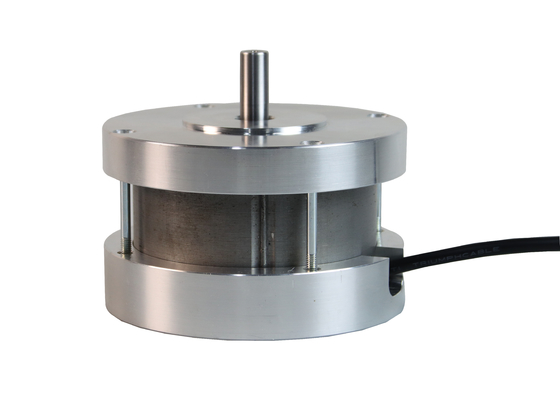

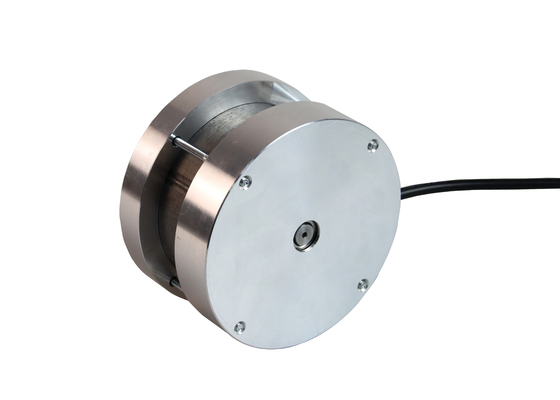

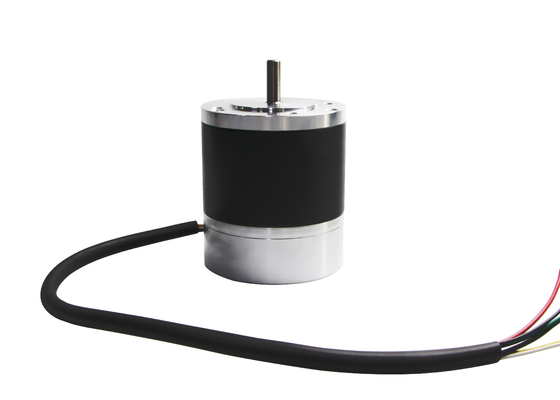

2.Product photos:
FAQ:
Q: 1. Can you make the gearbox or gearmotor with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: 2. Do you provide the samples?
A: YES. Our company can provide the samples to you
Q:3.Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Q: 4. why should you buy from us not from other suppliers?
A: Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
Q: 5. How to ship to us?
A: We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
Q: 6. How can I know the product is suitable for me?
A: Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
Are brushless DC motors better? (Brushless Motor Advantages)
Since brushless DC motors have no brushes to get worn out, they represent a huge leap forward in technology.
Brushless motors have significantly higher efficiency and performance, and a lower susceptibility to mechanical wear than their brushed counterparts.
Can you have a brushless DC motor?
DC motors can be further divided into brushed DC motors and brushless DC motors, depending on whether they have brushes (electrodes). These motors work by means of the mechanical linkage between their commutator and brushes.
Brushless DC motors offer long life and ease of maintenance.
