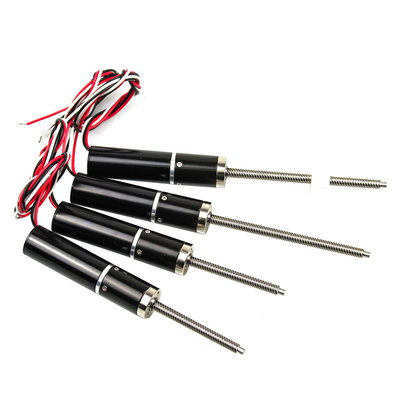

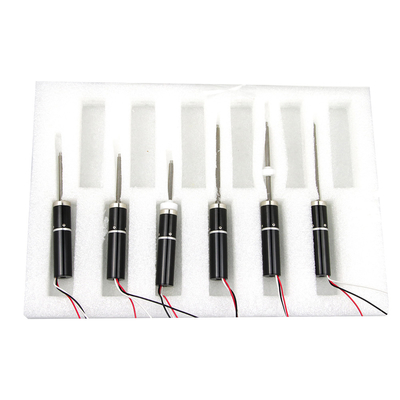

24v 11700rpm 6.7W 16mm Coreless Micro Bldc Motor Series Wound Commutation

24v 11700rpm 6.7W 16mm Coreless Micro Bldc Motor Series Wound Commutation

  • 24v 11700rpm 6.7W 16mm Coreless Micro Bldc Motor Series Wound Commutation
  • 24v 11700rpm 6.7W 16mm Coreless Micro Bldc Motor Series Wound Commutation
  • 24v 11700rpm 6.7W 16mm Coreless Micro Bldc Motor Series Wound Commutation
24v 11700rpm 6.7W 16mm Coreless Micro Bldc Motor Series Wound Commutation
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK80BLS01-19-IE
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $69 - 78 / Unit
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Product Name: 16mm Coreless Dc Motor Commutation: Brushless
Protect Feature: Totally Enclosed Construction: Series Wound
Rated Speed: 11700rpm Rated Voltage: 12v
Rated Power: 6.7W Torque: 5.75 MNm
Shaft Type: Leadscrew TR4.77x10.16 Feature: Bldc Motor With Gearbox, Encoder
High Light:

coreless permanent magnet bldc motor

,

16mm coreless brushless bldc motor

,

11700rpm micro bldc motor

16mm 24v 11700rpm 6.7W Brushless Bldc Motors Micro Coreless Motors Planetary Gear-motor

16mm 12v 24v bldc motor Specifications:


itemvalue
Warranty3months-1year
Place of OriginChina
Brand NameJKONGMOTOR
Model Number16mm coreless dc motor
UsageBOAT, Car, Electric Bicycle, FAN, Home Appliance, Cosmetic instrument, SMART HOME
TypeBrushless Motor
Torque5.75 mNm
ConstructionSeries Wound
CommutationBrushless
Protect FeatureTotally Enclosed
Speed(RPM)11700rpm
Continuous Current(A)0.85A
EfficiencyIE 1
Product Name16mm coreless dc motor
Typebrushless dc motor / bldc motor
Rated Voltage12V
Rated Speed11700rpm
Rated Power6.7W
Shaft typeLeadscrew TR4.77x10.16
Keywordsdc coreless motor
Weight85g
Featurebldc motor with gearbox, encoder
Itemgeared bldc motor



Rated parameter valueUnitE51604008 / E51604008
Rated voltageV12
Rated speedrpm11700
Rared current(max.continuous current)A0.85
Rated torque(max.continuous torque)mNm5.75
Rated powerW6.7
Motor Datasheet
No load speedrpm15000
No load currentmA80
Stall currentA3.5
Stall torquemNm25.8
Max. efficiency%72
Terminal resistance phase to phase3.4
Terminal inductance phase to phasemH0.17
Back-EMF constantmV/rpm0.78
Torque constantmNm/A7.47
Speed constantrpm/V1279
Current constantA/mNm0.134
Speed / torque gradientrpm/mNm582.43
Mechanical time constantms5.86
Rotor inertiagcm²0.96
General specifications
Operating temperature range-30.....+125
winding Max permissible+125
Bearing type ball bearings, preloaded
Magnet material NdFeB
Housing material stainless steel / aluminium
Direction of rotation electronically reversible
Max. speedrpm30000
Number of pole pairs 1
Number of phases 3
Hall sensors digital with Pull-up Resistor
Axial playmm≤0.2
Direction of force push
Aixial at standstill (push or pull)N<=40
Weight of motorg85

Above only for representative products, products of special request can be made according to the customer request. This coreless dc motor we can do Φ16mm, Φ22mm, Φ30mm, Φ32mm, Φ35mm, Φ43mm.

Features:
High energy density; Start and brake quickly, and the reaction is very fast; Less electromagnetic interference; Small rotation fluctuation; No torque lag; Good stability; Good cooling effect; High peak torque.

Application:
use for robots stepper motor, electronic automatic equipment stepping motor , medical
instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor ,printer stepper
motor, textile machinery stepper motor. Cnc router stepper motor.

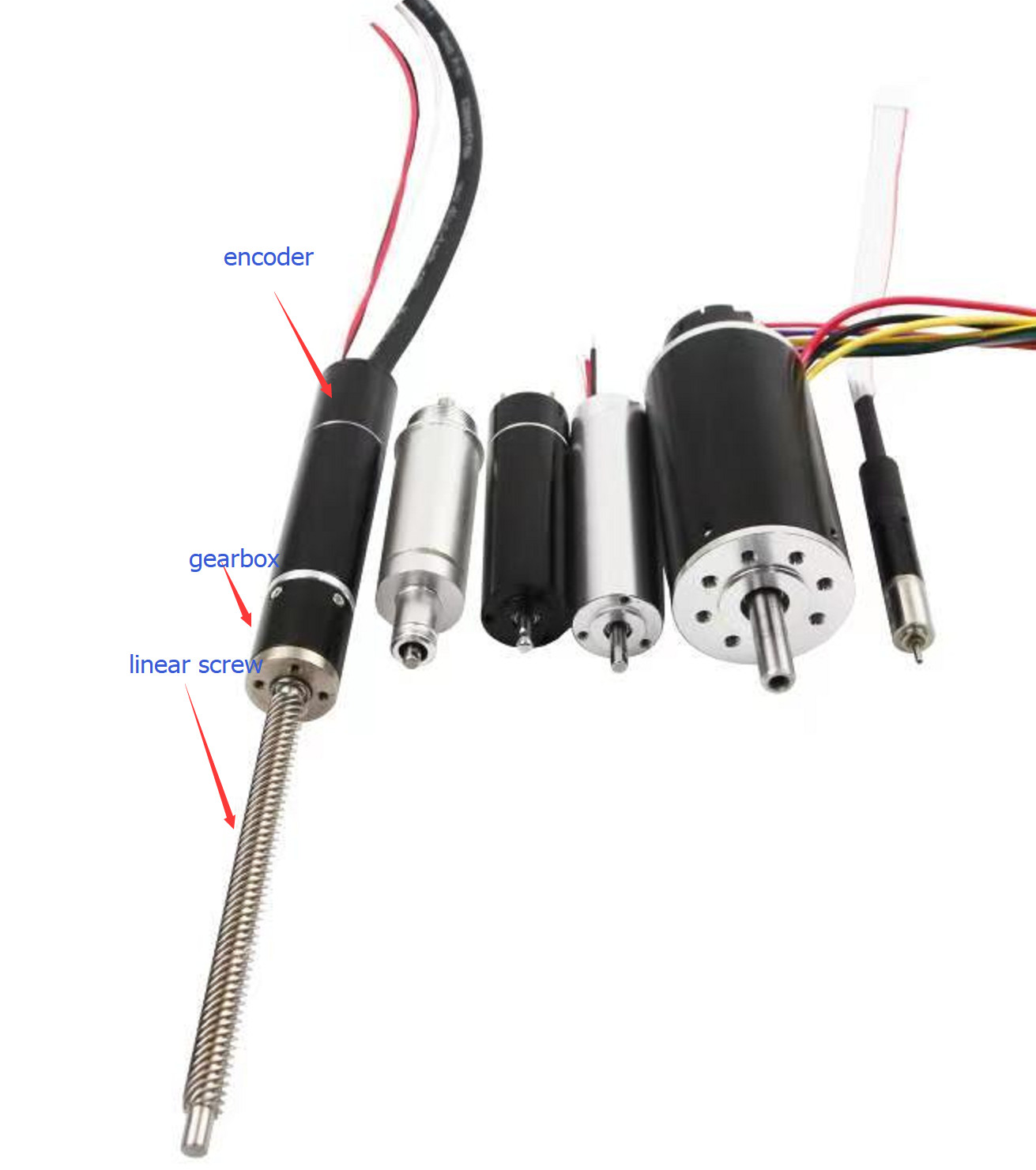

Details of  Brushless dc motor:
