Name: Stepper Motor Leads: 4
Current: 3A Holding Torque: 3.0N.m
Step Angle: 1.8 Degree Shaft: 8mm
Phase Resistance: 1.6Ω Phase Inductance: 7.5mH
Voltage: 4.8v Phase: 2
Shaft Length: 21mm Driver: DM542/JKD5056S
High Light:

NEMA 23 cnc stepper kit

,

57BYG cnc stepper kit

,

57BYG nema 23 stepper motor

57BYG 3A 3.0N.m 425oz.in 57x57x112mm NEMA 23 Stepping Motor Kit CNC


1.Genaral Specification of 57mm hybrid stepper motor:


1.8 Step Motor Features:

  • Model Number: nema23 stepper motor
  • Phase: 2
  • Type: Hybrid
  • Holding Torque: 0.48N.m~3.1N.m
  • Current / Phase: 1A~4.2A
  • Motor length: 41mm~112mm
  • Leads: 4-leads or 6-leads or 8-leads
  • Detet Torque: 250g.cm~1200g.cm
  • Rotor Inertia: 150g.cm2~800g.cm2
  • Weight: 0.47kg~1.4kg
  • Model Number: JK57HS112-3004
  • Holding Torque: 3.1N.m
  • Current / Phase: 3.0A
  • Motor length: 112mm
  • Leads: 4-leads
  • Detet Torque: 1200g.cm
  • Rotor Inertia: 800g.cm2
  • Weight: 1.4kg



2.Electrical Specification of Nema23 stepper motors:



Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. g.cm g.cm57BYG 3A 3.0N.M 425oz.In  NEMA 23 Cnc Stepper Kit 57x57x112mm 0 Kg
JK57HS41-1006 1.8 41 1 7.1 8 0.48 6 250 150 0.47
JK57HS41-2008 1.8 41 2 1.4 1.4 0.39 8 250 150 0.47
JK57HS41-2804 1.8 41 2.8 0.7 1.4 0.55 4 250 150 0.47
JK57HS51-1006 1.8 51 1 6.6 8.2 0.72 6 300 230 0.59
JK57HS51-2008 1.8 51 2 1.8 2.7 0.9 8 300 230 0.59
JK57HS51-2804 1.8 51 2.8 0.83 2.2 1.01 4 300 230 0.59
JK57HS56-2006 1.8 56 2 1.8 2.5 0.9 6 350 280 0.68
JK57HS56-2108 1.8 56 2.1 1.8 2.5 1 8 350 280 0.68
JK57HS56-2804 1.8 56 2.8 0.9 2.5 1.2 4 350 280 0.68
JK57HS64-2804 1.8 64 2.8 0.8 2.3 1 4 400 300 0.75
JK57HS76-2804 1.8 76 2.8 1.1 3.6 1.89 4 600 440 1.1
JK57HS76-3006 1.8 76 3 1 1.6 1.35 6 600 440 1.1
JK57HS76-3008 1.8 76 3 1 1.8 1.5 8 600 440 1.1
JK57HS82-3004 1.8 82 3 1.2 4 2.1 4 1000 600 1.2
JK57HS82-4008 1.8 82 4 0.8 1.8 2 8 1000 600 1.2
JK57HS82-4204 1.8 82 4.2 0.7 2.5 2.2 4 1000 600 1.2
JK57HS100-4204 1.8 100 4.2 0.75 3 3 4 1100 700 1.3
JK57HS112-3004 1.8 112 3 1.6 7.5 3 4 1200 800 1.4
JK57HS112-4204 1.8 112 4.2 0.9 3.8 3.1 4 1200 800 1.4

  Above only for representative products, products of special request can be made according to the customer request.



3.Drawing of JK57HS112 stepper motor:

57BYG 3A 3.0N.M 425oz.In  NEMA 23 Cnc Stepper Kit 57x57x112mm 1

57BYG 3A 3.0N.M 425oz.In  NEMA 23 Cnc Stepper Kit 57x57x112mm 2

57BYG 3A 3.0N.M 425oz.In  NEMA 23 Cnc Stepper Kit 57x57x112mm 3


  57BYG 3A 3.0N.M 425oz.In  NEMA 23 Cnc Stepper Kit 57x57x112mm 4

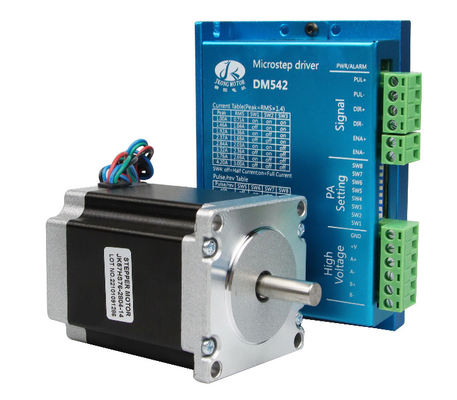

4. The motor with driver kit : JK57HS112 + JKD5056S/DM542
