3A 3.0N.M 425oz.In 57x57x112mm 57BYG Nema 23 Cnc Kit with DM542 driver

3A 3.0N.m 425oz.in 57x57x112mm 57BYG NEMA 23 Stepping Motor Kit CNC

1.Genaral Specification of 57mm hybrid stepper motor:

1.8 Step Motor Features:

• Model Number: nema23 stepper motor
• Phase: 2
• Type: Hybrid
• Holding Torque: 0.48N.m~3.1N.m
• Current / Phase: 1A~4.2A
• Motor length: 41mm~112mm
• Leads: 4-leads or 6-leads or 8-leads
• Detet Torque: 250g.cm~1200g.cm
• Rotor Inertia: 150g.cm2~800g.cm2
• Weight: 0.47kg~1.4kg
• Model Number: JK57HS112-3004
• Holding Torque: 3.1N.m
• Current / Phase: 3.0A
• Motor length: 112mm
• Leads: 4-leads
• Detet Torque: 1200g.cm
• Rotor Inertia: 800g.cm²
• Weight: 1.4kg

2.Electrical Specification of Nema23 stepper motors:

Model No.	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm	Kg
JK57HS41-1006	1.8	41	1	7.1	8	0.48	6	250	150	0.47
JK57HS41-2008	1.8	41	2	1.4	1.4	0.39	8	250	150	0.47
JK57HS41-2804	1.8	41	2.8	0.7	1.4	0.55	4	250	150	0.47
JK57HS51-1006	1.8	51	1	6.6	8.2	0.72	6	300	230	0.59
JK57HS51-2008	1.8	51	2	1.8	2.7	0.9	8	300	230	0.59
JK57HS51-2804	1.8	51	2.8	0.83	2.2	1.01	4	300	230	0.59
JK57HS56-2006	1.8	56	2	1.8	2.5	0.9	6	350	280	0.68
JK57HS56-2108	1.8	56	2.1	1.8	2.5	1	8	350	280	0.68
JK57HS56-2804	1.8	56	2.8	0.9	2.5	1.2	4	350	280	0.68
JK57HS64-2804	1.8	64	2.8	0.8	2.3	1	4	400	300	0.75
JK57HS76-2804	1.8	76	2.8	1.1	3.6	1.89	4	600	440	1.1
JK57HS76-3006	1.8	76	3	1	1.6	1.35	6	600	440	1.1
JK57HS76-3008	1.8	76	3	1	1.8	1.5	8	600	440	1.1
JK57HS82-3004	1.8	82	3	1.2	4	2.1	4	1000	600	1.2
JK57HS82-4008	1.8	82	4	0.8	1.8	2	8	1000	600	1.2
JK57HS82-4204	1.8	82	4.2	0.7	2.5	2.2	4	1000	600	1.2
JK57HS100-4204	1.8	100	4.2	0.75	3	3	4	1100	700	1.3
JK57HS112-3004	1.8	112	3	1.6	7.5	3	4	1200	800	1.4
JK57HS112-4204	1.8	112	4.2	0.9	3.8	3.1	4	1200	800	1.4

  Above only for representative products, products of special request can be made according to the customer request.

3.Drawing of JK57HS112 stepper motor:

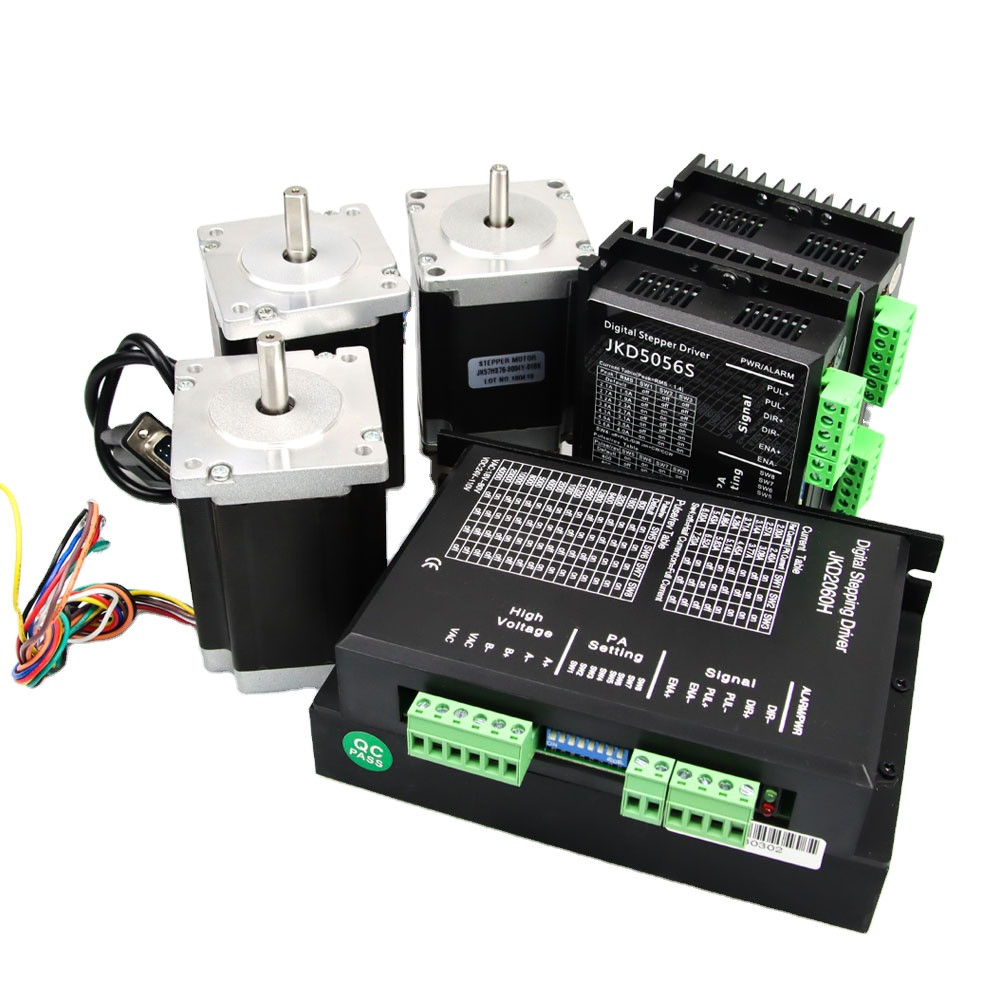

4. The motor with driver kit : JK57HS112 + JKD5056S/DM542


5.Produce equipment:



6.Production Process:

7.Advantages of hybrid Step Motor:

The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   8.Applications of electric motor:

• As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
• They are used in numeric control of machine tools.
• Used in tape drives, floppy disc drives, printers and electric watches.
• The stepper motor also use in X-Y plotter and robotics.
• It has wide application in textile industries and integrated circuit fabrications.
• The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
• These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
• Stepper motors of microwatts are used in the wrist watches.
• In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
