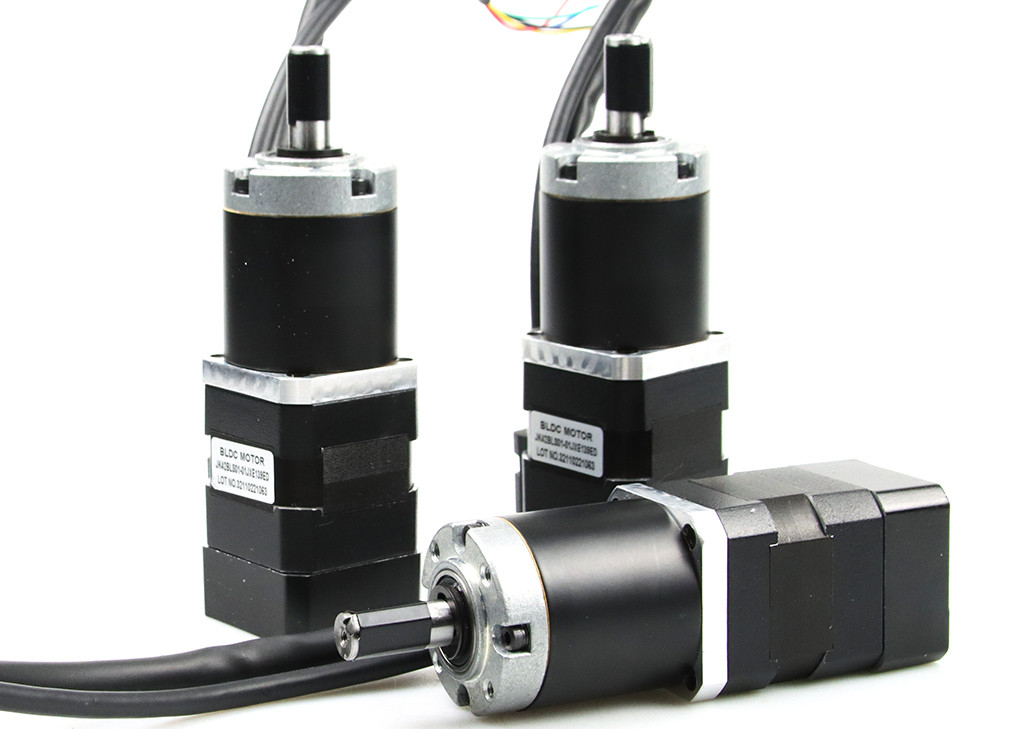

Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor With Encoder

Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor With Encoder

  • Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder
Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK42BLS01-01JXE139ED
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $62 - 166 / Unit
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Phase: 3-phase Poles: 8
Voltage Range: 48V Keywords: Bldc Gear Motor
Output Power: 26W Speed Ratio: 139:1
Rated Torque: 0.0625N.m Speed: 4000rpm
No Load Speed: 5500rpm No Load Current: 0.5A
High Light:

4000RPM Brushless DC Gear Motor

,

42mm Brushless DC Gear Motor

,

26W brushless planetary gear motor

48V 4000RPM 26W 42mm small Geared Brushless Motor With encoder



BLDC motors also offer high durability and low electric noise generation, thanks to the lack of brushes. With brushed motors, the brushes and commutator wear down as a result of continuous moving contact, and also produce sparks where contact is made. Electrical noise, in particular, is the result of the strong sparks that tend to occur at the areas where the brushes pass over the gaps in the commutator. This is why BLDC motors are often considered preferable in applications where it is important to avoid electrical noise.



Product Series Poles No. Rated Voltage Rated Speed Rated Torque Rated Power Motor Length
42mm BLDC Motor 8 24v 4000rpm 0.0625~0.25N.m 26~105w 41~100mm
57mm BLDC Motor 4 36v 4000rpm 0.055~0.44N.m 23~184w 37~107mm
60mm BLDC Motor 8 48v 3000rpm 0.3~1.2N.m 94~377w 78~120mm
80mm BLDC Motor 4 48v 3000rpm 0.35~1.4N.m 110~440w 78~138mm
86mm BLDC Motor 8 48v 3000rpm 0.35~2.1N.m 110~660w 71~138.5mm
110mm BLDC Motor 8 310v 3000rpm 1.65~6.6N.m 518~2073w 83~173mm
130mm BLDC Motor 10 310v 3000rpm 2.39~11.94N.m 750~2500w 115~190mm
Above only for representative products, products of special request can be made according to the customer request.



Genaral Specification of bldc motor:



Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max.radial force 75N @20mm form the flange
Max.axial force 15N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance

100MΩ Min.,500VDC





Specification of JK42BLS motor:



Model
Specification Unit JK42BLS01 JK42BLS02 JK42BLS03 JK42BLS04
Number Of Phase Phase 3
Number Of Poles Poles 8
Rated Voltage VDC 24
Rated Speed Rpm 4000
Rated Torque N.m 0.0625 0.125 0.185 0.25
Rated Current Amps 1.8 3.3 4.8 6.3
Rated Power W 26 52.5 77.5 105
Peak Torque N.m 0.19 0.38 0.56 0.75
Peak Current Amps 5.4 10.6 15.5 20
Back E.M.F V/Krpm 4.1 4.2 4.3 4.3
Torque Constant N.m/A 0.039 0.04 0.041 0.041
Rotor Inertia g.c㎡ 24 48 72 96
Body Length mm 41 61 81 100
Weight Kg 0.3 0.45 0.65 0.8
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity 85% RH
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000 meters or less






Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder 0

Details of Brushless dc motor:



Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder 1





Drawing of 42BLS motor:


Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder 2



Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder 3

Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder 4

Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder 5Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder 6Geared 48V 4000RPM 26W 42mm Brushless DC Gear Motor  With Encoder 7

FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.



Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.



Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.



Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.



Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
