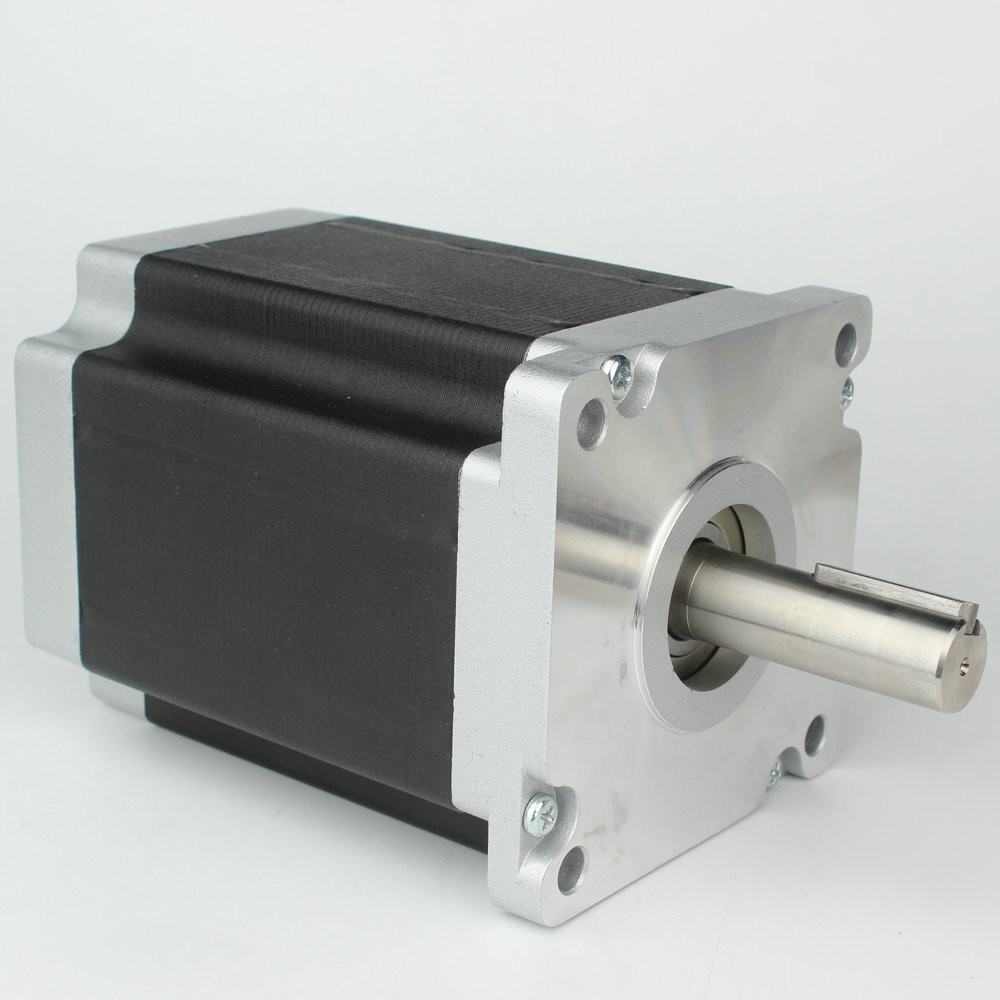

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34 Hybrid Stepper Motor With 4 Leads

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34 Hybrid Stepper Motor With 4 Leads

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads
video
85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK86HS78
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US$22.8~US$26.8
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Name: Stepper Motor Leads: 4
Current: 5.5A Holding Torque: 4.6N.m
Step Angle: 1.8 Degree Shaft: 12.7mm
Phase Resistance: 0.46Ω Phase Inductance: 4mH
Voltage: 2.53v Phase: 2
Shaft Length: 32mm Driver: DM860H/JKD2060H
High Light:

4 leads 85BYGH450A motor

,

78MM 85BYGH450A motor

,

78mm NEMA34 Hybrid Stepper Motor

85BYGH450A 78 MM 45kg.Cm NEMA34 , 2 phase stepper motor with 4 leads



Product description: 85BYGH450A & 86BYGH450A cnc stepper motor is a new 2-phase hi-torque hybrid stepper motor. Widely used in CNC router machines, CNC lasers, CNC plasma cutting machines, etc.



Tips: 85BYGH450A & 86BYGH450A 2 phase hybrid stepper motors have two kinds, 14mm without keyway shaft and 12.7mm with keyway shaft, please tell me which kinds is your need. The default shaft is 12.7mm with keyway. As to 12.7mm diameter shaft stepper motors, keyway can be taken down if you don’t use it.


1.Genaral Specification of 86mm hybrid stepper motor:



Item Specifications
Step Angle 1.8°
Temperature Rise 80℃max
Ambient Temperature -20℃~+50
Insulation Resistance 100 MΩ Min. ,500VDC
Dielectric Strength 500VAC for 1minute
Shaft Radial Play 0.02Max. (450g-load)
Shaft Axial Play 0.08Max. (450g-load)
Max. radial force 28N (20mm from the flange)
Max. axial force 10N





2.Electrical Specification of Nema34 stepper motors:

Model No.

Step Angle

Motor Length

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding Torque

# of Leads

Detent Torque

Rotor Inertia

Mass

  ( °) (L)mm A Ω mH N.m No. Kg.cm g.cm85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 0 Kg
JK86HS68-5904 1.8 67 5.9 0.28 1.7 3.4 4 0.8 1000 1.7
JK86HS68-2808 1.8 67 2.8 1.4 3.9 3.4 8 0.8 1000 1.7
JK86HS78-5504 1.8 78 5.5 0.46 4.0 4.6 4 1.2 1400 2.3
JK86HS78-4208 1.8 78 4.2 0.75 3.4 4.6 8 1.2 1400 2.3
JK86HS97-4504 1.8 97 4.5 0.66 3.0 5.8 4 1.7 2100 3.0
JK86HS97-4008 1.8 97 4.0 0.98 4.1 4.7 8 1.7 2100 3.0
JK86HS100-6004 1.8 100 6.0 0.36 2.8 7.0 4 1.9 2200 3.1
JK86HS115-6004 1.8 115 6.0 0.6 6.5 8.7 4 2.4 2700 3.8
JK86HS115-4208 1.8 115 4.2 0.9 6.0 8.7 8 2.4 2700 3.8
JK86HS126-6004 1.8 126 6.0 0.58 6.5 6.3 4 2.9 3200 4.5
JK86HS155-6004 1.8 155 6.0 0.68 9.0 13.0 4 3.6 4000 5.4
JK86HS155-4208 1.8 155 4.2 1.25 8.0 12.2 8 3.6 4000 5.4

Above only for representative products, products of special request can be made according to the customer request.



3.Drawing of JK86HS78 stepper motor:
85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 1

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 2



4. The motor with driver kit : JK86HS78 + DM860H

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 3

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 4



5.Produce equipment:

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 5

6.Production Process:
85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 6

7.Advantages of hybrid Step Motor:



The motor is simple in construction, reliable.
At the standstill condition, the motor has full torque.
The motors are less costly.
They require little maintenance.
The stepper motor has an excellent and accurate starting, stopping and reversing response.

   8.Applications of electric motor:

  • As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
  • They are used in numeric control of machine tools.
  • Used in tape drives, floppy disc drives, printers and electric watches.
  • The stepper motor also use in X-Y plotter and robotics.
  • It has wide application in textile industries and integrated circuit fabrications.
  • The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
  • These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
  • Stepper motors of microwatts are used in the wrist watches.
  • In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 7

85BYGH450A 78MM 45kg.Cm 2 Phase NEMA34  Hybrid Stepper Motor With 4 Leads 8
