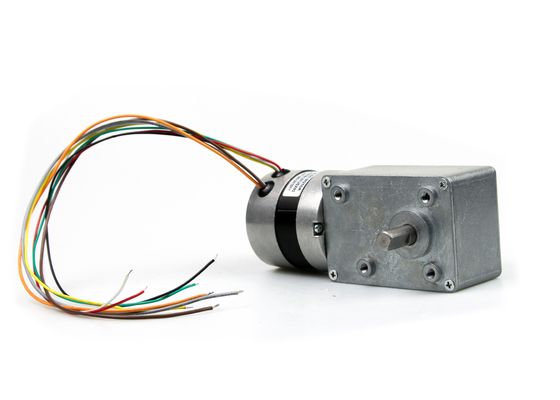

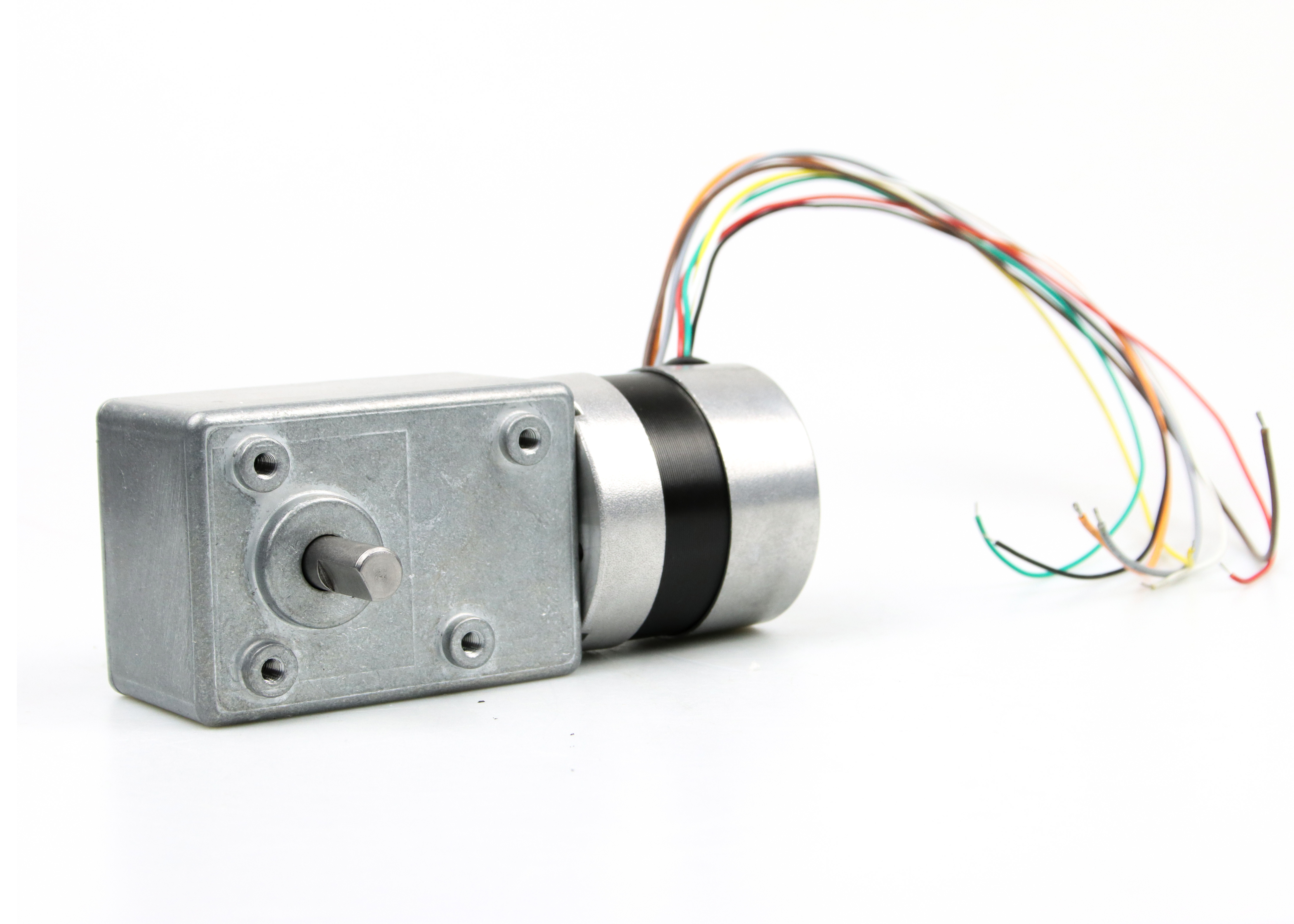

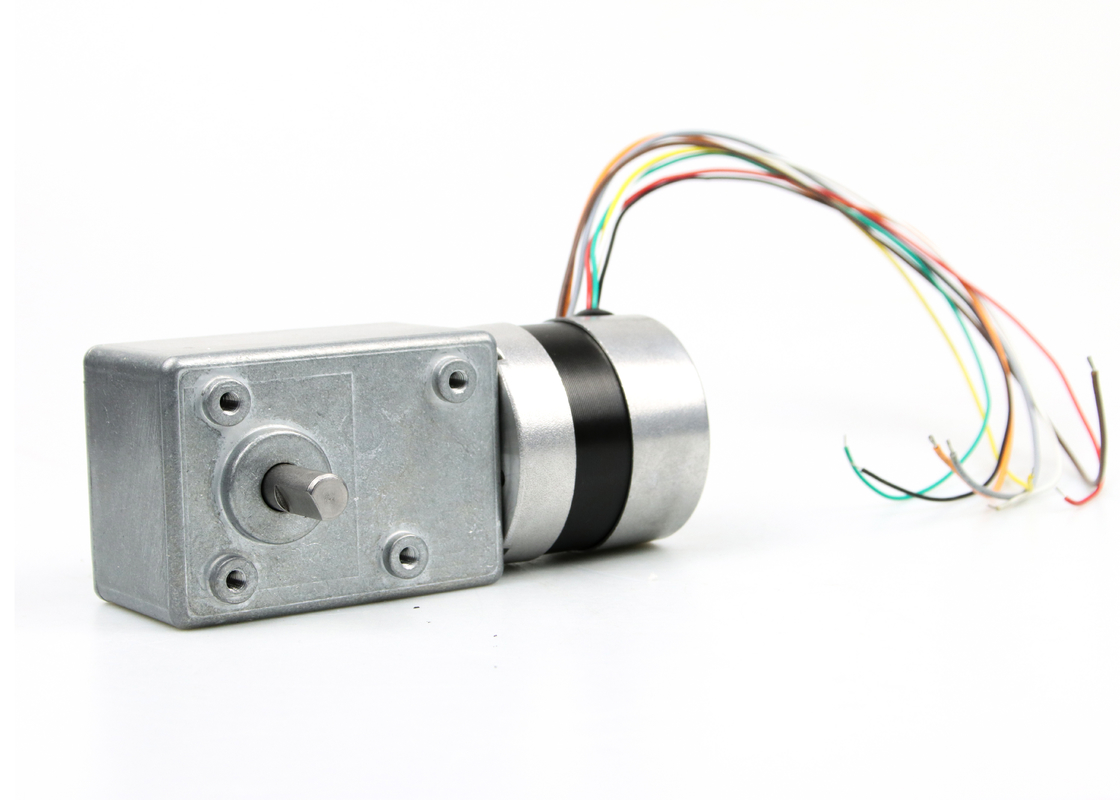

24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer

24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer

24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer
video
24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer
Product Details:
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Jkongmotor
Certification: CE, ROHS,ISO9001
Model Number: JK57BL01JSX92
Payment & Shipping Terms:
Minimum Order Quantity: 3-10pcs
Price: US $28.8 - 56.8 / Unit
Packaging Details: with export carton . big quantity with pallet
Delivery Time: For samples , 7-15 days / For batch , 15-25days
Payment Terms: T/T , paypal , Western Union, L/C
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
Phase: 3-phase Poles: 8
Voltage Range: 24V Keywords: Bldc Gear Motor
Color: Silver & Black Output Power: 28.8W
Rated Speed: 27rpm Speed Ratio: 92:1
Rated Torque: 0.11N.m
High Light:

375RPM electric motor gear reducer

,

bldc electric motor gear reducer

,

bldc electric motor gear reduction box

24V 28.8w 92:1 2500rpm JK57BLS High Torque Turbo bldc Geared Motor 2-375RPM Electric Gearbox Reducer



With self-locking, in the absence of electric motors,The output shaft is not to move.
All metal gears,sturdy and durable, effectively protect the turbo worm gear box motor body to improve service life.
Model: JK57BL01JSX92
Material: Metal
Rated Voltage: 12V,24VDC
Speed: Many
Package Included: 1 x Gear Motor



Genaral Specification of bldc motor:



Item Specification
Winding type Star
Hall effect angle 120 degree electrical angle
Shaft run out 0.025mm
Radial play 0.02mm@450g
End play 0.08mm@450g
Max.radial force 75N @20mm form the flange
Max.axial force 15N
Insulation class Class B
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩ Min.,500VDC



Specification of JK57BLS motor:



    Model
Specification Unit JK57BLS005 JK57BLS01 JK57BLS02 JK57BLS03 JK57BLS04
Number Of Phase Phase 3
Number Of Poles Poles 4
Rated Voltage VDC 36
Rated Speed Rpm 4000
Rated Torque N.m 0.055 0.11 0.22 0.33 0.44
Rated Current Amps 1.2 2 3.6 5.3 6.8
Rated Power W 23 46 92 138 184
Peak Torque N.m 0.16 0.33 0.66 1 1.32
Peak Current Amps 3.5 6.8 11.5 15.5 20.5
Back E.M.F V/Krpm 7.8 7.7 7.4 7.3 7.1
Torque Constant N.m/A 0.074 0.073 0.07 0.07 0.068
Rotor Inertia g.c㎡ 30 75 119 173 230
Body Length mm 37 47 67 87 107
Weight Kg 0.33 0.44 0.75 1 1.25
Sensor Honeywell
Insulation Class B
Degree of Protection IP30
Storage Temperature -25~+70℃
Operating Temperature -15~+50℃
Working Humidity ≤85% RH
Working Environment Outdoor (no direct sunlight), no corrosive gas, no flammable gas, no oil mist, no dust
Altitude 1000 meters or less

Products of special request can be made according to the customer request !



Details of Brushless dc motor:



24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer 0





Drawing of 57BLS motor:

24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer 1
24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer 2


24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer 3

24V 2500rpm High Torque 375RPM Electric Motor Gear Reducer 424V 2500rpm High Torque 375RPM Electric Motor Gear Reducer 524V 2500rpm High Torque 375RPM Electric Motor Gear Reducer 624V 2500rpm High Torque 375RPM Electric Motor Gear Reducer 7

FAQ(Q=Question, A=Answer)

Q: What's your main products?
A:We currently produce Stepper motors, Brushless Dc Motors, Brushed Dc Motors, Spindle motor, Ac Motors and drivers etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.



Q:How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed life time and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.



Q: Do you have customized service for your standard motors?
A:Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape.



Q:Can I have samples for testing first?
A:Yes, definitely you can. After confirmed the needed motor specs, we will quote and provide a proforma invoice for samples.



Q:How do you make sure motor quality?
A:We have our own inspection procedures: for incoming materials, we have signed sample and drawing to make sure qualified incoming materials; for production process, we have tour inspection in the process and final inspection to make sure qualified products before shipping.
